PCI-2513 User's Guide
Installing the PCI-2513
13
68
34
1
35
34
1
68
35

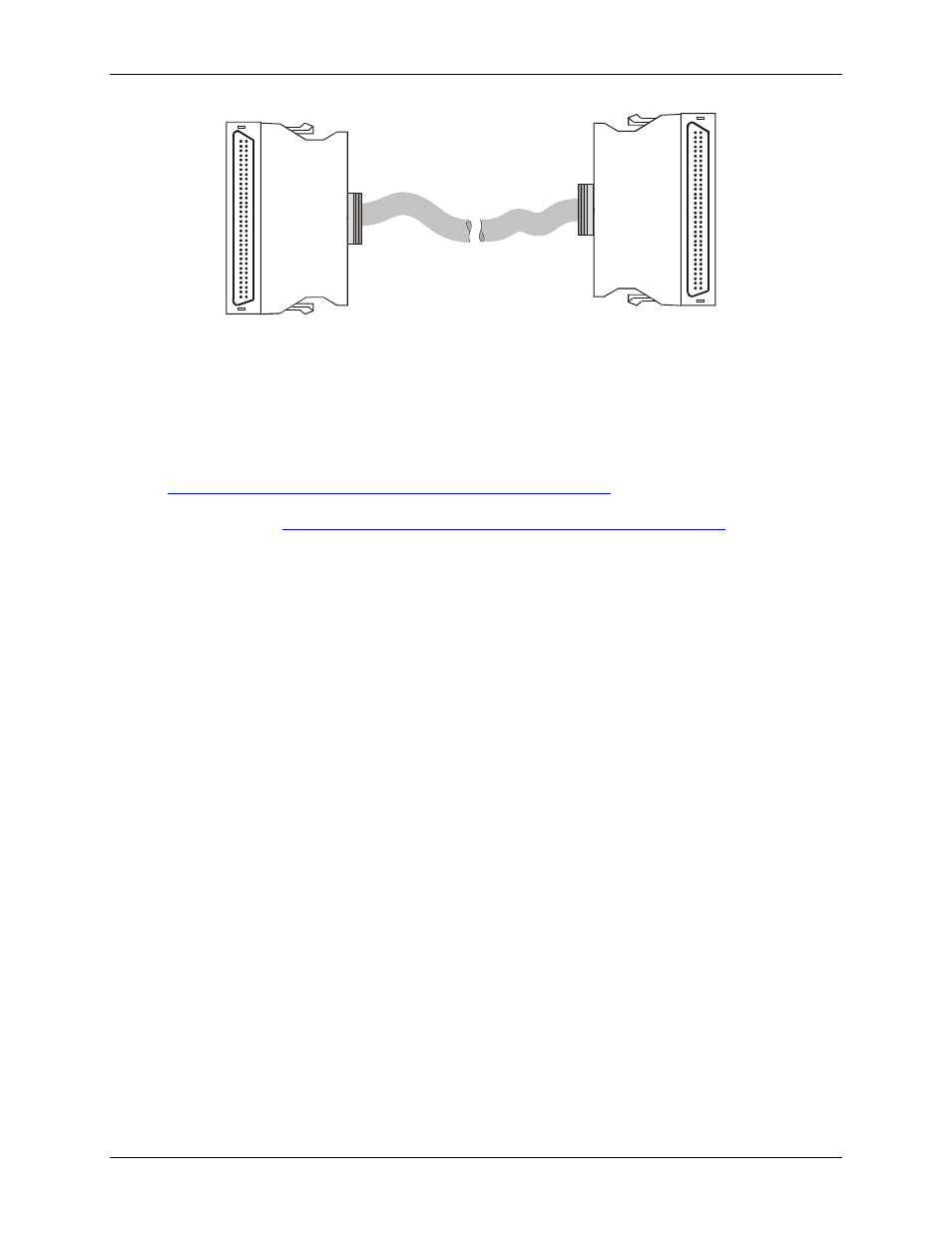

Figure 2-2. CA-68-3S and CA-68-6S cable
Field wiring and signal termination
You can use the following MCC screw terminal boards to terminate field signals and route them into the PCI-
2513 board using the CA-68-3R, CA-68-3S, or CA-68-6S cable:
TB-100
: Termination board with screw terminals. Details on this product are available on our web site at
RM-TB-100
: 19-inch rack mount kit for the TB-100 termination board. Details on this product are available
on our web site at
