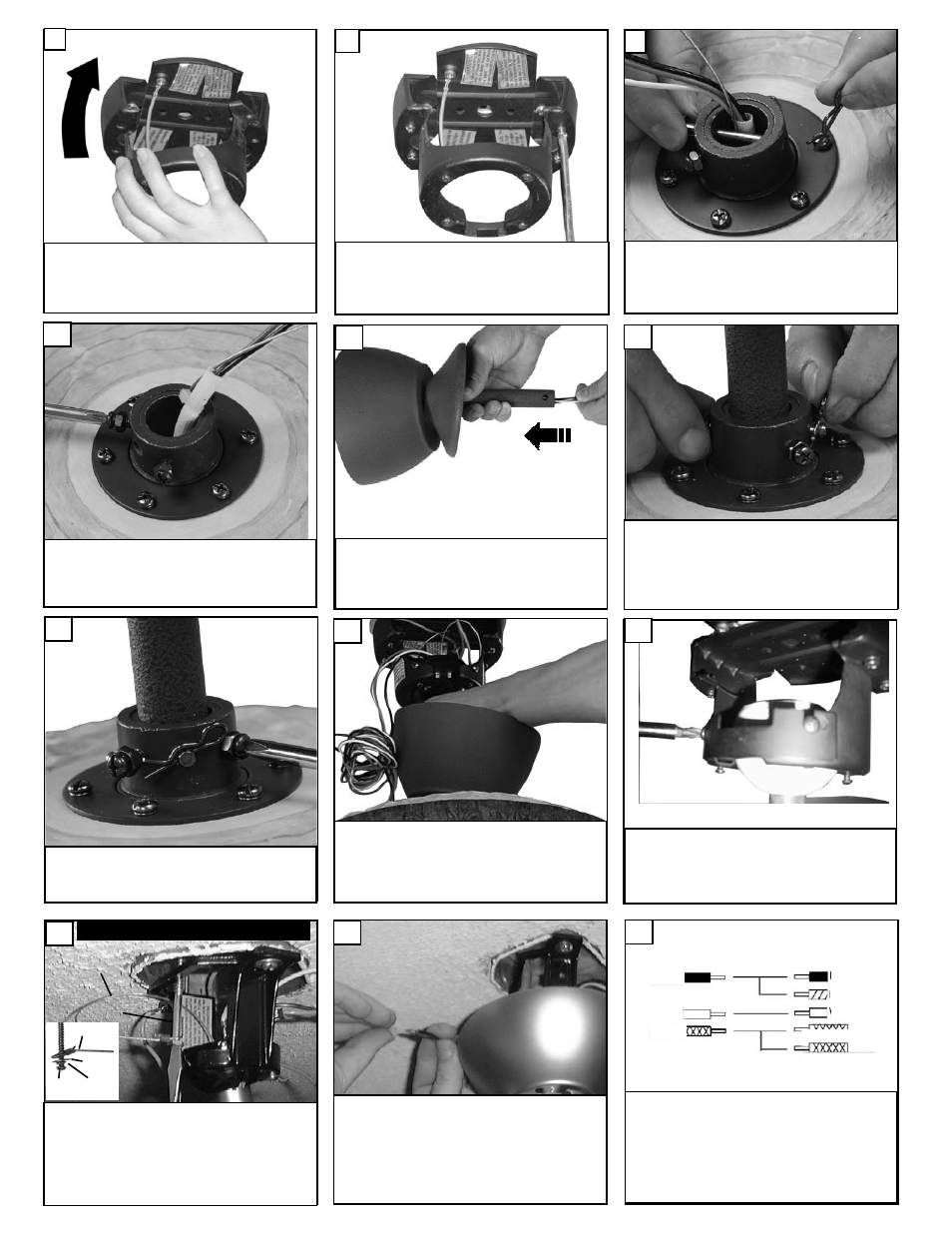

Insert downrod into yoke. Align hole
in the downrod with the hole in the
yoke. Insert cross pin through yoke
and downrod. Insert cotter pin in to
cross pin to secure.
Tighten yoke set screws securely and
evenly.
Loosen the 2 set screws in yoke for
downrod to slip into yoke.
Remove keeper from pin and then
remove pin. Replace keeper in pin
and save.
9
10
14
12
13
Place canopy and yoke cover on
downrod. Thread leadwires through
the downrod.
11
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
17
Hang assembled fan from the mounting bracket
installed to ceiling in previous step. Make sure
the fan is hanging straight. Rotate fan until the
tab on the Mounting bracket engages the slot
on the Downrod Ball. This must be done to
prevent the fan body from rotating when the
blades are in motion.
Re-install safety bar removed in
step. 3 by placing safety bar on
screws, sliding into place, and tight-
ening the 2 screws.
15
Lift mounting neck to mounting Plate
and align screws.
7
Secure mounting neck to the mount-
ing plate with four screws to become
a complete mounting bracket.
8
Fan and light kit combinations over 35 lbs,
in both flush and downrod mode the safety
cable must be installed into the house struc-
ture beams using the 3” lag screws,washers,
and lock washers. provided. Make sure that
when the safety cable is fully extended the
lead wires are longer than the cable and no
stress is placed on the lead wires.
16
Safety cable installation
Safety Cable
Lag Screw
safety
cable
3” lag
screw
lock
washer
washer
For pullchain controls, follow diagram above.
Make sure that all exposed wiring is secured
inside wire nuts. Note: Wires from house may
vary in color and may not include ground wire.
After wiring is complete, gently push wires into
junction box with wire nuts pointing upward.
Refer to point 3 of safety tips.
18
House
Fan
Black
White
Green
Black
White
Green(downrod)
Green(Bracket)
Blue
