7300, 8700 SERIES
INSTALLATION INSTRUCTIONS
THESE INSTRUCTIONS MUST BE
LEFT WITH HOMEOWNER
KITCHEN DECK FAUCETS
Single-Handle - for Eight-Inch Centers
MT170
CAUTION:
CLIP
EAR
Equipped with Flow-Rator® Aerator or Swing-N-Spray Aerator
Always turn water off before disassembling the valve. Open valve
handle to relieve water pressure and insure that complete water shut-
off has been accomplished.
Before turning water on during either rough-in or trim-out, make sure that cartridge retainer clip is in place. The
cartridge and retainer clip were properly installed and tested before leaving the factory. Although it is unlikely,
it is nevertheless possible that through the handling of the valve by any number of persons the retainer clip
may not be properly installed. This should be carefully checked at time of rough-in and trim-out. If the retainer
clip is not properly installed, water pressure could force the cartridge out of the casting. Personal injury or water
damage to the premises could result.
Complies with ASME A112.18.1M and CSA B125

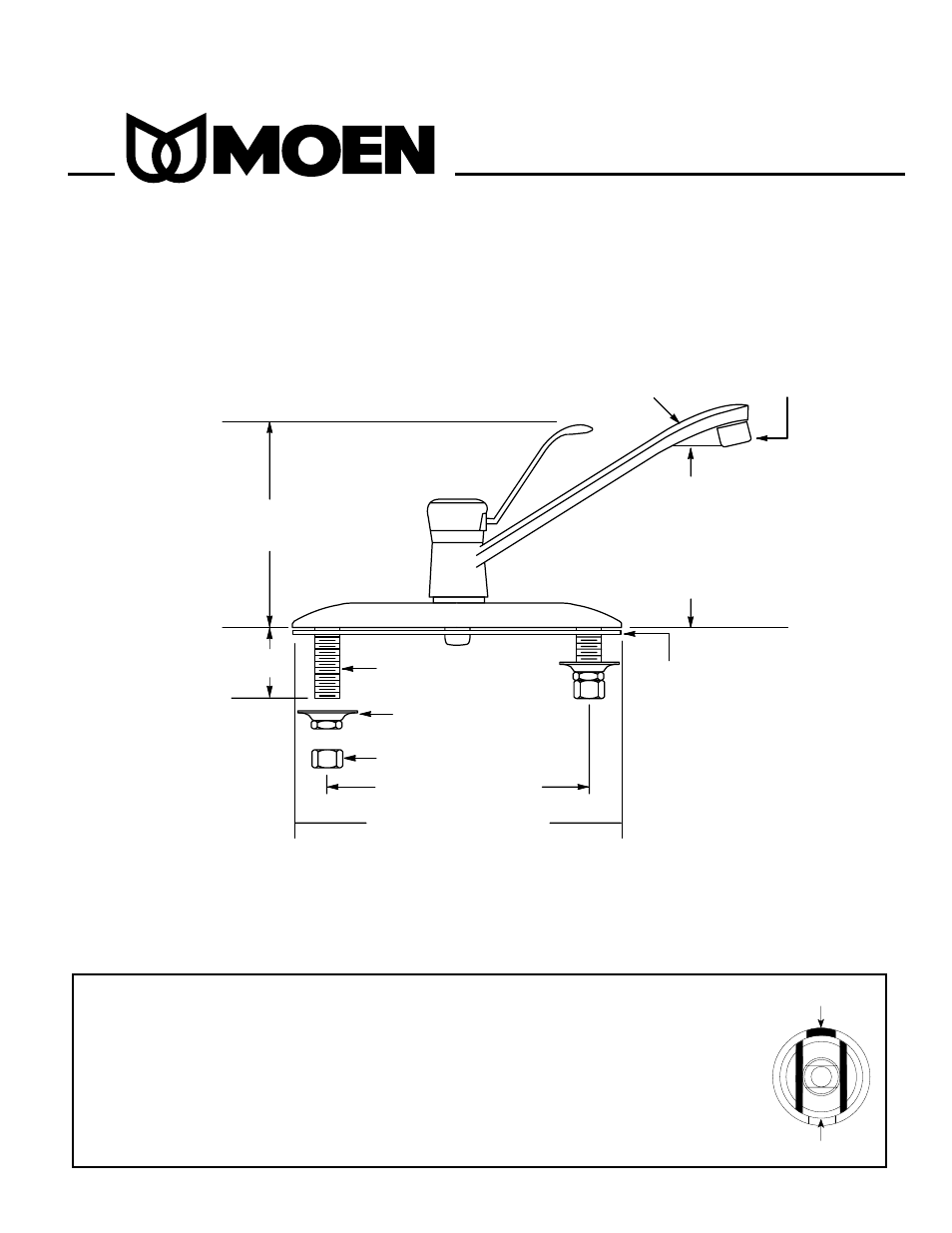

Measurements
"FLOW-RATOR"
AERATOR
9" (229mm)
SPOUT
7-1/2" (191mm)
NOMINAL
OPEN POSITION
1/2" STRAIGHT
PIPE THREAD
MOUNTING
NUT/WASHER
TAILPIECE NUT
FOR 8" (203mm) CENTERS
5-3/8" (137mm)
NOMINAL
(9" SPOUT)
7-1/8" (181mm)
NOMINAL
(12" SPOUT)
DECK ESCUTCHEON
10" (254mm) X 2" (51mm) WIDE
(DECK GASKET IS ONLY
USED WITH DECORATOR MODELS)
2-1/8"
(54mm)
DECK
GASKET
®
