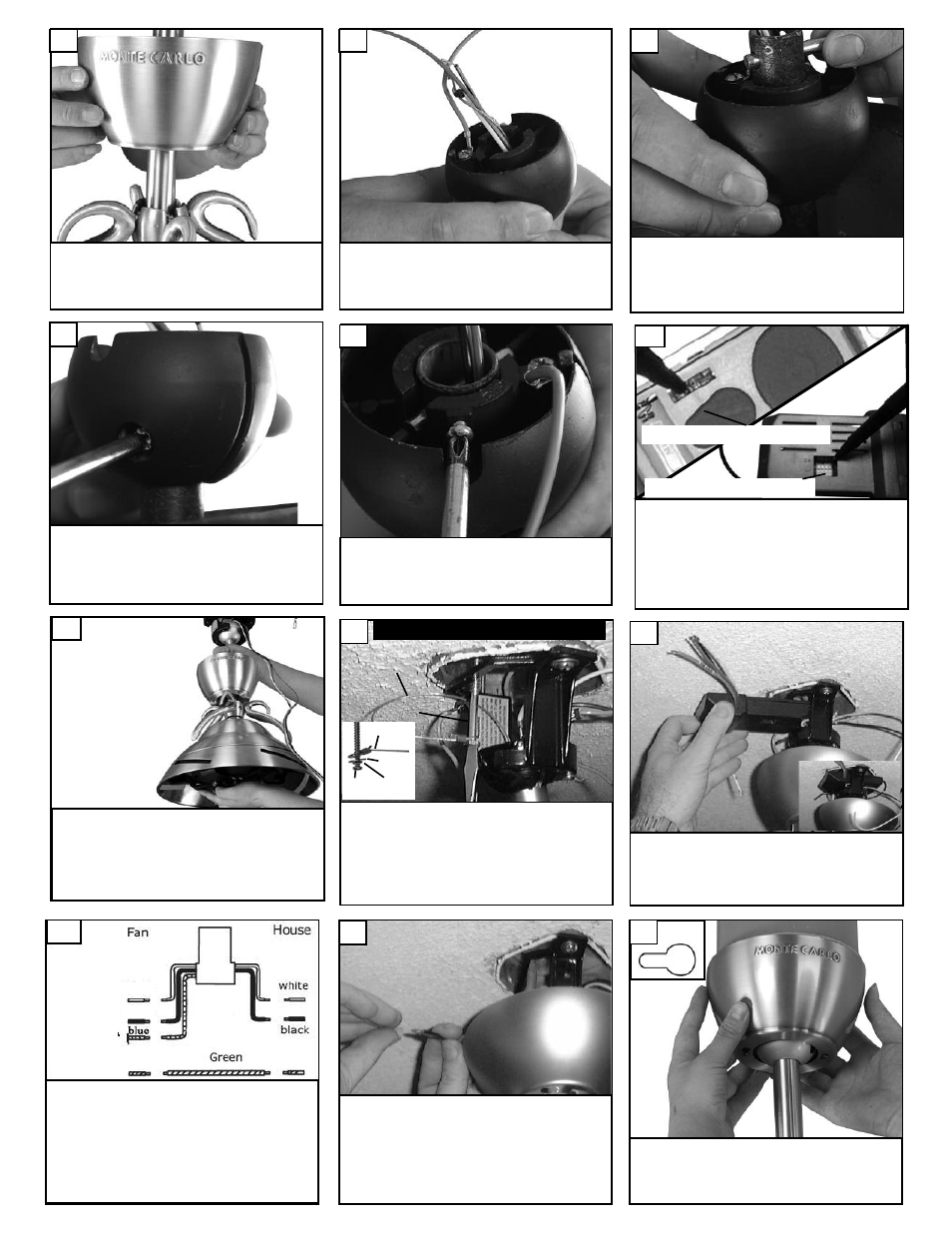

Place ball on downrod. Replace pin

removed earlier and pull ball up so that

the pin fits in the notches in the ball.

21

Tighten set screw to hold ball in

place.

22

Raise fan with downrod assembled to

the ceiling bracket and hang fan

assembly. Be sure to rotate the

downrod ball so that the notch in the

bracket engages the slot in the ball.

25

Set dip switches on the Remote Transmitter and Remote

Receiver to the same settings. This must be done so the

units will communcate properly. If you have other fans you

can set to control from one transmitter by setting both

receivers the same as the transmitter. If you have more

than one fan with remote. You can set the dip switches to

different positiosns to have seperate control.

Remote Transmitter Dip swtiches

Remote Receiver Dip switches

24

Install remote receiver by sliding into opening in

the Mounting bracket. Make sure that the dip

switches on the Transmitter and the Receiver

are set to the same position. See Fig 44 for

remote operation

27

Fan and light kit combinations over 35 lbs,

in both flush and downrod mode the safety

cable must be installed into the house struc-

ture beams using the 3” lag screws,washers,

and lock washers. provided. Make sure that

when the safety cable is fully extended the

lead wires are longer than the cable and no

stress is placed on the lead wires.

26

Safety cable installation

Safety Cable

Lag Screw

safety

cable

3” lag

screw

lock

washer

washer

Make wire connections to power source using

wire nuts provided. Make sure that no filiments

are outside of the wirenut. After making the

wire connections, the wires should be spread

apart with the grounded conductor and the

equipment-grounding conductor on one side of

the outlet box and ungrounded conductor on

the other side of the outlet box.

29

Lift canopy to ceiling aligning the key hole slots

with the screws on the bottom of the mounting

bracket. Rotate the canopy counter clockwise

to lock in place. Tighten the screws to secure

the canopy. See inset for keyhole shape

30

Make wiring connections as indicated above.

White from fan to white from remote marked

N. Blue from fan to blue from remote marked

light. Black from fan to Black from remote

marked L. White from house to white from

remote marked AC N . Black from house to

Black from remote marked AC L. Connect all

green ground wires to Ground wire from

House.

white

black

28

Install canopy onto downrod.

19

Thread leadwires and safety cable

through ball.

20

Tighten set screw to hold ball in

place.
