BLG SERIES
BOTTOM MOUNTED LOW TEMP GLASS DOOR MERCHANDISERS
TECHNICAL SPECIFICATIONS
LISTINGS HOOKUP
BID SPECIFICATIONS
Item no. BLG-_______________
Provide__________( ) Bottom Mounted
Low Temp Glass Door Merchandiser(s),
Master-Bilt model no. BLG-______.
Merchandiser will feature textured fin-
ish on interior and exterior and will be
equipped with an electronically controlled
monitoring system. Energy efficient LED
interior lighting will be standard. It will
245-6/13-web
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
BLG-27HD: Via plug in, 9 foot long flexible
three wire 14/3 cord with molded plug.
Other models: Via plug in, 9 foot long
flexible four wire 208-230v 14/4 cord with
neutral and ground wires and molded plug.

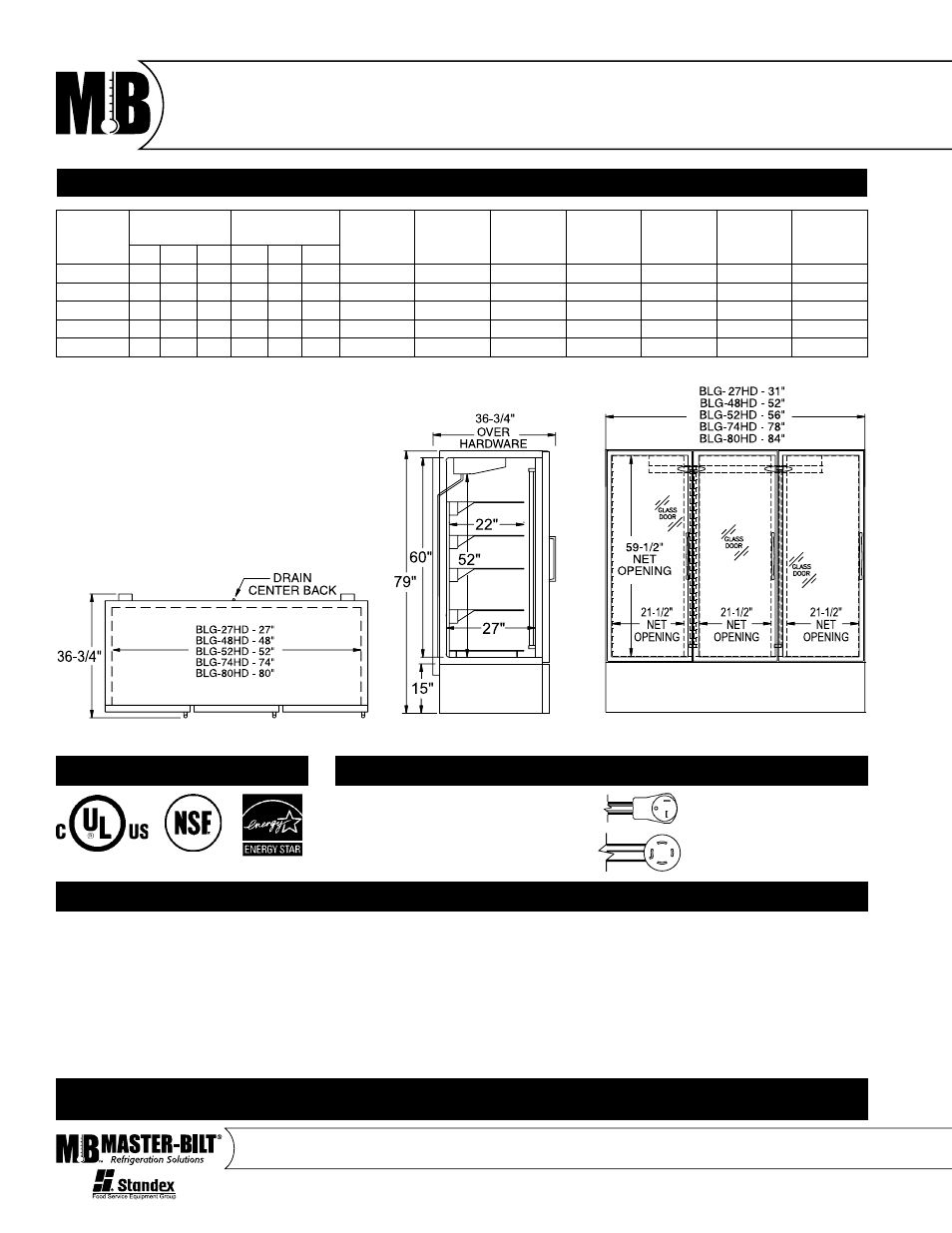

PLAN VIEW SIDE VIEW ELEVATION VIEW
also be provided with adjustable torsion
bar hinges, heated frames and door open-
ings, top mounted low profile interior fan
housing, automatic condensate evapora-
tor, five white epoxy-coated shelves (four
cantilever and one bottom) with price tag
molding per door, independent on/off
light switch, black door rails and handles
and triple pane glass. The refrigeration system is to be bottom
mounted, self-contained and use R-404A re-
frigerant. The temperature range will be
5° to -15°F (-15° to -26°C).
Merchandiser to have standard limited
three year parts and labor with additional
two year coverage on compressor part.
Merchandiser to be UL, C-UL and NSF
listed as well as ENERGY STAR qualified.
NEMA 5-20P (BLG-27HD)
NEMA L14-20P (BLG-48HD,
-52HD, -74HD and -80HD)
MODEL
DIMENSIONS
(in.)
DIMENSIONS
(mm)
VOLTS* AMPS UNIT H.P.
NO. OF
DOORS
CAP.
CU. FT.
SHIP
CU. FT.
SHIP WT.
(LB/KG) L D H L D H
BLG-27HD 31 36 3 /
4
79 787 933 2007 115 11.1 3/4 1 27.5 79.0 630/286
BLG-48HD 52 36 3 /
4
79 1321 933 2007 208-230 8.8 1 1 /
2
2 49.0 117.0 880/400
BLG-52HD 56 36 3 /
4
79 1422 933 2007 208-230 8.8 1 1 /
2
2 53.0 128.0 890/405
BLG-74HD 78 36 3 /
4
79 1981 933 2007 208-230 10.0 2 3 75.5 168.0 1105/502
BLG-80HD 84 36 3 /
4
79 2134 933 2007 208-230 10.0 2 3 81.6 185.0 1165/530
*BLG models (except BLG-27HD) operate on a minimum of 208 volts. A voltage boosting transformer (part no. 39-01087) must be used
when the supply voltage is less than 208 volts.
Note: 208-230/60/1 also requires neutral and safety ground wire.
