11
EN
INTRODUCTION
PREPARATION
WATCHING TV
OPTIONAL SETTING
TROUBLESHOOTING
INFORMATION

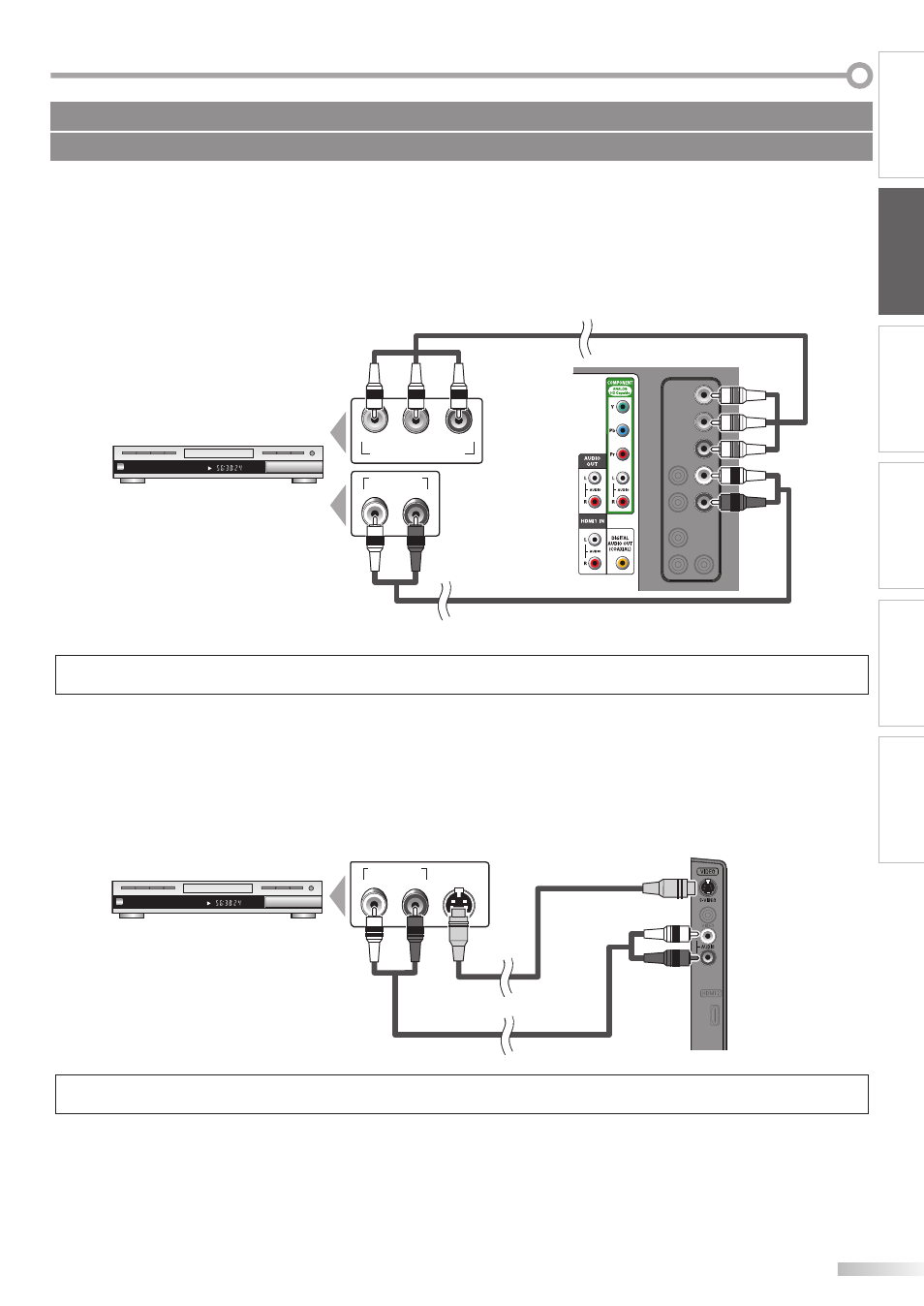

[Component Video Connection]
RCA component video connection offers better picture quality for video devices connected to the unit.
If you connect to the unit’s COMPONENT video input jack, connect an RCA audio cable to the audio L/R jack of
COMPONENT accordingly.
e.g.)
COMPONENT VIDEO OUT
Pr/Cr Pb/Cb Y
AUDIO OUT
R L
CHAPTER 15
REPEAT A-B TITLE 5
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals.
[S-video Connection]
S-video connection offers good picture quality for video devices connected to the unit.
If you connect to the unit’s S-video input jack, connect an RCA audio cable to the audio L/R jack of VIDEO accordingly.
e.g.)
CHAPTER 15
REPEAT A-B TITLE 5
AUDIO OUT
R L
S-VIDEO
OUT
Note:
• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.
(red) (blue) (green)
BD/DVD recorder with
the component video output jack
RCA component video cable
RCA audio cable
rear of this unit
(green)
(blue)
(red)
BD/DVD recorder with
the S-video output jack
S-video cable
RCA audio cable
side of this unit
No supplied cables are used in this connection:
Please purchase the necessary cables at your local store.
