3 jumper settings, 1 master/slave configuration, 2 cable-select option – Maxtor DIAMONDMAX 21 PATA STM3300620A User Manual

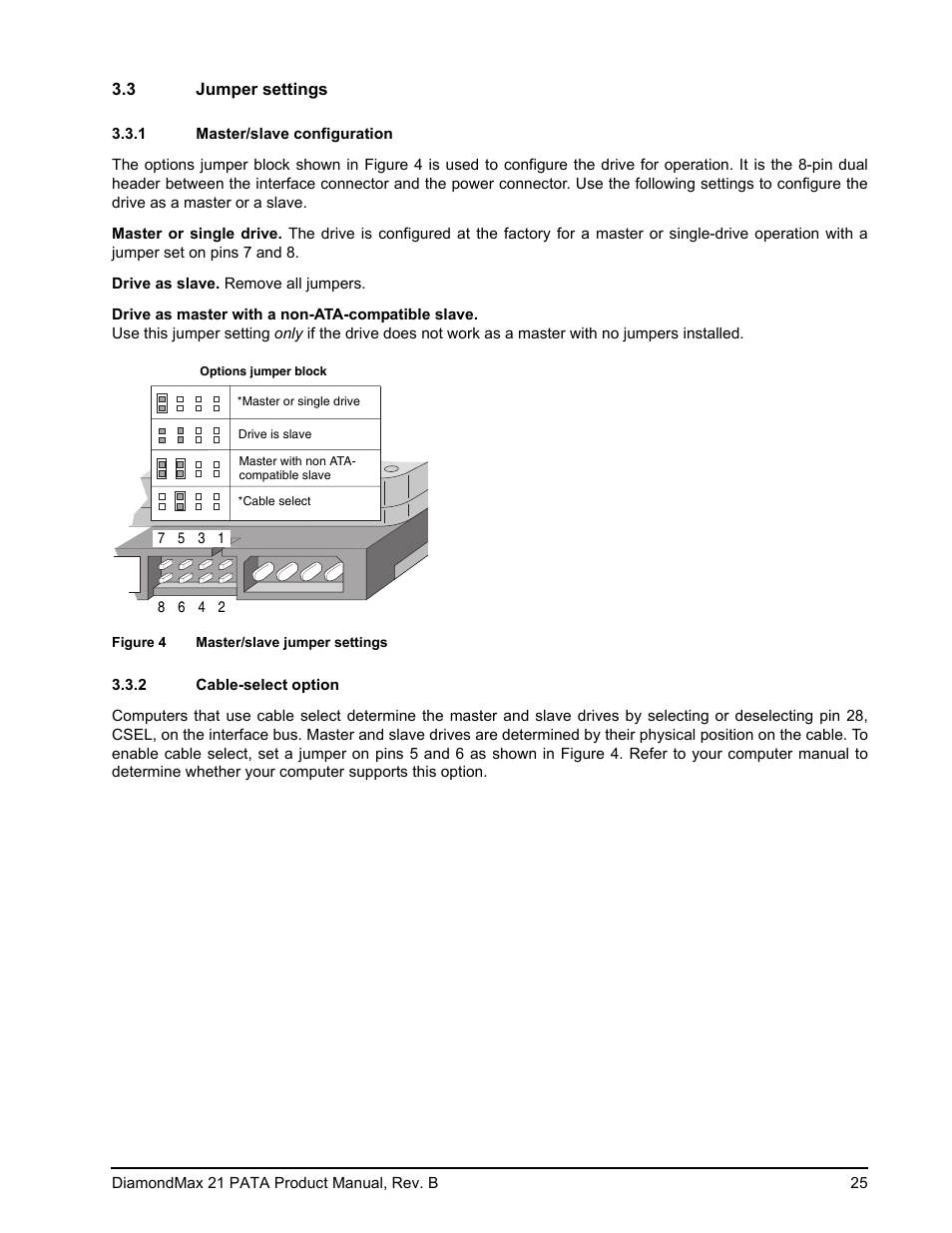

Page 31: Jumper settings 3.3.1, Master/slave configuration, Cable-select option, Figure 4, Master/slave jumper settings

Text mode
Original mode

3 jumper settings, 1 master/slave configuration, 2 cable-select option | Jumper settings 3.3.1, Master/slave configuration, Cable-select option, Figure 4, Master/slave jumper settings | Maxtor DIAMONDMAX 21 PATA STM3300620A User Manual | Page 31 / 50
