1 typical current profile, 2 conducted noise, 3 voltage tolerance – Maxtor DIAMONDMAX 21 PATA STM3300620A User Manual

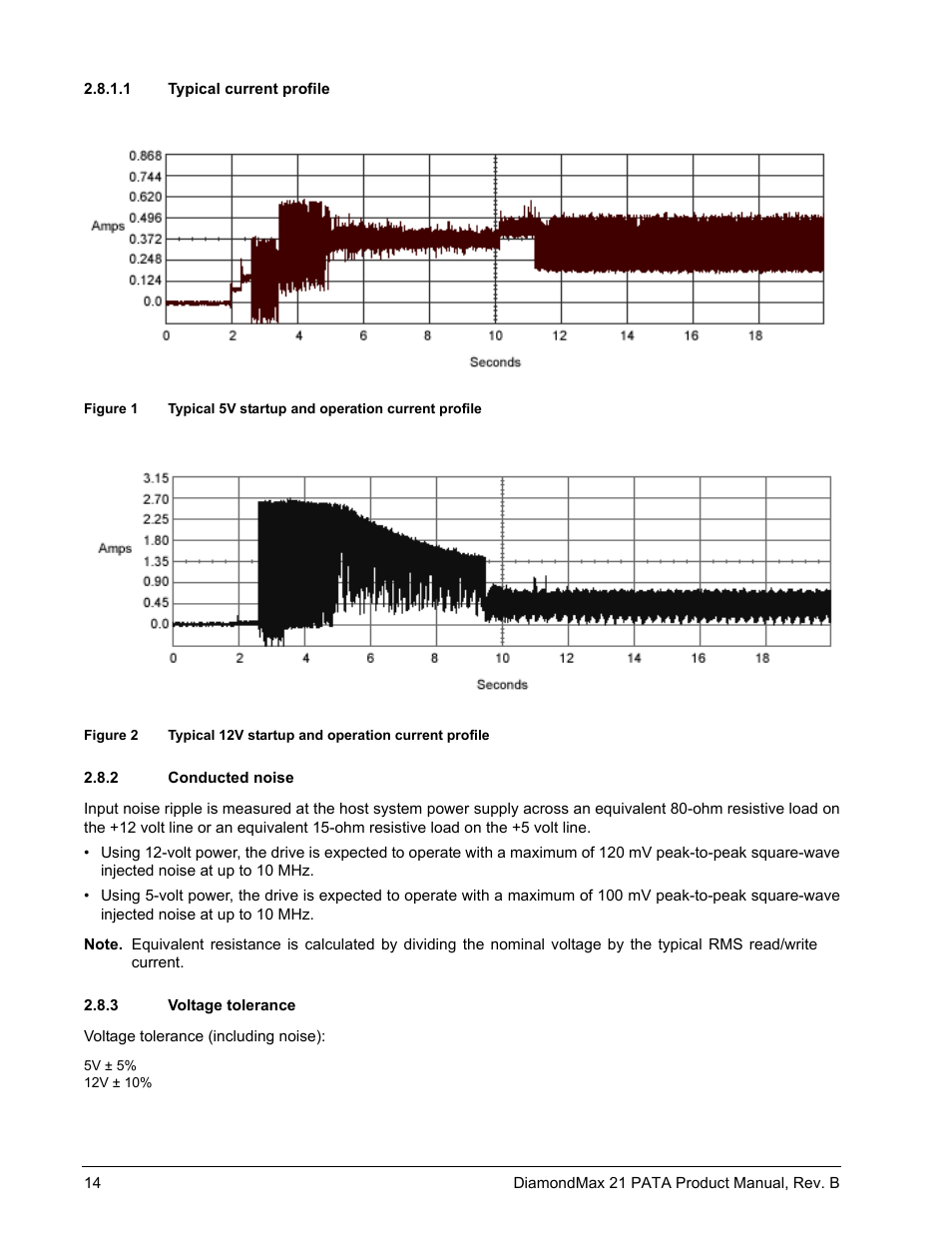

Page 20: Conducted noise, Voltage tolerance, Figure 1, Typical 5v startup and operation current profile, Figure 2, Typical 12v startup and operation current profile

Text mode
Original mode

1 typical current profile, 2 conducted noise, 3 voltage tolerance | Conducted noise, Voltage tolerance, Figure 1, Typical 5v startup and operation current profile, Figure 2, Typical 12v startup and operation current profile | Maxtor DIAMONDMAX 21 PATA STM3300620A User Manual | Page 20 / 50
