4

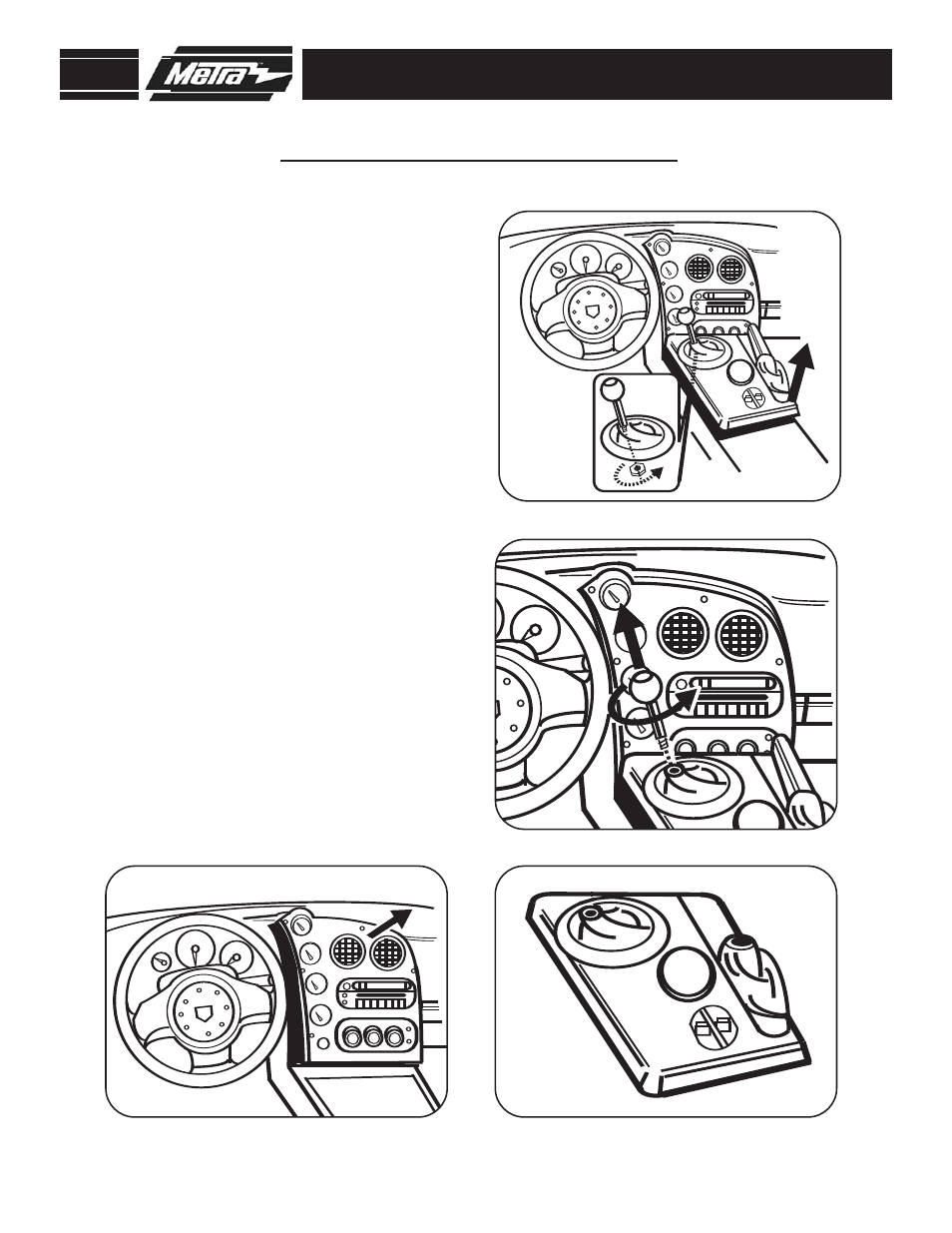

99-6503 DASH DISASSEMBLY
Disconnect the negative battery
terminal to prevent an accidental
short circuit. 1
Using a small flat blade screw driver,
pry up on center console trim panel.
(Be careful not to scratch the trim
panel) (Figure A) 2
DODGE VIPER 2003-2006
Loosen the shifter lock nut below
center console trim panel (Figure A)
and unscrew the shifter knob.
(Figure B) 3
Unplug electrical connectors and
remove center console trim panel.
(Figure C) 4
Remove (6) Allen screws from
radio/climate control trim panel and
(1) Phillips screw at the bottom of
the panel. 5
Unplug electrical connectors and
remove the panel. (Figure D) 6
Remove (4) screws securing the
radio. Disconnect and remove the
radio. 7
A
B
C D
