Page 6
EN-6

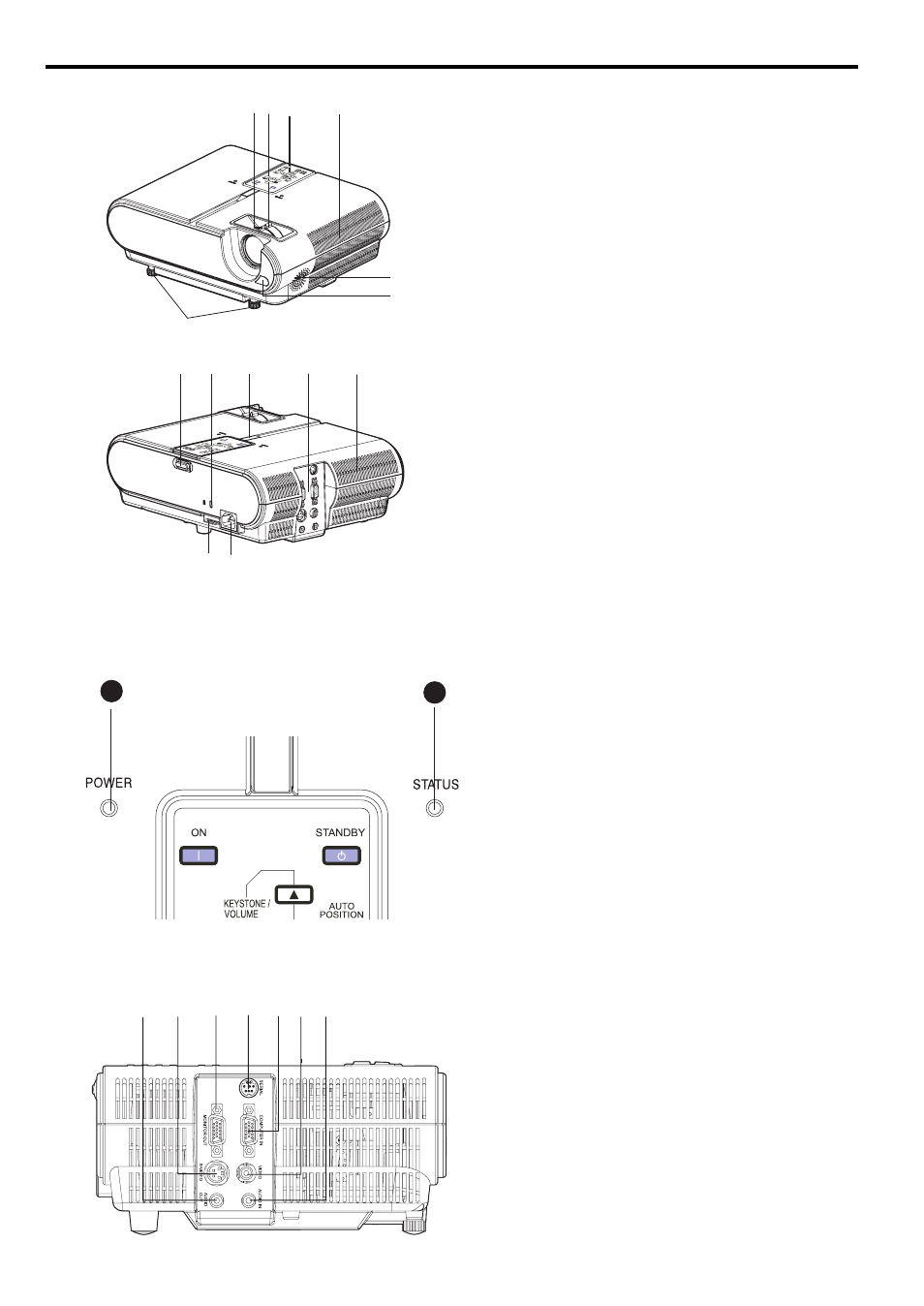

Overview
1
FOCUS ring
2
ZOOM ring
3
Remote control
4
Air inlet grille
5
Speaker
6
Remote control sensor (Front)
7
Adjustment feet (front)
8
Remote control lock button
9
Kensington Lock
10 Remote control sensor (Top)
11 Terminal board
12 Air outlet grille
13 Power jack
14 Security lock
Caution:
Do not replace the lamp immediately after using the pro-
jector because the lamp would be extremely hot and it
may cause burns.
Kensington Lock
This projector has a Kensington Security Standard con-
nector for use with Kensington MicroSaver Security Sys-
tem.
Refer to the information that came with the Kensington
System for instructions on how to use it to secure the pro-
jector. Please contact Kensington Technology Group
below.
Kensington Technology Group
2855 Campus Drive
San Mateo, CA 94403, U.S.A.
Phone: +1- (650)572-2700 Fax: +1- (650)572-9675
Indicator
1
POWER indicator
2
STATUS indicator
Terminal board
1
AUDIO OUT terminal (Mini jack)
2
S-VIDEO terminal)
3
MONITOR OUT terminal (Mini D-SUB 15-pin)
4
SERIAL (RS-232C) terminal
5
COMPUTER IN terminal (Mini D-SUB 15-pin)
6
VIDEO IN terminal
7
AUDIO IN terminal (Mini jack)
2
6
7
4
3
1
5
9
11
10
8
12
14 13
2
1
2
4
5
3
1
7
6
