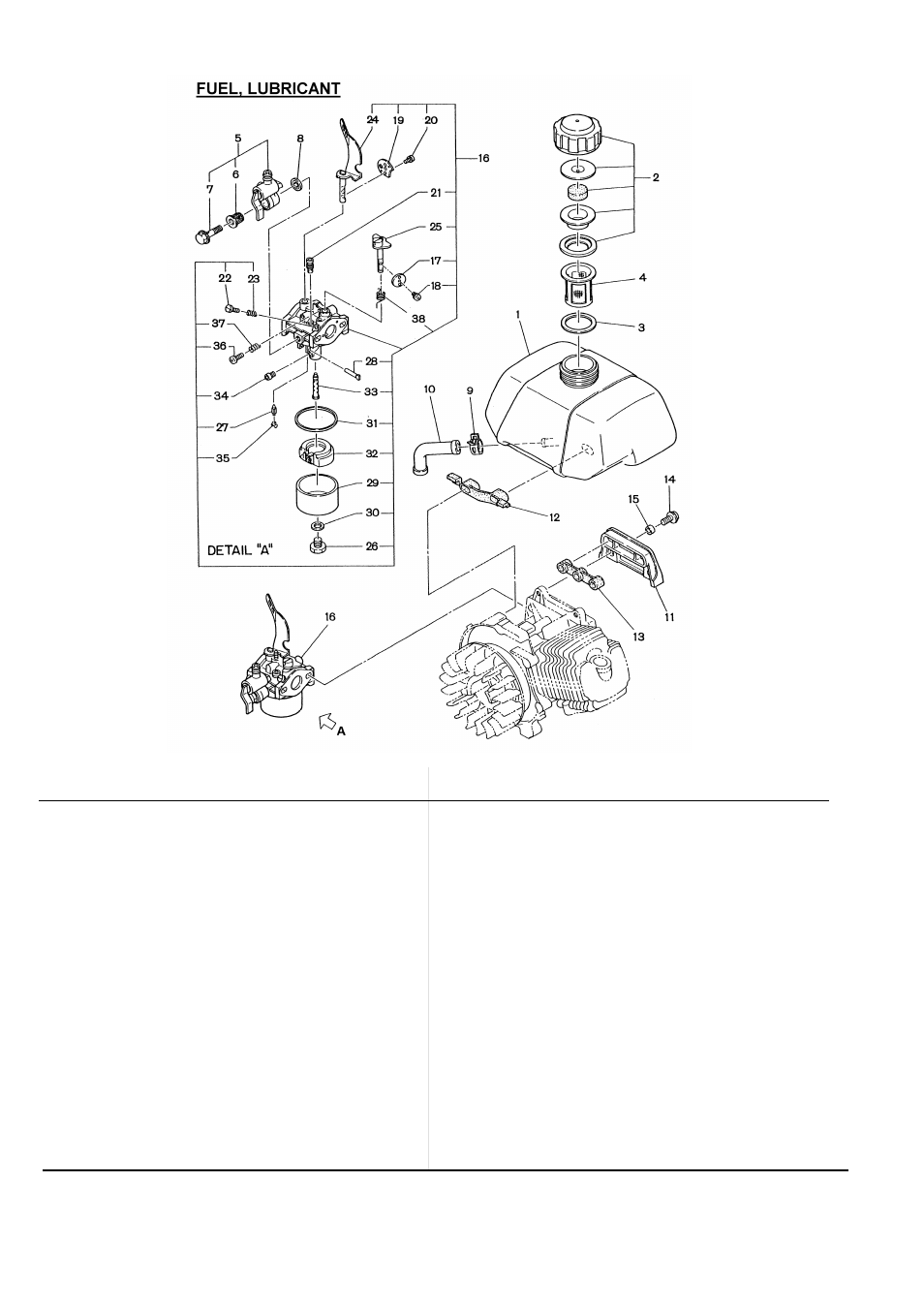

Item
Part
No.
No.
No.
Used
Description
A01
541-50011-40
1
Starter Rope
1
541-65012-00
1
Fuel Tank Com.
2
510-60130-01
1
Fuel Tank Cap Assy
3
551-65005-01
1
Packing
4
064-12799-90
1
Filter
5
541-60100-00
1
Strainer Cock Assy
(Includes Items 6 & 7)
6
541-65022-00
1
Strainer Filter
7
541-65021-00
1
Pipe Bolt
8
690-45005-00
1
Seal Washer
9
056-11399-82
1
Hose Clamp
10
541-65002-00
1
Fuel Hose
11
541-65003-00
1
Tank Bracket Com.
12
541-65035-00
1
Damper
13
541-65011-00
1
Damper
14
001-17051-40
2
Bolt Assy
15
023-00599-90
2
Spacer
16
541-60020-01
1
Carburetor Assy (Includes Items
17 - 38) (Old 541-60020-00)
17
230-62537-08
1
Throttle Valve
18 EY237-62451-08 1
Screw
19
230-62527-08
1
Choke Valve
20 EY237-62451-08 2
Screw
21
209-62421-08
1
Pilot Jet
22
213-62390-08
1
Adjuster
23 EY209-62445-08 1
Spring
24
541-60021-40
1
Choke Shaft Assy
25
541-60021-30
1
Throttle Shaft Assy
26 EY129-62351-08 1
Bolt
27
541-60023-10
1
Needle Assy
28 EY214-62515-08 1
Pin
29
230-62550-08
1
Float Chamber Body
30
209-62345-08
1
Insert Washer
31
230-62540-08
1
Packing
32
541-60022-10
1
Float Assy
33
541-60022-20
1
Main Nozzle
34
128-62400-08
1
Main Jet
35
230-62454-08
1
Clip
36 EY209-62352-08 1
Screw
37 EY209-62445-08 1
Spring
5 Model EW100R
