MTD 775r - Manual (Page 2)

Issued 9/03

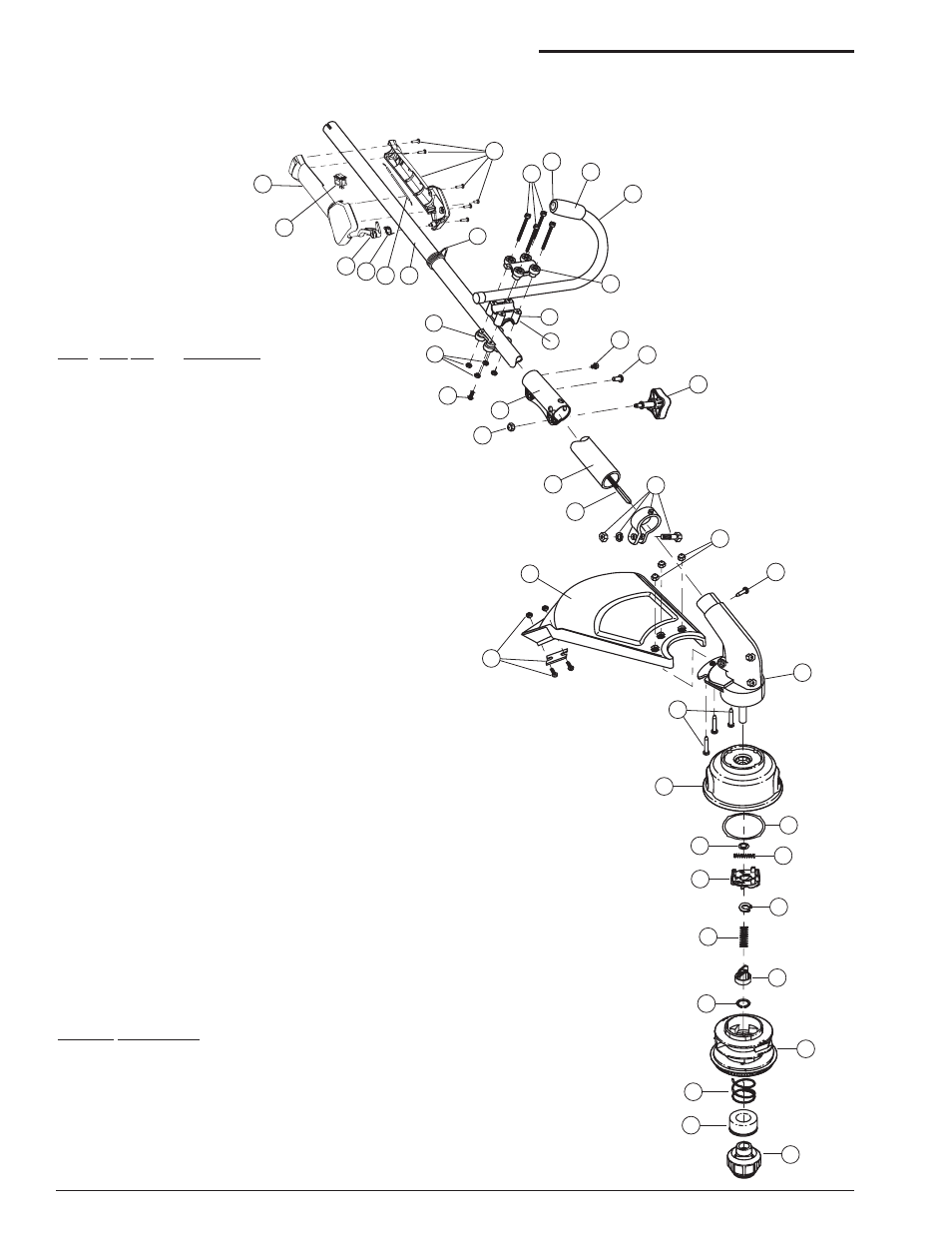

BOOM AND TRIMMER PARTS - MODEL 775r
2-CYCLE GAS TRIMMER
PPN- 41FD775A034
Item Part No. Description
1 753-04234 Throttle Housing & Trigger Assembly
(includes 2, 3 & 42)
3 791-182803 Throttle Trigger
2 791-182690 Throttle Trigger Spring
4 753-04405 Throttle Cable Assembly
5 753-04236 Upper Drive Shaft Housing Assembly
6 791-610327 Harness Clip
7 791-612021 Tube Closure
8 791-612831 Grip
9 791-180687 J-Handle Assembly (includes 7 & 8)
10 791-683295 Handle Bracket Assembly (includes 10-16)
11 791-181811 Screw
12 791-181812 Upper Handle Clamp
13 791-181813 Middle Handle Clamp
14 791-181814 Lower Handle Clamp
15 791-181815 Nut
16 791-145569 Anti-Rotation Screw
17 791-181616 Split Boom Coupler (includes 18-21)
18 791-182057 Screw
19 791-181617 Bolt
20 791-181618 Adjustment Knob
21 791-181886 Knob Retaining Nut
22 791-180340 Lower Drive Shaft Housing Assembly
23 791-181166 Lower Flexible Drive Shaft
24 791-153597 Lower Clamp Assembly (includes 21)
25 791-181566 Gearbox Assembly
26 791-180547 Shield Mounting Hardware
27 791-180548 Shield Assembly (includes 28)
28 791-180553 Blade Assembly
29 791-181457 Outer Spool Assembly (includes 30)
30 791-181458 Retainer
31 791-181561 Thrust Washer
32 791-181459 Small Spring
33 753-04257 Slider
34 791-181532 E-Clip
35 791-181531 Spring
36 791-181462 Plunger
37 791-181463 C-Clip
38 791-181464 Inner Reel
39 791-181465B Large Spring
40 791-181467 Foam Seal
41 791-181468B Bump Knob Assembly(includes 39 & 40)
42 791-182405 Switch
Optional Accessories
* 791-181472 Replacement Line, 0.80 Diameter
(Eight - 10 ft lengths)
* 791-181460B Reel and Line Assembly
* 791-682075B Shoulder Strap Assembly
* 791-147543 2-Cycle Oil
* Items Not Shown
1
19
20
21
22
1
9
12
6
11
16
17
18
5
3
2
25
23
27
24
31
21
26
28
30
33
4
34
36
35
40
37
39
41
29
42
26
32
38
8
7
14
15
13
10
