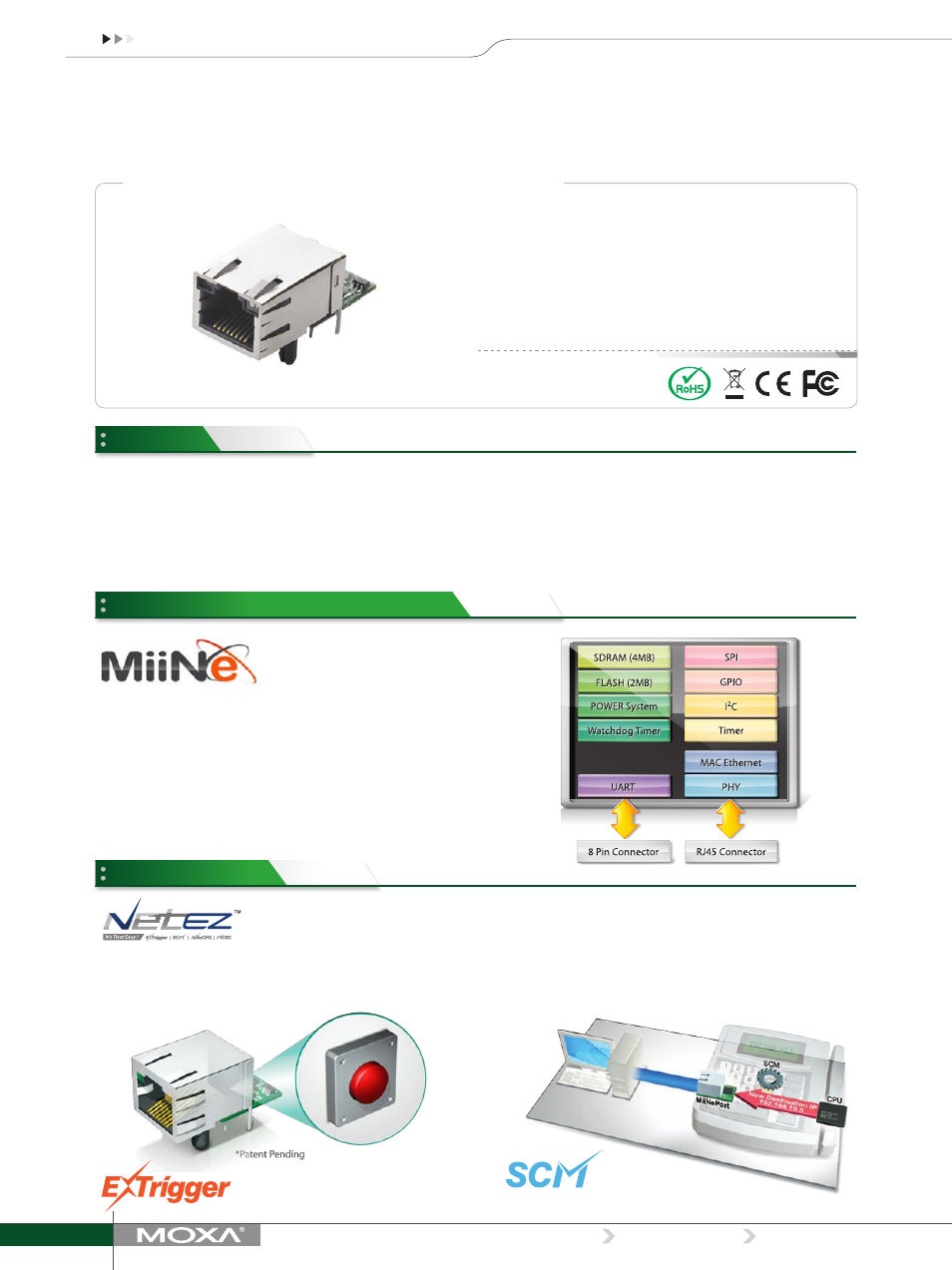

Serial-to-Ethernet Solutions
MiiNePort E1 Series
The MiiNe was created to provide
manufacturers with a competitive
embedded serial-to-Ethernet solution.
The MiiNePort E1, which uses the
MiiNe for its SoC, is one of the world’s tiniest embedded device
servers, and has the lowest power consumption of any similar product.
The MiiNe has the following features:
Designed for 1 or 2-port serial-to-Ethernet applications •
Uses a 32-bit ARM 7 core •
Uses Moxa’s own advanced UART technology •
Has 2 MB Flash and 4 MB SDRAM memory built in •
Moxa’s NetEZ technology gives serial device manufacturers a range of powerful tools for integrating
Ethernet capability into serial devices:
The MiiNe—Moxa’s 2nd Generation SoC
10/100 Mbps embedded serial device servers
Same size as an RJ45 connector—only 33.9 x 16.25 x 13.5 mm
›
Extremely low power consumption—only 160 mA @ 3.3 VDC input
›
Uses the MiiNe, Moxa’s second generation SoC
›
NetEZ technology makes integration incredibly easy
›
Versatile choice of operation modes: Real COM, RFC2217, TCP, TCP,
›
and UDP
Moxa’s MiiNePort E1 embedded device servers are designed for
manufacturers who want to add sophisticated network connectivity
to their serial devices with minimal integration effort. The MiiNePort
E1 is empowered by the MiiNe, Moxa’s second generation SoC, which
supports 10/100 Mbps Ethernet, up to 921.6 Kbps serial baudrate,
a versatile selection of ready-to-use operation modes, and requires
Overview
only a small amount of power. By using Moxa’s innovative NetEZ
technology, the MiiNePort E1 can be used to convert any device with
a standard serial interface to an Ethernet enabled device in no time. In
addition, the MiiNePort E1 is the size of an RJ45 connector, making it
easy to fit into virtually any existing serial device.
NetEZ Technology
SCM: • Need an easy tool to configure the network through serial
communication inside the device? Try MiiNePort’s friendly SCM
(Serial Command Mode).
EXTrigger: • Want to troubleshoot your network with ease? Use the
MiiNePort’s EXTrigger button to reset network settings with just
one push.
