E-59

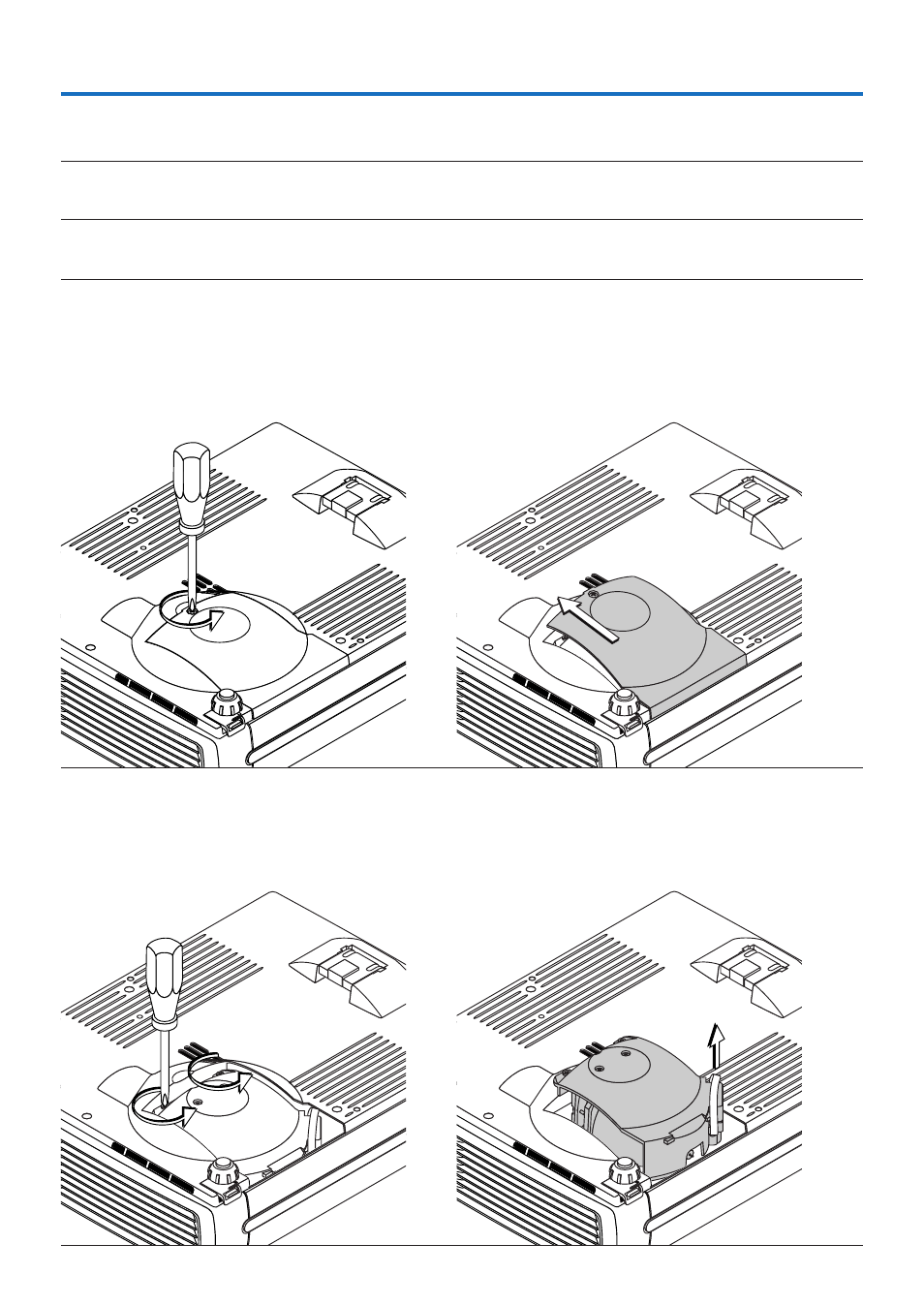

Replacing the Lamp Cartridge
Preparations: Turning the projector upside-down on top of a soft cloth, etc., so that it does not get scratched makes it easier to
replace the lamp cartridge. Turn the projector right-side up after replacing the lamp cartridge.
1
Unplug the power cord.
2
Turn the projector upside-down.
3
Remove the lamp cover.
(1) Turn the lamp cover’s set screw counterclockwise and
loosen until the screw turns freely. (The screw does
not come off.)
(2) Open the lamp cover a little, then pull it in the direc-
tion of the arrow and remove it.
4
Remove the lamp cartridge.
(1) Turn the lamp cartridge’s two set screws counter-
clockwise and loosen them until the screws turn freely.
(The screws do not come off.)
(2) Grasp the lamp cartridge’s handle and pull upward
to remove the lamp cartridge.
