FRAME ASSEMBLY
Wheel Assembly
REF.
NO.
PART
NO.
DESCRIPTION
QTY.
REF.
NO.
PART
NO.
DESCRIPTION
QTY.
1
618-0063
Bearing Ass’y.
1
25
736-0242
Washer, Bell
1
2
656-0012A
Ass’y., Friction Wheel Disc
1
26
712-0324
Nut
1
3
684-0013B
Rod Shift, Wheel Drive
1
27
736-0351
Flat Washer
1
4
684-0021
Brkt. Ass’y. Friction Wheel
1
28
710-0809
Screw
1
31
738-0869
Axle †
1
5
684-0030
Frame Ass’y., 600 S/T
1
31
738-0830
Axle††
1
6
684-0042B
Wheel Friction
1
32
738-0924
Screw, Shoulder
3
7
710-0654A
Hex Self-Tap Screw
4
33
741-0563
Bearing, Ball
2
8
710-0538
Hex Hd. Cap Screw
2
34
741-0598
Flange Bearing
2
9
710-0599
Scr., Hex Wash. Hd.
2
35
746-0897
Cable, Auger
1
10
710-0896
Hex Self-Tap Scr.
12
36
746-0898
Cable, Clutch
1
11
710-0788
Screw, Hex
1
37
748-0190
Spacer
1
13
712-0711
Nut, Hex
2
38
756-0625
Roller, Cable
3
14
714-0126
Key
1
39
784-5590
Frame, Shift Bracket
1
15
714-0143
Pin, Klick
2
40
784-5638
Cover, Frame
1
16
714-0474
Pin, Cotter
1
41
784-5688
Bracket, Drive Cable Roller
1
17
715-0249
Pin, Roll
2
42
784-5687
Brkt., Auger Clutch Cable Guide
1
19
717-1445
Gear
1
43
784-5689A
Brkt., Front Support Guide
1
20
717-1444
Shaft, Hex
1
44
710-0599
Hex Wash Hd. TT-Tap Scr.
21
732-0264
Extension Spring
1
1/4-20 x .5" Lg.
6
22
736-0105
Washer, Bell
2
45
784-5617
Friction Plate
1
23
736-0160
Flat Washer
1
46
718-0301A
Friction Wheel Hub
1
24
736-0188
Washer, Flat
3
47
735-0243
Friction Wheel Rubber
1

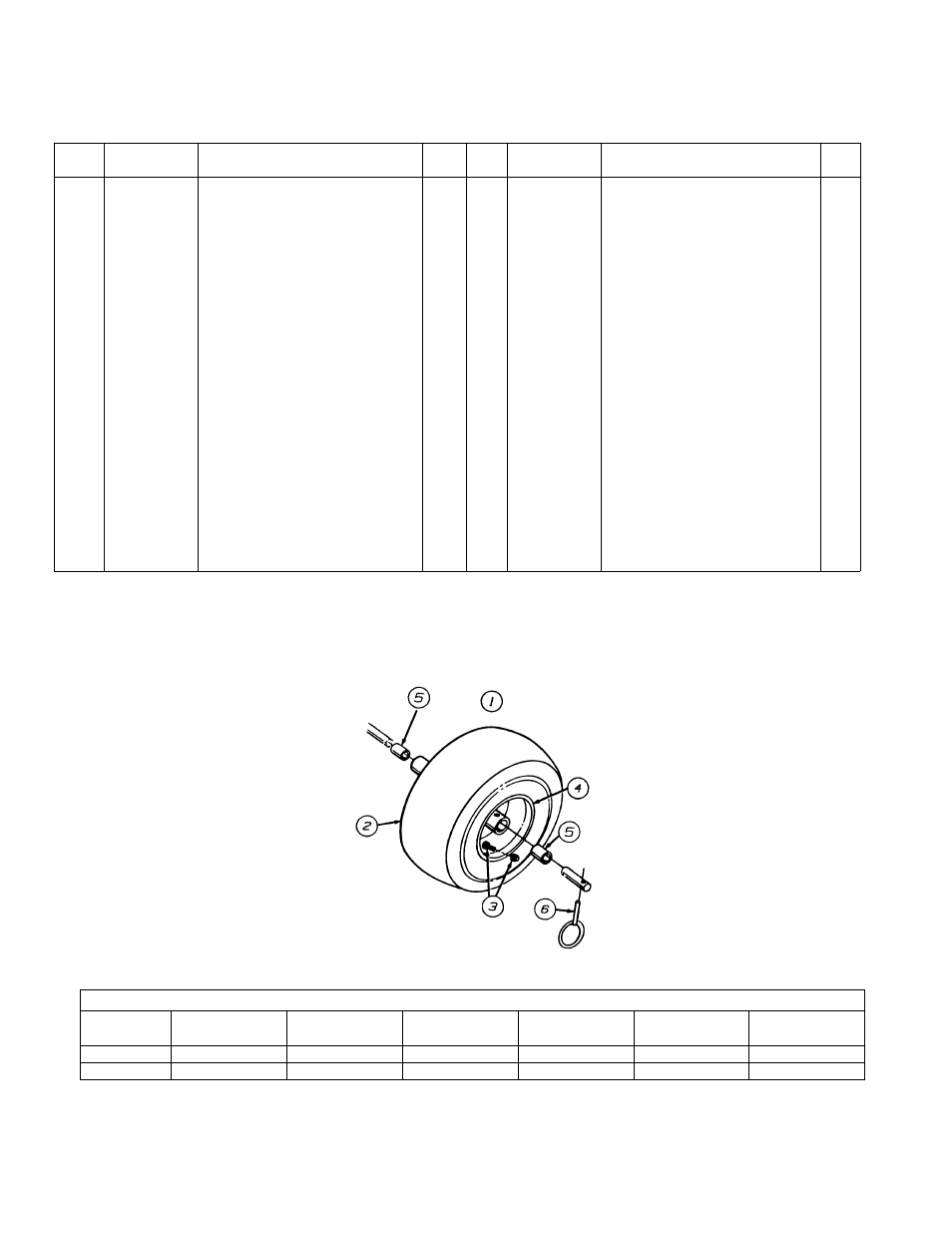

WHEEL ASSEMBLY
SIZE
WHEEL ASSY.
COMPLETE (1)
TIRE ONLY (2)
AIR VALVE (3)
RIM ONLY (4)
SLEEVE
BEARING (5)
KLICK PIN (6)
13 x 5
734-1714
734-1527
734-0255
734-1713
741-0401
714-0143
16 x 6.5
734-1712
734-1525
735-0255
734-1711
741-0401
714-0143
† Models 614E, E642E, E644E,
†† Models E662H, E664F
