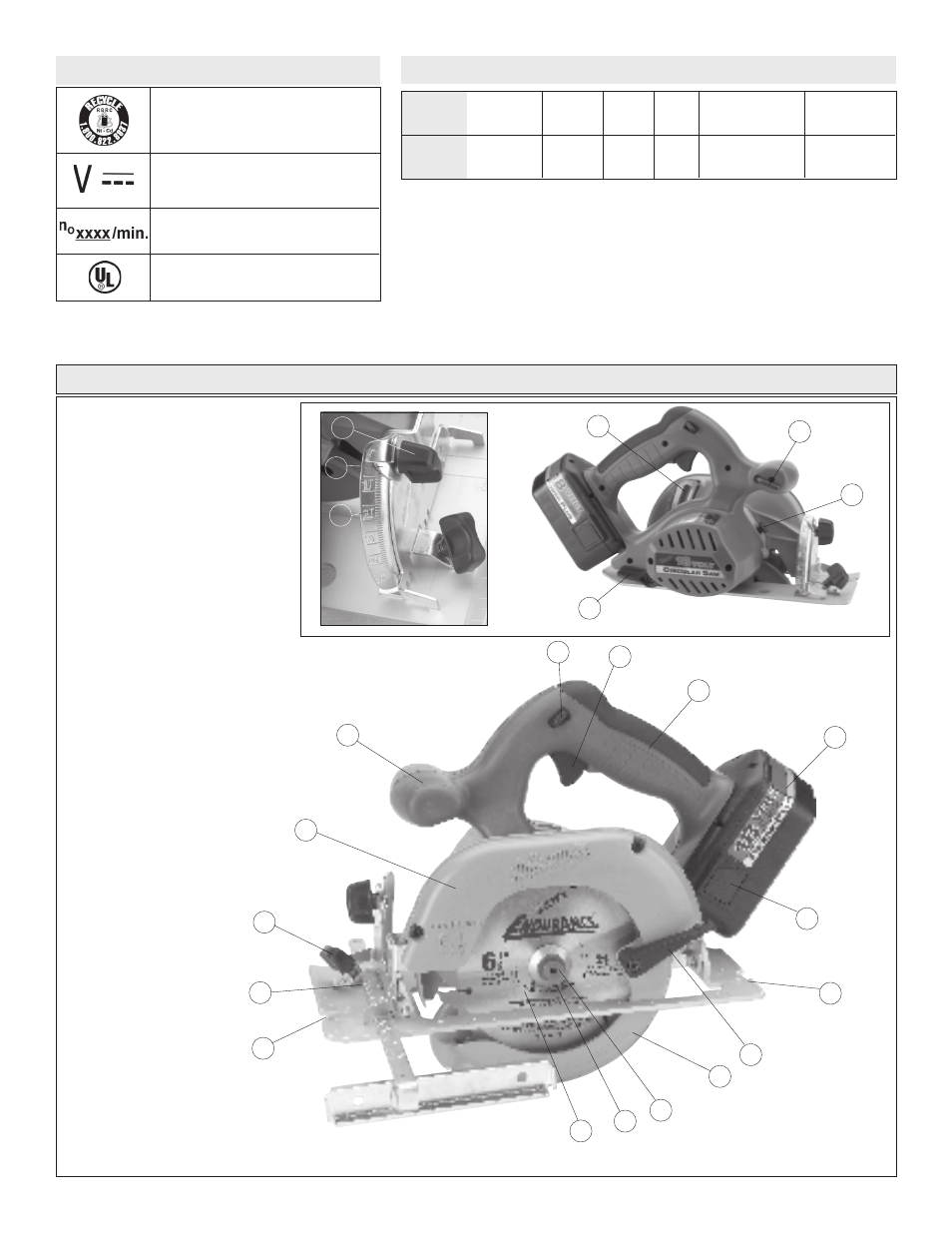

FUNCTIONAL DESCRIPTION
Depth of Cut
at 45°
0 to 1-9/16"
Blade
Size
6-1/2"
Catalog
No.
6310-20
Depth of Cut
At 90°
0 to 2-1/8"
Arbor
5/8"
No Load
RPM
3200
Volts
DC
18
Specifications
1. Lock-off button
2. Trigger
3. Handle
4. Battery
5. Battery pack release buttons
6. Shoe
7. Lower guard lever
8. Lower guard
9. Blade bolt
10. Blade flange
11. Blade
12. Sight line
13. Rip fence slot
14. Rip fence adjusting knob
15. Upper guard
16. Front handle
17. Depth setting gauge
18. Wrench
19. Spindle lock button
20. Depth adjusting lever
21. Bevel adjusting knob
22. Bevel pointer
23. Bevel scale
Volts Direct Current
No Load Revolutions per Minute
Symbology
Properly Recycle Nickel Cadmium
Batteries
Underwriters Laboratories, Inc.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
22
