Pin Assignments
NPort 6110 supports three serial interfaces: RS-232, RS-422, and 2-wire RS-485.
In this chapter, we give the DB9 Male pinouts for each of these three interfaces.

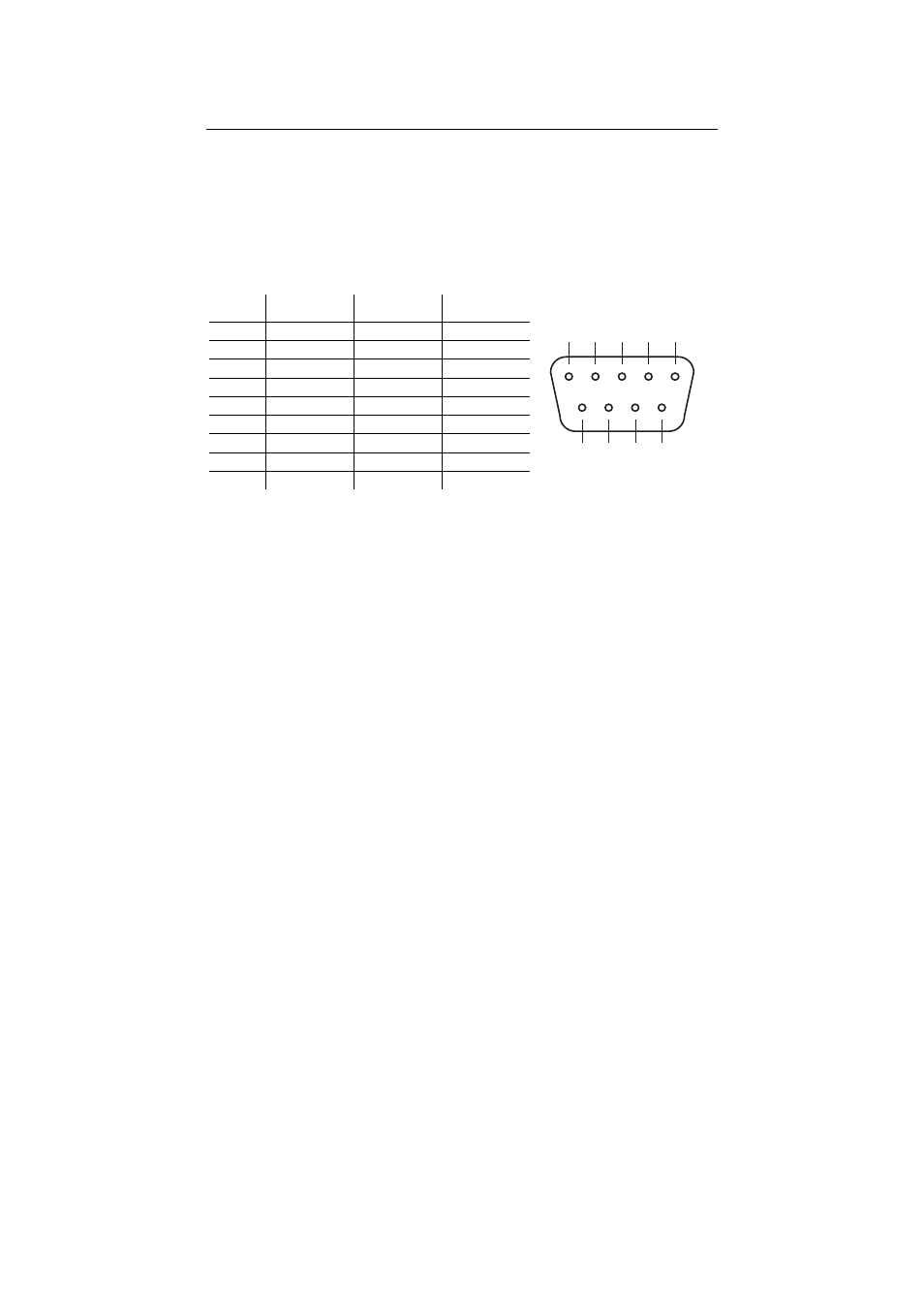

DB9 Male Pinouts
Pin No. RS-232
RS-422
RS-485
1 DCD TxD-(A)
Data-(A)
2 RxD TxD+(B)
Data+(B)
3 TxD
RxD+(B)
---
4 DTR RxD-(A) ---
5 GND GND GND
6 DSR RTS-(A) ---
7 RTS
RTS+(B)
---
8 CTS
CTS+(B)
---
9 --- CTS-(A) ---
1 2 3 4 5
6 7 8 9
