LC-GMRC-LAN-01
INSTALLING THE LC-GMRC-LAN-01
1. With all connections completed reconnect the negative battery terminal.
2. Plug the LC-GMRC-LAN-01 into the vehicle and into the radio.
3. Cycle the key by turning the ignition on then back off, then on again.
TESTING THE LC-GMRC-LAN-01
1. Turn the radio on and test for proper balance and fader operation.
2. Close the doors then turn the key off. The radio should stay on until the
driver’s door is open.
NOTE: If the radio you are installing requires more then 3 amps on the acces-
sory wire, or you are adding another accessory to the wire (hardwire radar
detector, etc…) then a relay will be needed to supply the additional current.

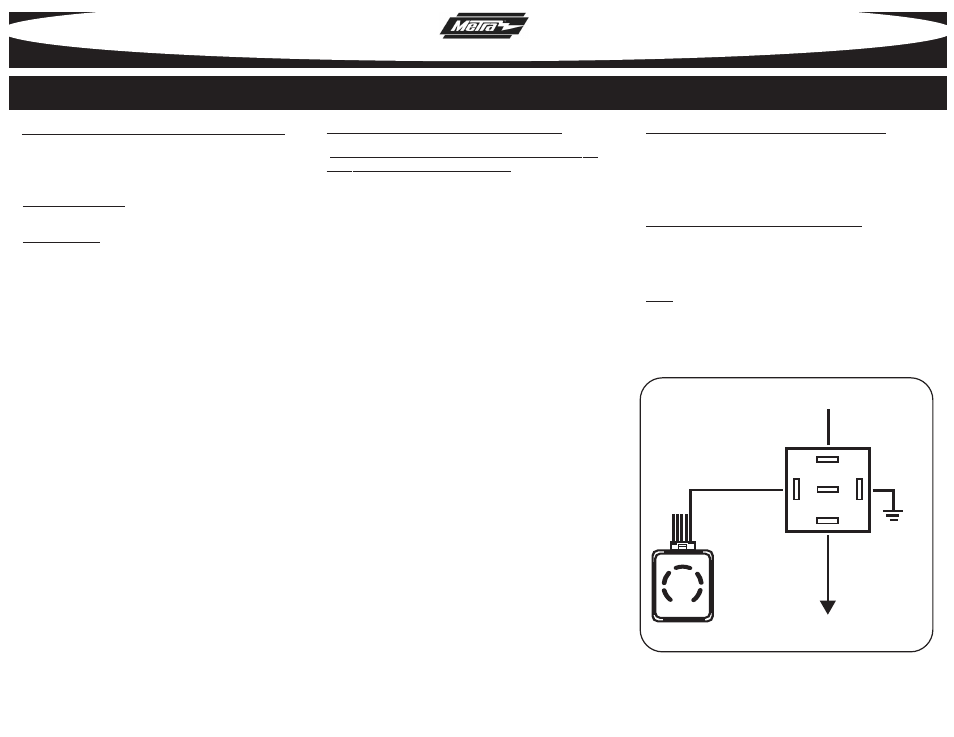

See the diagram below to properly add a relay:
TOOLS REQUIRED FOR INSTALLATION
• Cutting Tool • Tape • Crimping Tool
• Connectors (ie: butt-connectors, bell caps, etc.)
WIRE CONNECTIONS TO BE MADE
* Important: Before beginning any of the following, disconnect the negative
battery terminal to prevent accidental short circuit.
1. Connect the Yellow wire to the radios constant/memory wire.
2. Connect the Red wire to the radios accessory wire.
3. Connect the Black wire to the radios ground wire.
4. Connect the Blue wire to the radios antenna turn on.
5. Connect the White wire to the radios left front (+) speaker wire.
6. Connect the White/Black wire to the radios left front (-) speaker wire.
7. Connect the Gray wire to the radios right front (+) speaker wire.
8. Connect the Gray/Black wire to the radios right front (-) speaker wire.
9. Connect the Green wire to the radios left rear (+) speaker wire.
10. Connect the Green/Black wire to the radios left rear (-) speaker wire.
11. Connect the Purple wire to the radios right rear (+) speaker wire.
12. Connect the Purple/Black wire to the radios right rear (-) speaker wire.
2 3 4
APPLICATIONS
12v Accessory from
LC-GMRC-LAN-01 Red
To Radio
SPDT Relay
+12v Battery Fused
87
85 86
30
87a
APPLICATIONS
BUICK Enclave 2007 - 09
BUICK Lucerne 2006 - 09
CADILLAC DTS 2006 - 09
CADILLAC SRX 2007 - 09
CHEVROLET Avalanche 2007 - 09
CHEVROLET Equinox 2007 - 09
CHEVROLET Express van (full size) 2008 - 10
CHEVROLET Impala 2006 - 07
CHEVROLET Monte Carlo 2006 - 07
CHEVROLET Silverado Pickup (New Body) 2007 - 09
CHEVROLET Suburban 2007 - 09
CHEVROLET Tahoe 2007 - 09
CHEVROLET Traverse 2009 - 10
GMC Acadia 2007 - 09
GMC Savanna Full Size Van 2008 - 09
GMC Sierra (New Body) 2007 - 09
GMC Yukon XL / Denali 2007 - 09
GMC Yukon 2007 - 09
PONTIAC Torrent 2007 - 09
SATURN Outlook 2007 - 09
SATURN VUE 2008 - 09
SUZUKI XL-7 2007 - 09
