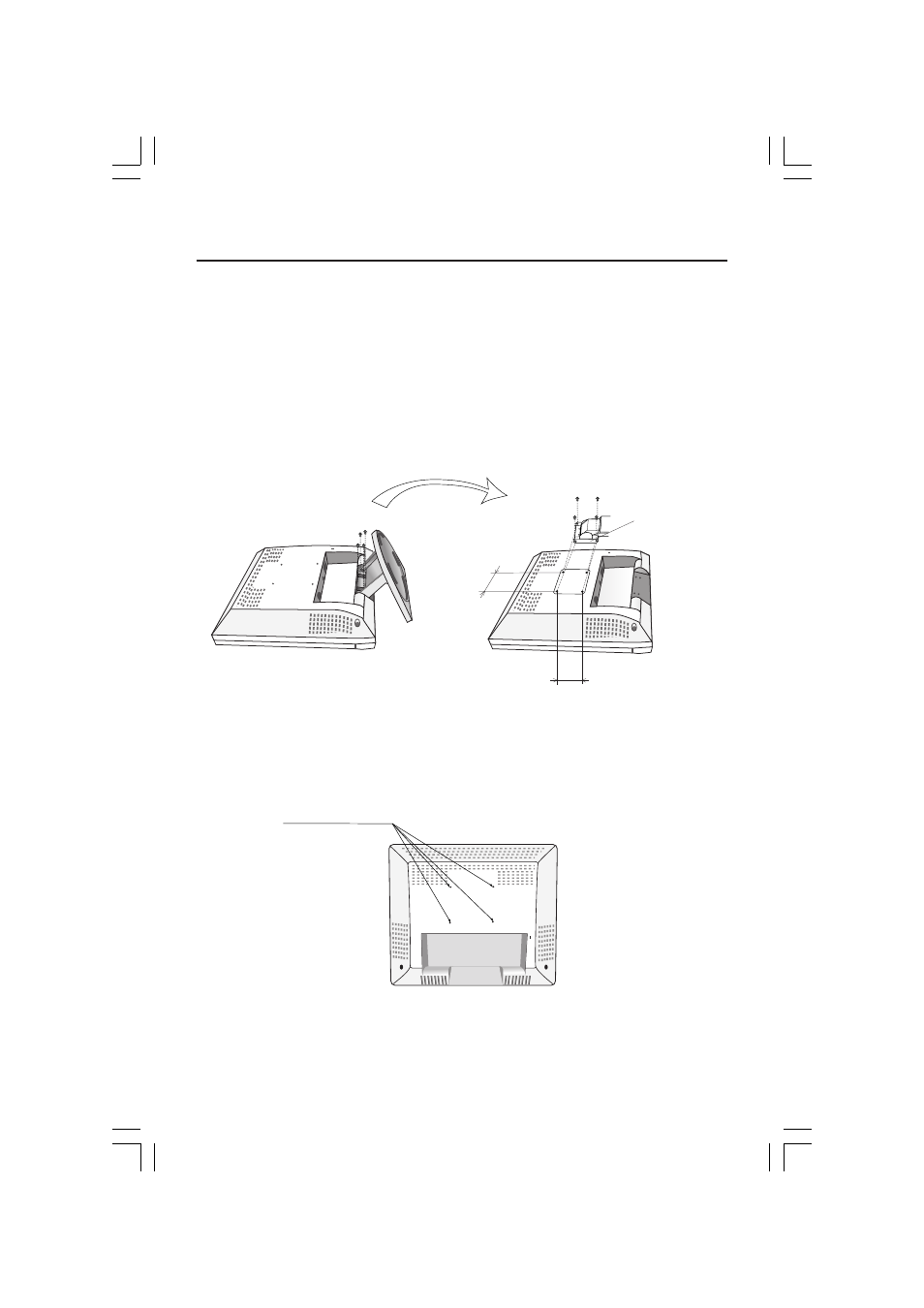

6. This LCD monitor is designed for use with a flexible arm.

Please use the attached screws (4pcs) as shown in the picture when
installing.
To meet the safety requirements, the monitor must be mounted to an arm
which guaranties the necessary stability under consideration of the
weight of the monitor.
The LCD monitor shall only be used with an approved arm (e.g. GS
mark).

Weight of LCD Assembly : 5.5kg (MAX)

Specifications

Quick Start

–continued

If using other screws than
ones included, first check
depth of the hole.

4-SCREWS (M4)
(MAX depth: 10mm)

100mm

Thickness of
bracket (arm)
2.0~3.2mm

Replace screws

Tighten all
screws.
