Video edit bay
GND
PHONO
R
1
2
3
4
R
L
POWER
18V,1.5A
OUT
MAIN
OUT
AUX
(MONO)
R
L
(MONO)
L
R
L
(MONO)
L
(MONO)
L
R
R
Desktop computer and large display
Headphones
Video out
Video out
Digital Video
Camcorder
DV Recorder 2
Video Monitor
DV Recorder 1
iPod
TM
Docking Station
HR824
Powered
Monitors

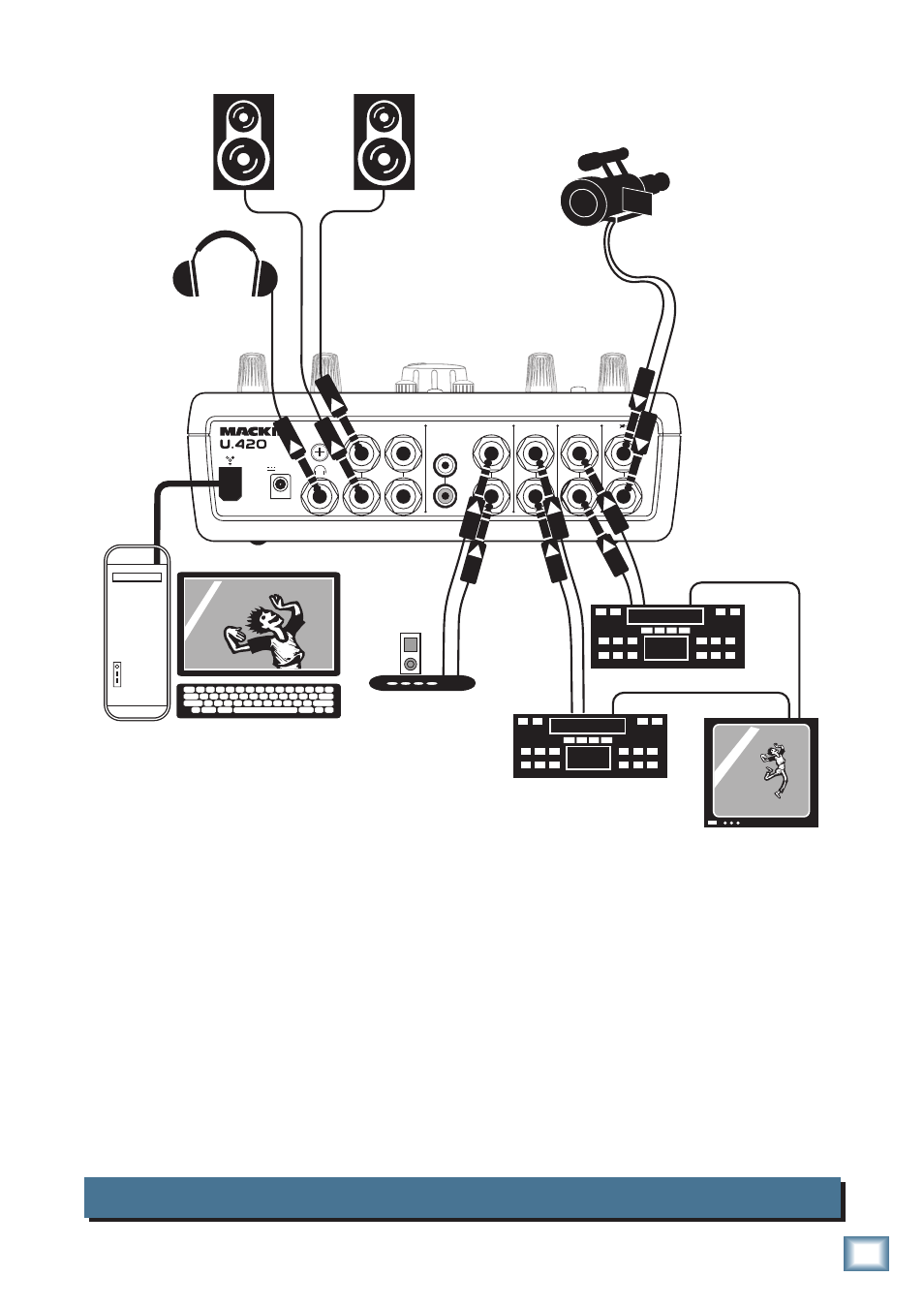

This diagram shows a DV camcorder audio connected to channel 1, DVR decks connected to channels
2 and 3, and an iPod docking station connected to channel 4.
The main outputs are fed to a pair of Mackie HR studio monitors for local monitoring, and the mixer’s
Big Knob controls their volume. The headphone output has its own level control, independent of the Big
Knob.
A Mac with a cinema display is connected via FireWire to the mixer. The computer audio comes from
a video production application like Final Cut Pro for monitoring during editing. The audio inputs can also
be recorded through the mixer’s FireWire connection.
