99-7509 KIT ASSEMBLY
4
B
C D

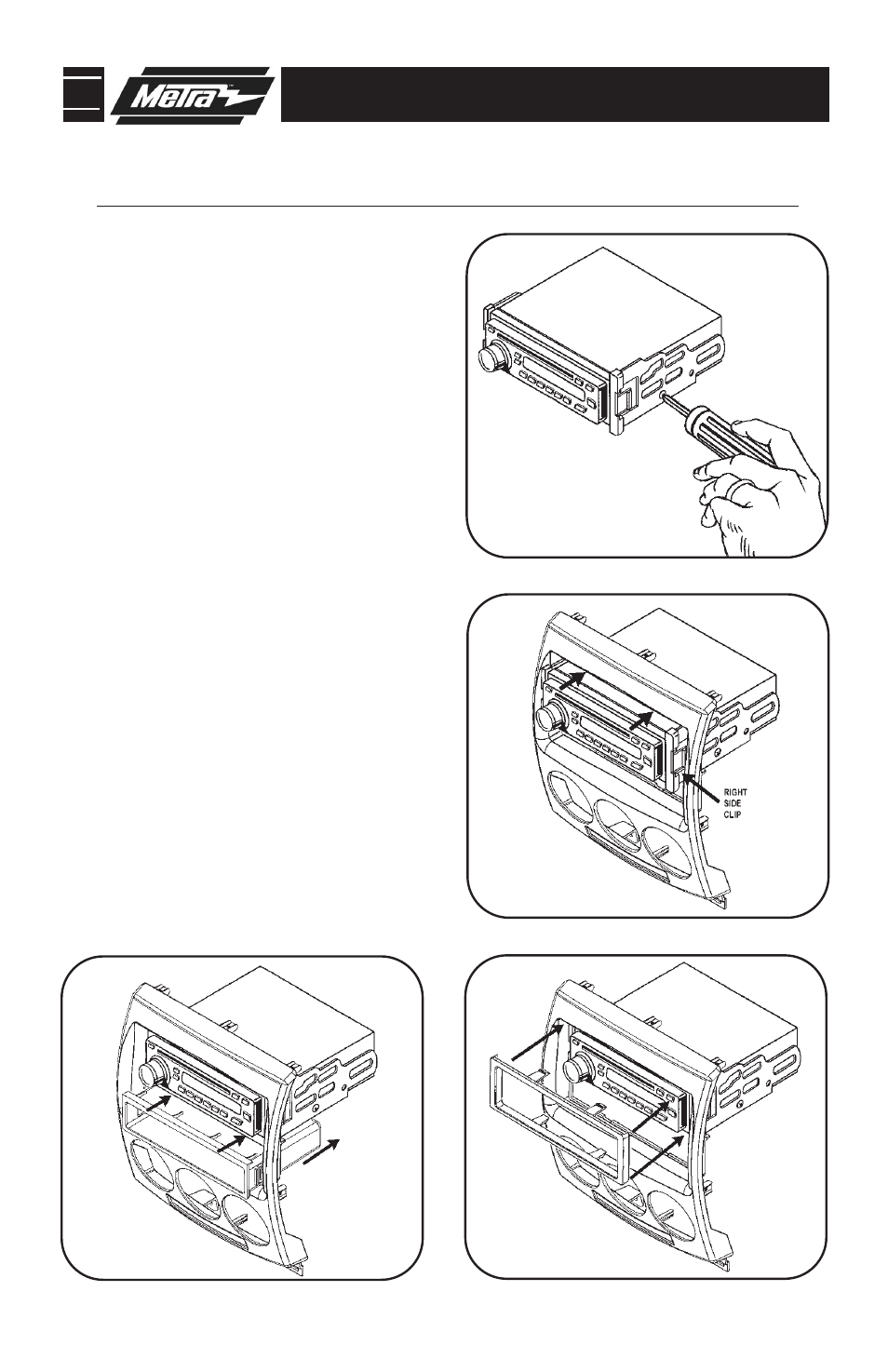

ISO MOUNT RADIO PROVISION WITH POCKET
Mount the ISO Brackets to the after-
market radio using the screws sup-
plied with the radio. (Figure A) 1
Slide the radio into the Radio Housing
until it snaps into place. (Figure B) 2
Snap the Trim Plate onto the front of
the Radio Housing. (Figure C) 3
Snap the pocket into the Radio
Housing. (Figure D) 4
Continue to final assembly.
* Note: Refer also to the instructions included with the aftermarket radio.
A
