TLG SERIES
TOP MOUNTED LOW TEMP GLASS DOOR MERCHANDISERS
TECHNICAL SPECIFICATIONS
LISTINGS HOOKUP
BID SPECIFICATIONS
Item no. TLG-______HD.
Provide_______________( ) Top Mount-
ed Low Temp Glass Door Merchandiser(s),
Master-Bilt model no. TLG-______HD.
Merchandiser will feature textured fin-
ish on interior and exterior and will be
equipped with an electronically controlled
monitoring system. Energy efficient LED
interior lighting will be standard. It will
also be provided with a top mounted low
243-6/13-web
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.

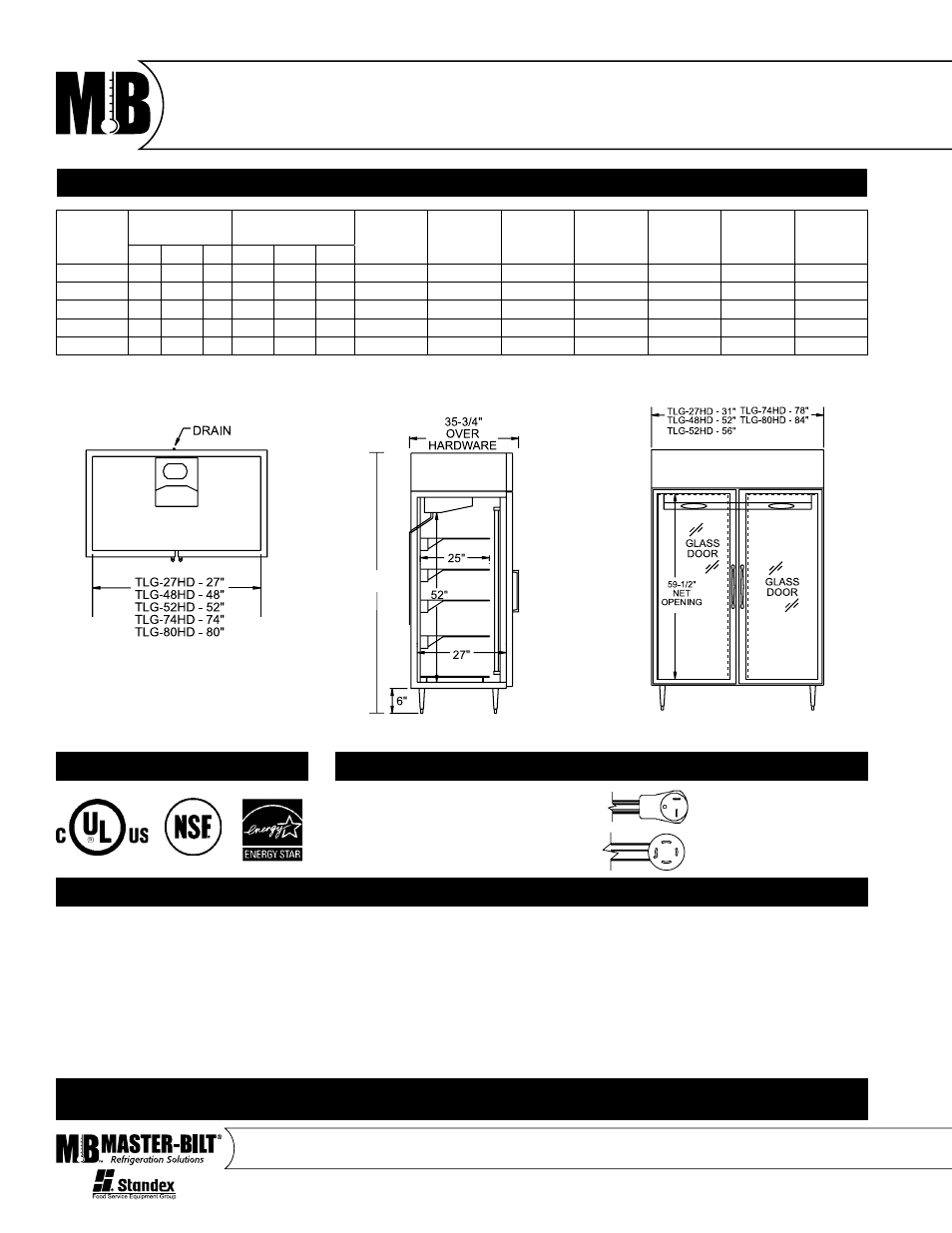

PLAN VIEW SIDE VIEW ELEVATION VIEW
profile interior fan housing, electric conden-
sate evaporator, rear wall guard and metal
legs with 6"-7" adjustable range. Five white
epoxy-coated shelves (four cantilever and
one bottom) with price tag molding per
door will be standard.
Doors will contain black rails and handles,
triple pane glass, adjustable torsion-bar hing-
es and heated frames and door openings.
The refrigeration system will be top
mounted, self-contained and use R-404A re-
frigerant. The temperature range will be 5° to
-15°F (-18° to -26°C).
Merchandiser to have standard limited two
year parts and labor with additional three
year coverage on compressor part.
Merchandiser to be UL, C-UL and NSF
listed as well as ENERGY STAR qualified.
NEMA 5-20P (TLG-27HD
ONLY)
NEMA L14-20P (ALL OTHER
MODELS)
MODEL
DIMENSIONS
(in.)
DIMENSIONS
(mm)
VOLTS** AMPS
UNIT
H.P.
NO. OF
DOORS
CAP.
CU. FT.
SHIP
CU. FT.
SHIP
WT.
LB/KG L D H* L D H
TLG-27HD 31 35 3 /
4
85 787 908 2159 115 11.1 3/4 1 27.5 79.0 600/273
TLG-48HD 52 35 3 /
4
85 1321 908 2159 208-230 8.8 1 1 /
2
2 49.0 118.7 830/377
TLG-52HD 56 35 3 /
4
85 1422 908 2159 208-230 8.8 1 1 /
2
2 53.0 128.0 850/386
TLG-74HD 78 35 3 /
4
85 1981 908 2159 208-230 10.0 2 3 75.5 168.0 1085/493
TLG-80HD 84 35 3 /
4
85 2134 908 2159 208-230 10.0 2 3 81.6 185.0 1100/500
*Height includes 6"-7" adjustable legs. **TLG models (except TLG-27HD) operate on a minimum of 208 volts. A voltage boosting
transformer (part no. 39-01087) must be used when the supply voltage is less than 208 volts.
Note: 208-230/60/1 also requires
neutral and safety ground wire.
85"
TLG-27HD: Via plug in, 9 foot long flexible
three wire 14/3 cord with molded plug.
Other models: Via plug in, 9 foot long
flexible four wire 208-230v 14/4 cord with
neutral and ground wires and molded plug.
