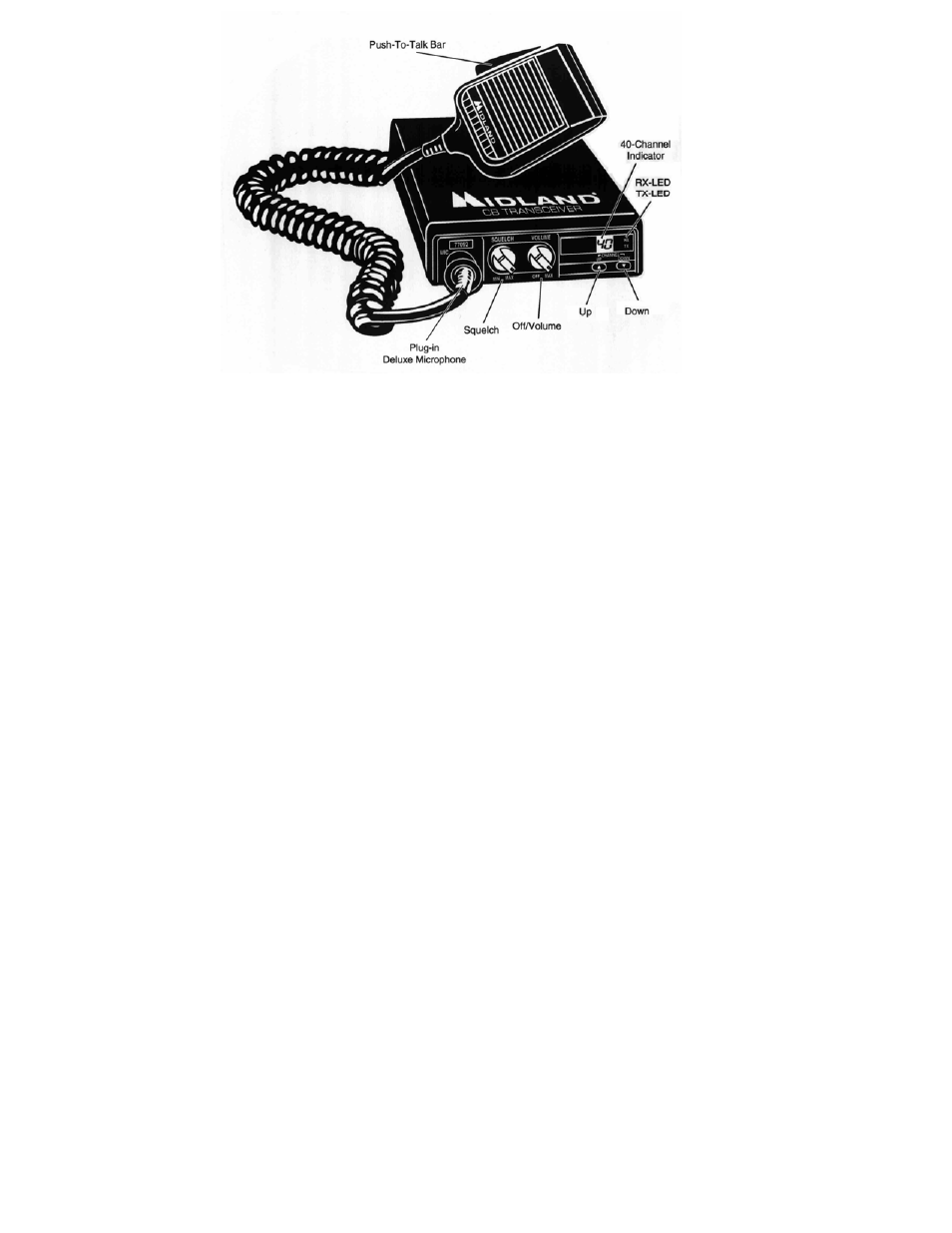

FRONT PANEL CONTROLS
ON/OFF VOLUME: In the off position your transceiver power is off. Turn
this control clockwise to switch on the unit and adjust the volume.
SQUELCH CONTROL: Adjust this control until background noise just
disappears. If the control is adjusted too far clockwise it may cause
muting of weaker signals.
MICROPHONE CONNECTOR: Plug in the supplied microphone to this
connector.
UP / DOWN: This easy to operate control allows changing of CB channel,
either up or down.
CHANNEL INDICATOR: The LED displays the channel number.
TX LED: indicator for showing the unit is transmitting.
RX LED: indicator for showing the radio is in receive mode.
Push-To-Talk bar: Press this bar to cause the radio to transmit. Hold the
microphone about 2ninches from your mouth and speak in a normal voice.
