a
2 hose clips for securing the vent
ducting to the vent connection
b
1 reducing collar
for exhaust ducting of 5" (125 mm)
diameter
c
1 non-return flap
for fitting into the vent connection
d
2 runners
(1 x right, 1x left) to support the hood
in the cabinet
e
2 spacer blocks (DA 329i-1 only)
with (8) 3.5 x 9.5 mm self-tapping
screws for installing the hood in a
35
7 /
16
" (90 cm) wide cabinet
f
2 side spacers to conceal gaps
when installing in a 24" (60 cm) wide
cabinet
g
Active Charcoal Filter Slot
h
Deflector plate handle
for the front panel
i
1 spacer strip to conceal the gap
between the rear of the appliance
and the wall
j
1 light cover
with right and left holders
k.

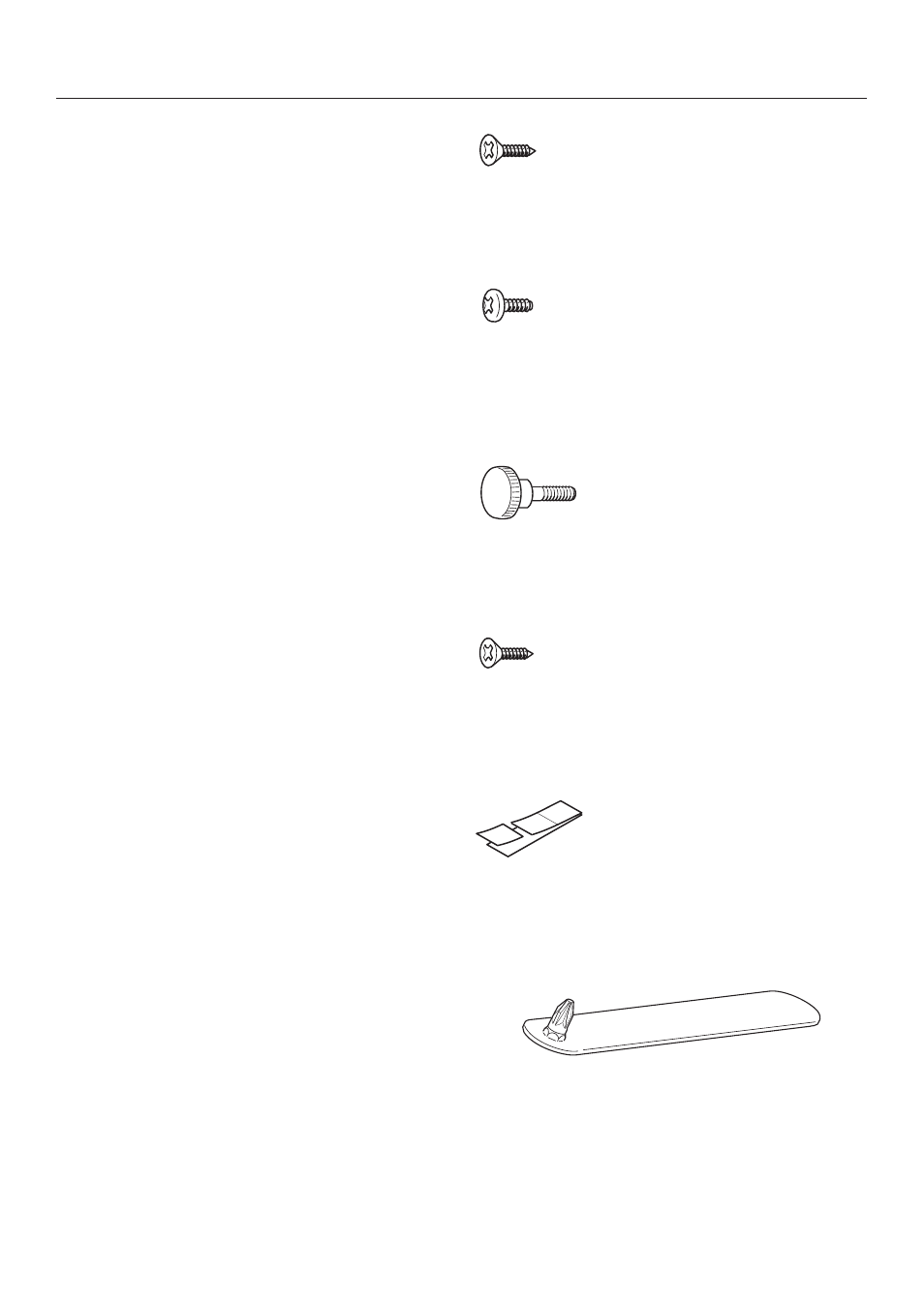

8 screws 3.5 x 16 mm for installing the
runners and spacer blocks
6 self-tapping screws
3.5 x 9.5 mm for installing the light and
spacer strips
6 knurled screws
for securing and adjusting the hood
7 screws
3.0 x 15 mm for installing the light
shield
1 adhesive strip with 3 sections
for attaching a decorative piece to the
deflector plate handle
i
Screwdriver
for aligning the cabinet door after the
appliance has been installed
