MACKIE SP400 - Manual

Sound Palette Series
Compact Two-Way Speaker

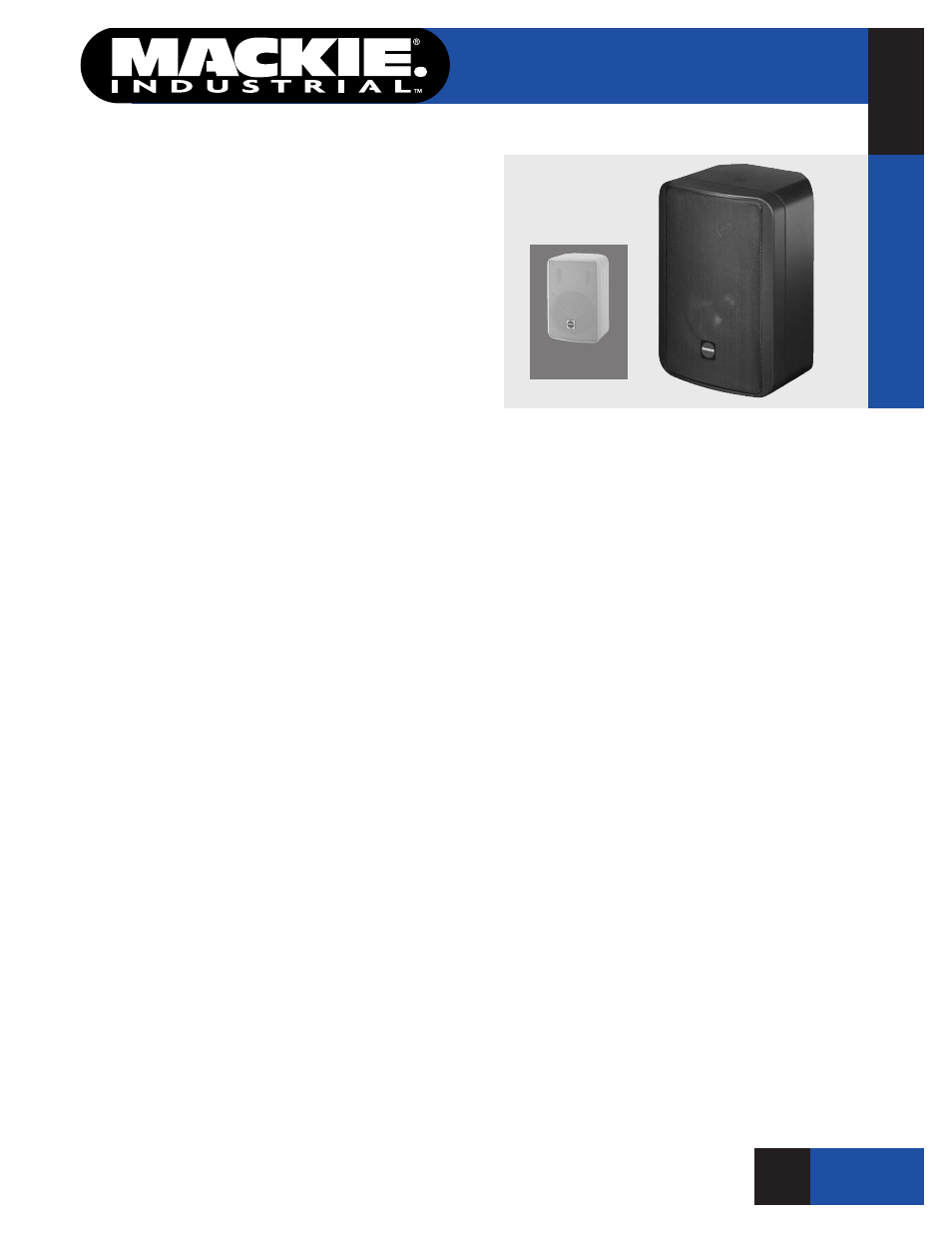

SP400
SPEAKER
■
Small size and a wealth of mounting options make
the Mackie Industrial SP400 compact, medium power
loudspeaker ideal for use in business music systems.
When used together with the SP800S subwoofer as a
three-way system, a unique internal filter circuit allows
the SP400 to operate as a band-limited complement to
the subwoofer. With the filter bypassed, the SP400
operates as a full bandwidth, stand-alone product.
Speaker zones can be intermixed, adding additional
low-frequency response wherever needed.
■
The woofer is a high-excursion, carbon fiber design.
The high-frequency section is a horn loaded, high-effi-
ciency dome tweeter featuring a Ferrofluid
® cooled
coil. Together they provide natural, smooth sound
reproduction and high resistance to weather.
■
Installation of the SP400 is fast and efficient with
two M6, two M10 threaded inserts and a wide variety
of optional mounting brackets. Electrical connections
are made to recessed color-coded, spring-loaded ter-
minals. Wattage taps and voltage adjustments are
selectable by means of two detented rotary switches.
The enclosure is constructed of high-density, scratch-
resistant polystyrene and includes a protective perfo-
rated steel grille and connection cover. It is available in
black or white (SP400W) and may be painted to match
existing environments.
■
The SP400 is a part of Mackie Industrial’s Sound
Palette series, integrated for business applications.
Speakers include full range and a complementary low
frequency system, designed for constant voltage paral-
lel connection. Sound Palette controller-amplifiers pro-
vide complete, sophisticated control operations, opti-
mized for business music systems.
■
This Mackie Industrial product is covered by an
exclusive, one-time, NO FAULT repair policy in addition
to a five year limited warranty.
Features
■
5" carbon fiber, high excursion low-frequency
transducer
■
120° x 100° horn loaded dome tweeter
■
Exclusive Sound Palette band-limiting filter for
sub-woofer integration anywhere on the constant
voltage line
■
Built-in externally adjustable, multi-tap constant
voltage transformer
■
Trapezoidal shaped enclosure for multiple applications
and minimum visual intrusion
■
Lightweight, UV/weather resistant, high density
polystyrene
■
Built-in threaded inserts for wide array of optional
mounting hardware
■
Exclusive Mackie Industrial — one time, NO FAULT
repair policy
■
Five year limited warranty
oF 6 PAGES
1
O F 6 P A G E S
SP400
AP
P
L
ICA
TION
S
■
Quality Foreground/Background Music
■
Speech Reinforcement
■
Multi-Zone Music and Paging
■
Satellite or Full Range Applications
SP400W
