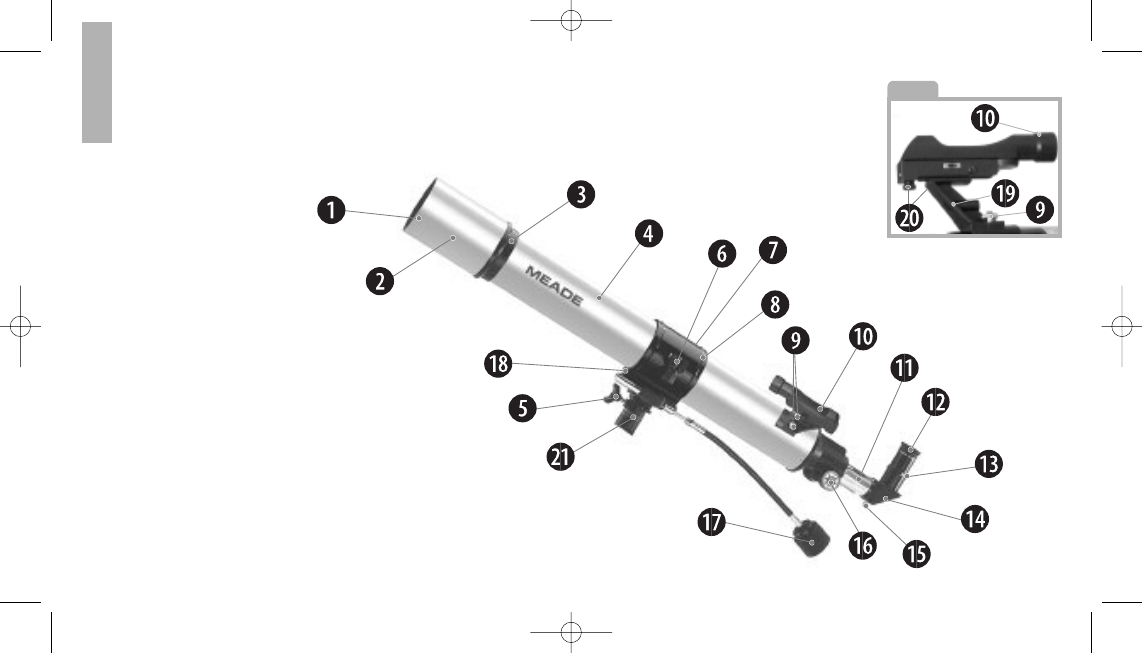

FIGURE 1 Figure 1: Meade 80EQ-AR Equatorial Refracting Telescope
Inset A: Red Dot Viewfinder Assembly
2
1. Dust cap (not shown)
2. Dew shield/lens shade
3. Object lens cell
4. Main optical tube (OTA)
5. Declination lock
6. Cradle ring attachment lock knob
7. Cradle ring lock knob (not shown)
8. Cradle ring
9. Red dot viewfinder bracket mounting
thumbscrews (see Inset A)
10. Red dot viewfinder
11. Focuser draw tube
12. Eyepiece
13. Eyepiece holder and thumbscrew
14. Diagonal mirror
15. Diagonal mirror thumbscrew
16. Focuser knob
17. Declination control cable
18. Optical tube saddle plate
19. Red dot viewfinder bracket (see Inset A)
20. Red dot viewfinder alignment screws
(see Inset A)
21. Declination setting circle (see Fig. 5)
Inset A
(not shown)
