Maretron VS-07.0HG User Manual
Page 2
Copyright © 2011 Maretron, LLP All Rights Reserved
P/N: M001808 Rev.1.1 1/11

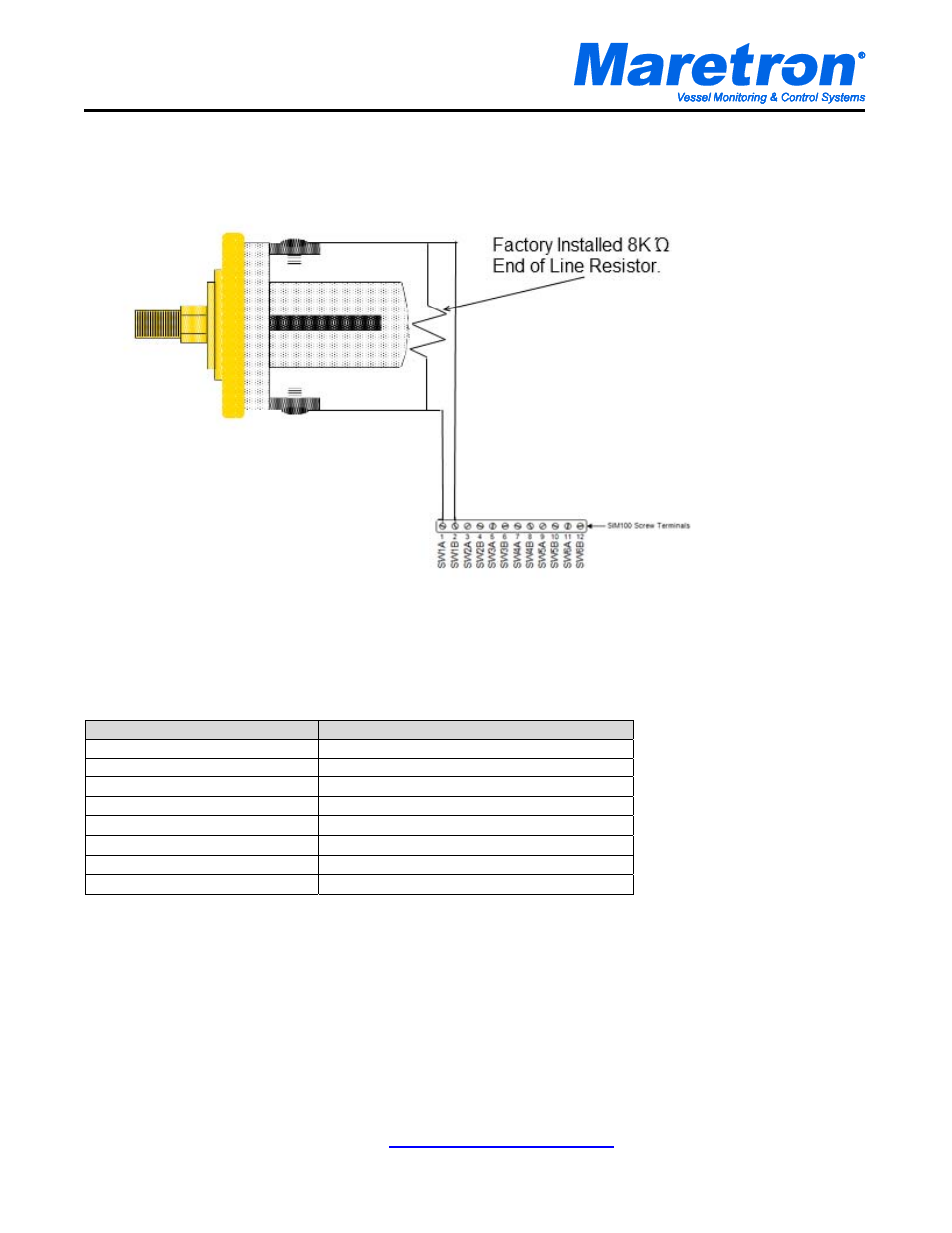

Figure 1 - Wiring Diagram
Device Specifications
Parameter
Value
Switch Threshold Vacuum
7.0”Hg (3.4PSI, 0.237 bar)
Max operating pressure
150 PSI (10.3 bar)
Diaphragm
Polyimide film
Operating Temperature Range
-40° to 250°F (-40°C to 121°C)
Connector
1/8-27 NPT Male Thread
Circuitry
SPST-N.O. with 8 KΩ end of line resistor
Base
Brass
Cover
Glass-reinforced polyester
For installation support, please contact:
Maretron, LLP
9014 N. 23
rd
Ave #10
Phoenix, AZ 85021-7850
Telephone: (+1) 866-550-9100
E-mail: [email protected]
Web:
