312 Technical data
Technical
data
Instruments
and controls
Operation Driving
Instrument
cluster display
Practical hints Car care Index

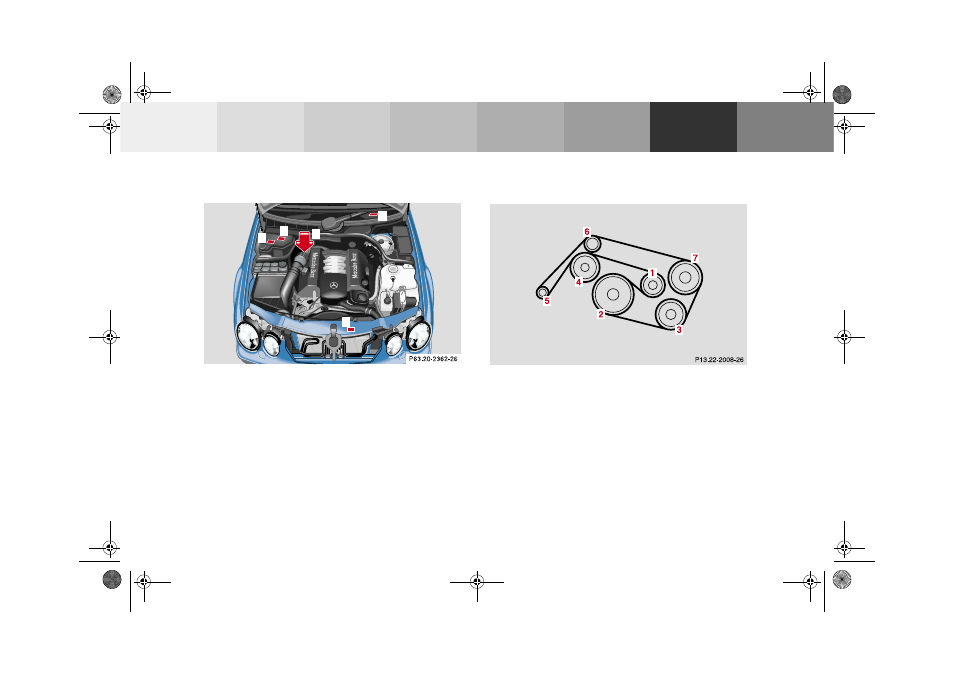

CLK 320 shown
3 VIN, visible (lower edge of windshield)
4 Engine number
5 Body number and paintwork number
6 Emission control label
7 Information label, California version
Vacuum line routing for emission control system
Layout of poly-V-belt drive
1 Automatic belt tensioner
2 Crankshaft
3 Air conditioner compressor
4 Coolant pump
5 Generator (alternator)
6 Idler pulley
7 Power steering pump
6
5
7
3
4
