Midland Radio RG2W or RG2B User Manual
Page 8
Page 8
2.2

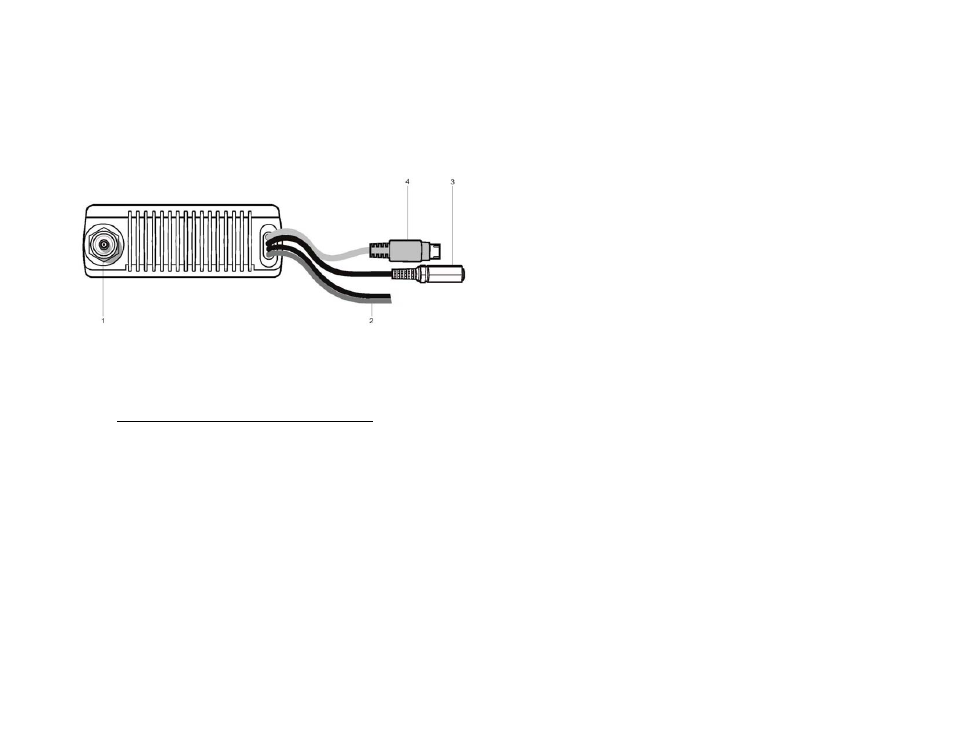

Back panel (connections)
,
Warning! Faulty connections or short-circuits may seriously damage REGATTA 2.
Before attempting any connections, consult the specialized sections of this
manual.
1) Antenna
Jack
This SO 239 jack is for connecting an appropriate antenna.
2) Power
cable
This red/black cable has to be connected to a power source of 12 V DC (red is
positive. Attention: A converter is needed for 24 V power sources!
3) Jack for additional external loudspeaker
You can use this jack for the connection to a suitable external loudspeaker
(optional), if needed.
4) GPS
connector
Allows for connection to the optional receiver module for obtaining, viewing and
transmitting (with DSC) information regarding position and current time data.
