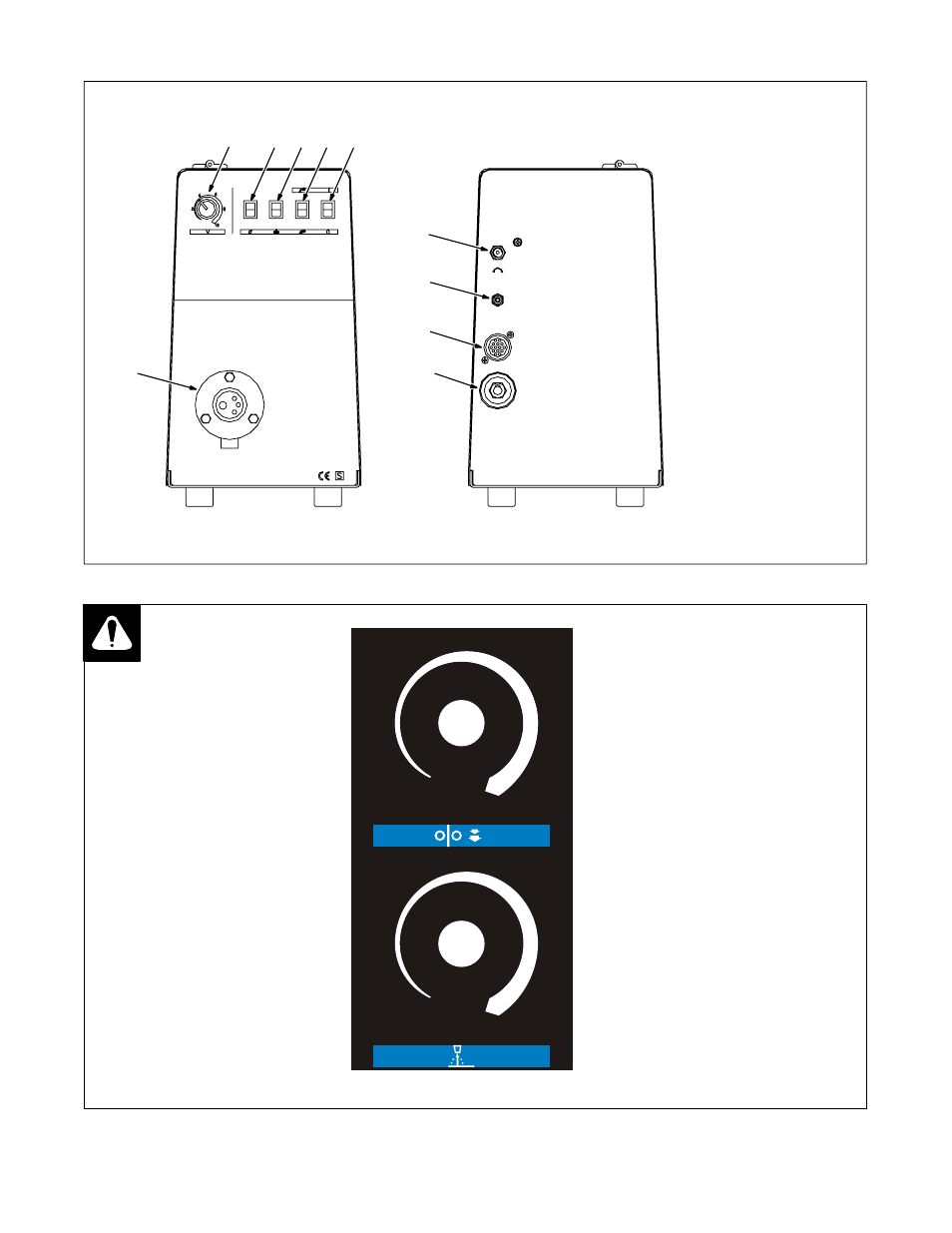

5-2. Panel Controls
1 2 3 4 5
7
8
9
10 6
1 Voltage Control
2 Purge Control
3 Jog
4 2T−4T Switch
5 Power ON-OFF
6 Torch Connection
7 Circuit Breaker
8 Gas In Connector
9 Control Cable Connection
10 Weld Cable Connection
5-3. Run-In Control and Burnback Control
2
4
6
8
10
2
4
6
8
10
t
Run-In Control
Use control to set wire feed speed
before arc initiation
After arc initiation, wire feed speed
is controlled by the wire feed speed
control on the front control panel.
Burnback Control
Control adjusts the time welding
wire is energized after wire feed
stops.
