7

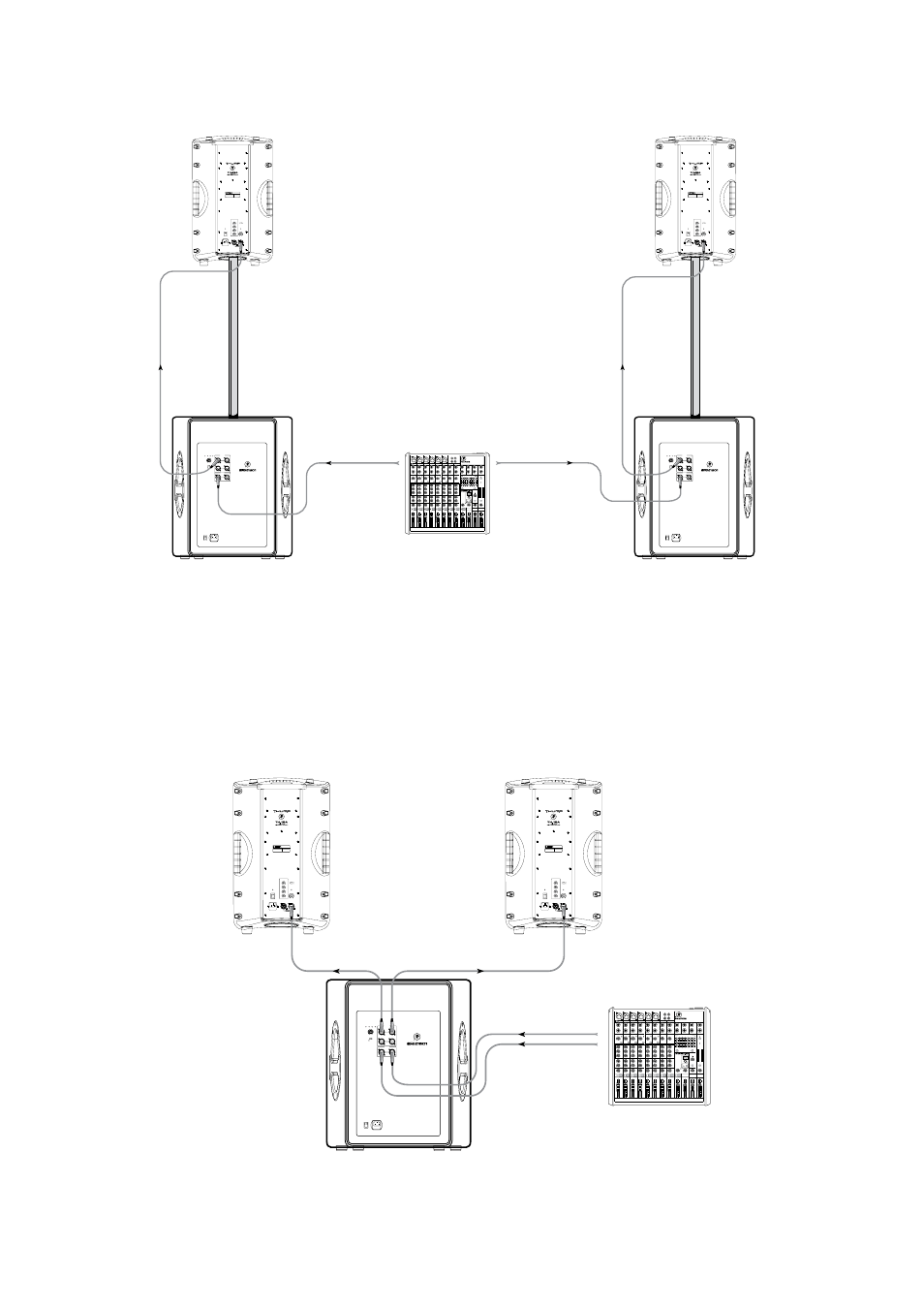

PA System with two powered subwoofers
Right Main
Powered Loudspeaker
(Mackie TH-12A)
Powered Subwoofer
(Mackie SRM1801)
Powered Subwoofer
(Mackie SRM1801)
Left Main
Powered Loudspeaker
(Mackie TH-12A)
Pole Mount Pole Mount
High Pass
Output
High Pass
Output
From Mixer
Right Output
From Mixer
Left Output
ProFX12 Mixer
The left and right line-level outputs from a mixer feed the inputs of two powered subwoofers. The high
pass line-level outputs of the subwoofers feed the inputs of the Mackie TH-12A loudspeakers.
MON MAIN
4 3 2 1 5/6 7/8 9/10 11/12
Left and Right Main
Powered Loudspeakers
(Mackie TH-12A)
Powered Subwoofer
(Mackie SRM1801)
From Mixer
Left and Right
Outputs
High Pass
Output
ProFX12 Mixer
High Pass
Output
PA System with one powered subwoofer
The left and right line-level outputs from a mixer feed the inputs of a powered subwoofer. The high pass
line-level outputs of the subwoofer feed the inputs of the Mackie TH-12A loudspeakers.
