GXT444
HI LO
Hi/
Low VOX

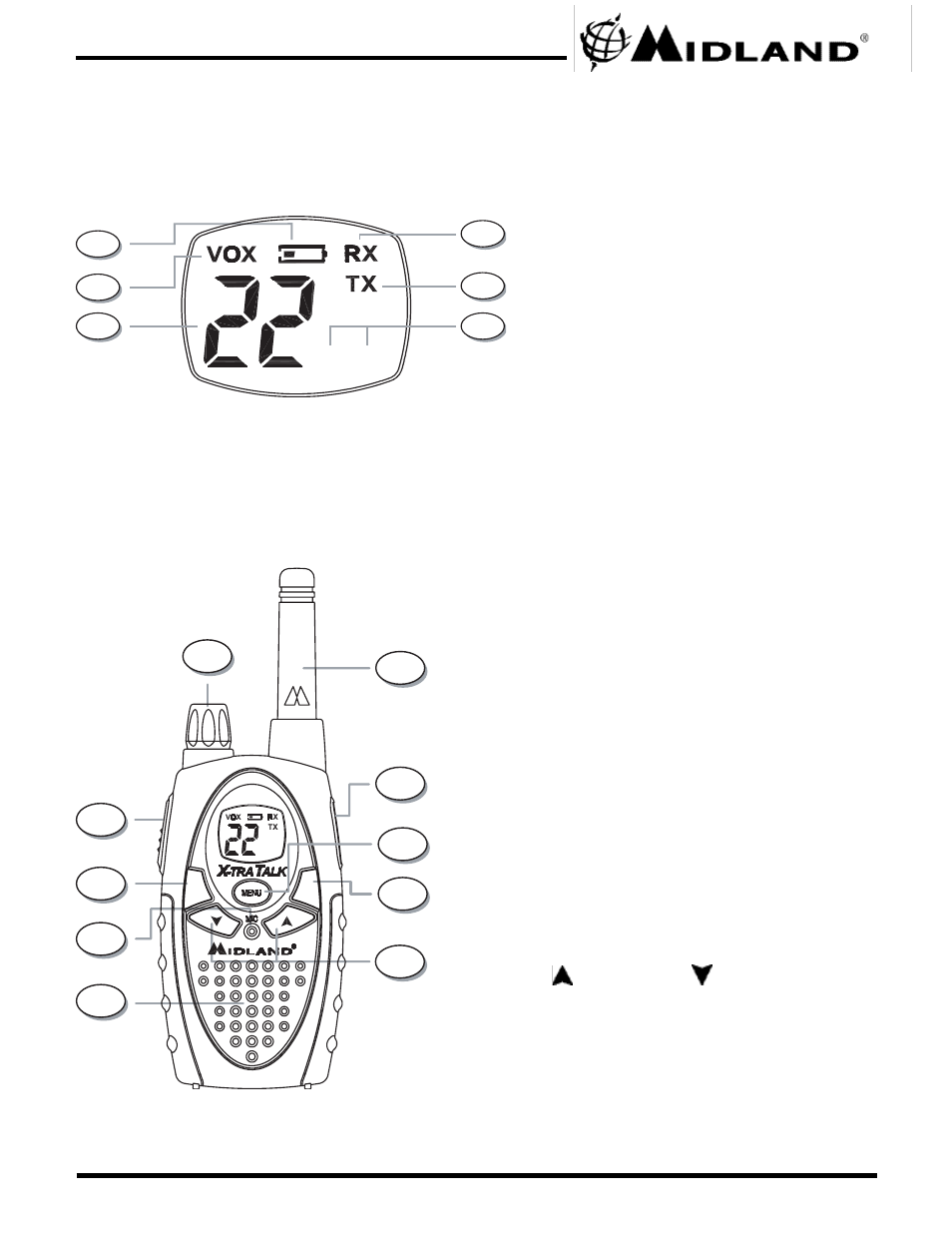

CONTROLS
HI LO
LCD DISPLAY
1. LOW BATTERY ICON – Indicates the
battery level is low.
2. eVOX – Indicates when eVOX mode is
active.
3. CHANNEL NUMBER – Changes from
1~22 on GMRS/FRS band .
4. RECEIVE (RX) ICON – Indicates radio
is receiving a transmission.
5. TRANSMIT (TX) ICON – Indicates
radio is transmitting a signal.
6. TRANSMIT POWER LEVEL ICON –
Indicates TX Power setting (HI/LO).
7. POWER/VOLUME KNOB – Turn clock
wise to turn the power on and increase
the volume level. Turn counter-clockwise
to decrease the volume level and turn
the power off.
8. PTT Button – Press and hold to transmit
voice communication.
9. TX POWER HI/LO Button – Press to
toggle between HI and LO TX Power
setting.
10. MIC – Built-in microphone.
11. SPEAKER – Built-in speaker.
12. ANTENNA.
13. EXTERNAL SPEAKER/MIC JACK.
14. MENU Button – Press to access Menu
mode.
15. eVOX Button – Press to activate
/ deactivate the eVOX function.
16. UP and DOWN Button – Make
adjustments in MENU mode.
1
2
3
4
5
6
7
8
9
10
11
16
15
14
13
12
