SECTION 4 − OPERATION

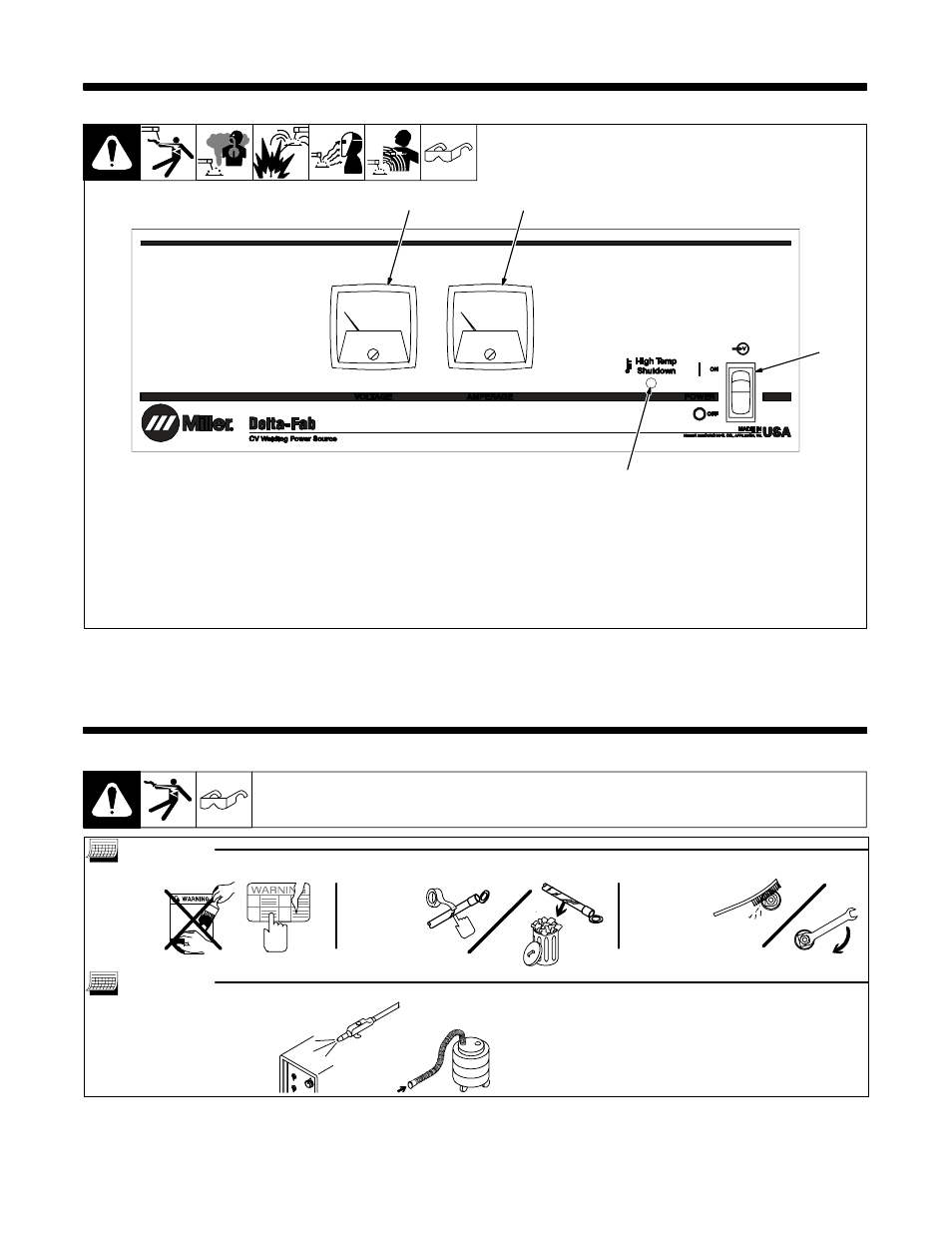

4-1.
Controls
209 383
3
1
Voltage Meter
2
Amperage Meter
Voltmeter and ammeter display actual output
voltage and amperage.
3
Power Switch With Indicator Light
4
High Temperature Shutdown Light
Y
Weld output studs are energized by
controls on the wirefeeder.
Y
Turn Off power before connecting re-
mote device.
4
1
2
SECTION 5 − MAINTENANCE & TROUBLESHOOTING
5-1.
Routine Maintenance
Y
Disconnect input power before maintaining.
3 Months
Replace
unreadable
labels.
Clean and
tighten weld
terminals.
Repair or
replace
cracked
weld
cable.
6 Months
Blow out or vacuum inside.
During heavy service, clean
monthly
Or
