Appliance dimensions 26, Appliance dimensions – Miele DA 5100 D User Manual
Page 26

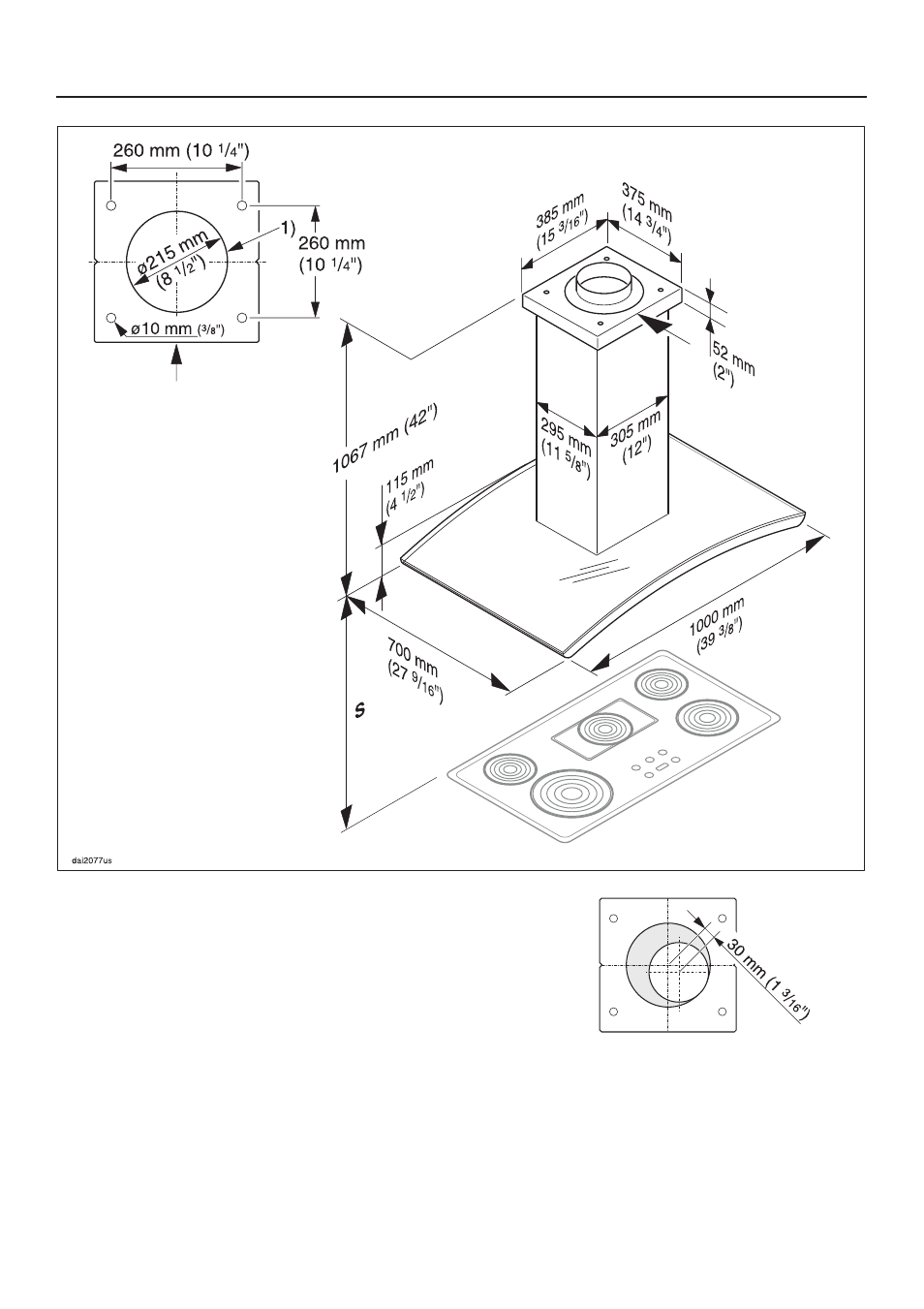

Exhaust connection 6" (150 mm)
diameter
1) Opening for ductwork and power
cord
The exhaust connection in the ceiling plate
is not secured in the center. This makes
installation possible if the connection in the
ceiling is not centered above the cooktop.
A max. variance of 1
3
/
16
" (30 mm) in any
direction is possible.
Appliance dimensions
26
