MTD 510r - Manual (Page 3)

Issued 7/02

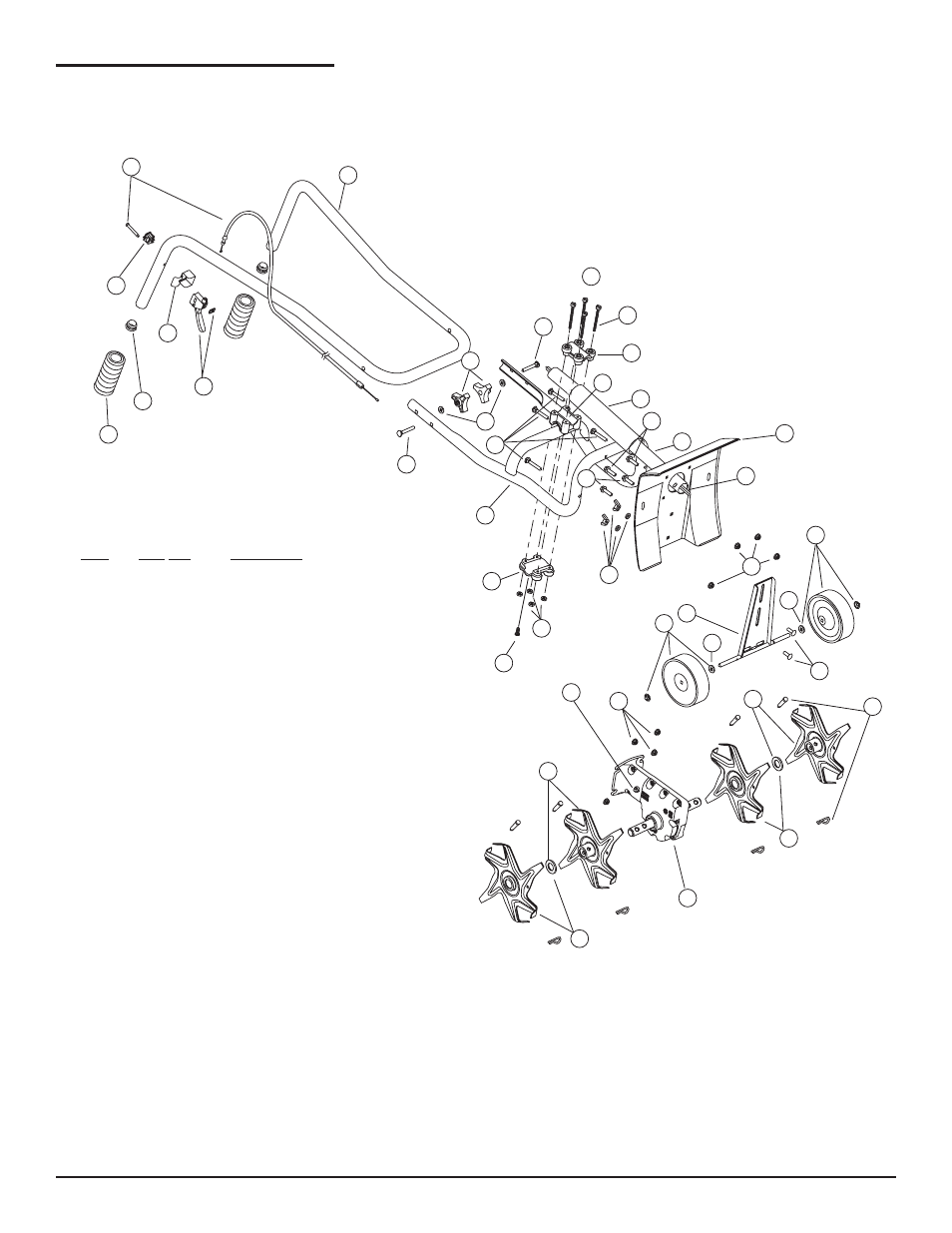

BOOM AND CULTIVATOR PARTS - MODEL 510r
4-CYCLE GAS CULTIVATOR
PPN- 21BK515G034
1
1
3
2
5
9
18
14
10
28
27
26
25
14
29
30
13
11
12
31
31
32
30
8
9
7
4
6
Item Part No. Description
1 791-00024 Throttle Trigger and Cable Assembly
(includes2 & 3)
2 791-182672 Switch Bracket
3 791-182673 Ignition Switch
4 791-00025 Upper Handlebar Assembly (includes 5 & 6)
5 791-182675 Grip
6 791-182676 Tube Closure
7 791-182677 Handlebar Knob
8 791-182678 Washer
9 791-182899 Bolt
10 791-00026 Lower Handlebar Assembly
11 791-182681 Handlebar Mounting Hardware
12 791-182682 Gearbox Mounting Hardware
13 791-182683 Guard
14 791-182684 Wheel Bracket Mounting Hardware
15 791-683295 Handle Bracket Assembly (includes 16-21)
16 791-181811 Screw
17 791-181812 Upper Handle Clamp
18 791-181813 Middle Handle Clamp
19 791-181814 Lower Handle Clamp
20 791-181815 Nut
21 791-145569 Anti-Rotation Screw
22 791-181575 Grip
23 753-04161 Drive Shaft Housing Assembly
24 791-181577 Flexible Drive Shaft
25 791-182687 Wheel Bracket Assembly
26 791-182216 Wheel Spacer
27 791-180944 Wheel Assembly (includes 26)
28 791-180288 Sleeve Retainer Bolt
29 791-147473 Tine Fastener Assembly
30 791-182729 Tine Assembly (Left Outer or Right Inner)
31 791-182730 Tine Assembly (Left Inner or Right Outer)
32 791-147474 Gear Box Assembly
11
15
16
21
19
20
22
23
24
27
12
12
17
26
