Connecting Hubs or Other Devices
To make a hub-to-hub connection, do the following:
1. Make sure you have the proper cables:
¥ Use UTP-3, 4, 5 (Unshielded Twisted-Pair) cables or better for
10BASE-T connections
¥ Use UTP-5 or STP-1 cables for 100BASE-TX connections.
2. Connect UTP Cable to the uplink port of the Hub, then to a regular port on
the Dual-Speed Stackable Hub (FDH-608 or FDH-616).

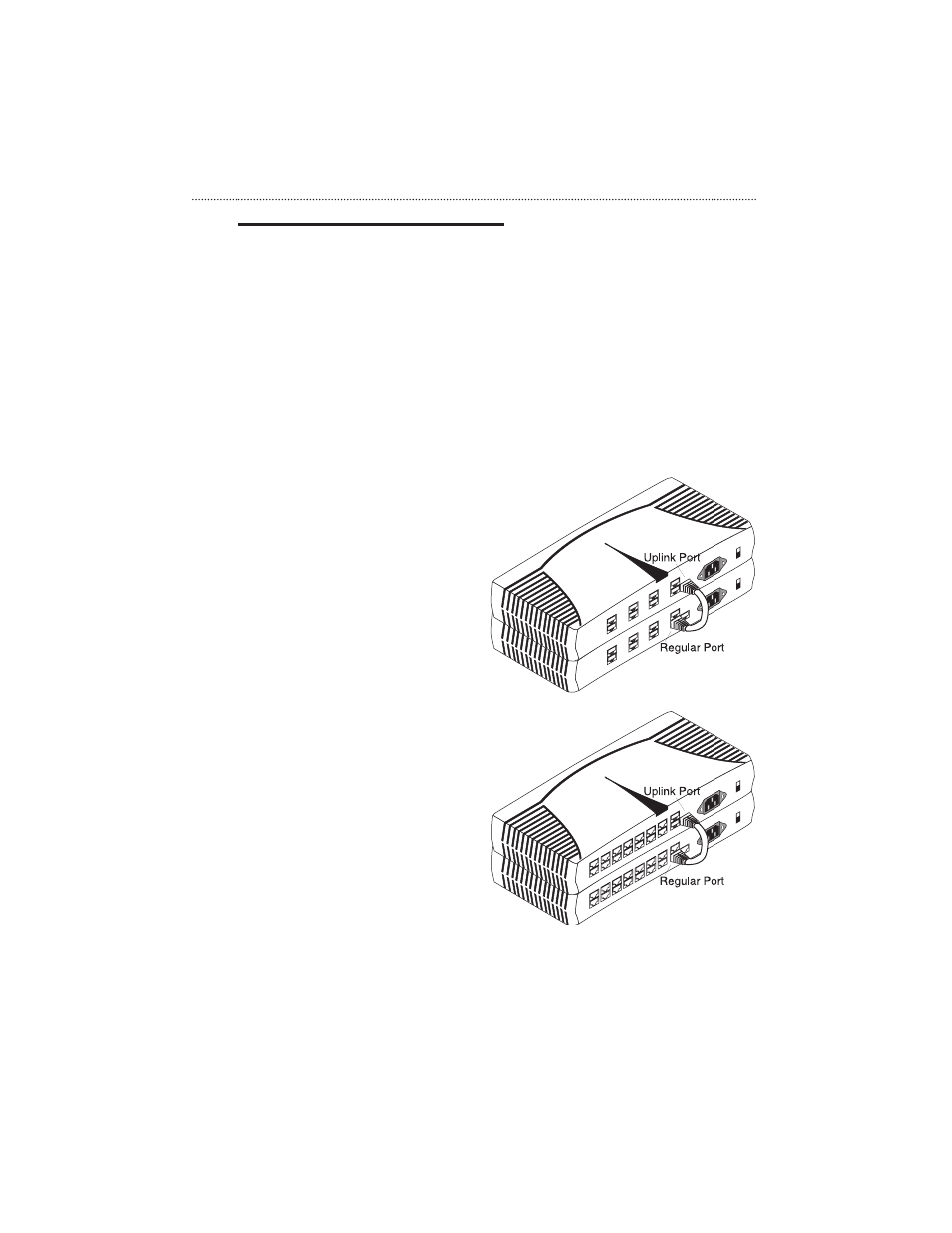

The figure below illustrates an example of an expanded network segment.
Installing a Dual-Speed Hub
15
This is an example of uplinking
FDH-608 to FDH-608.
This is an example of uplinking
FDH-616 to FDH-616.
