360 Exterior lamps
Technical
data
Instruments
and controls
Operation Driving
Instrument
cluster display
Practical hints Car care Index

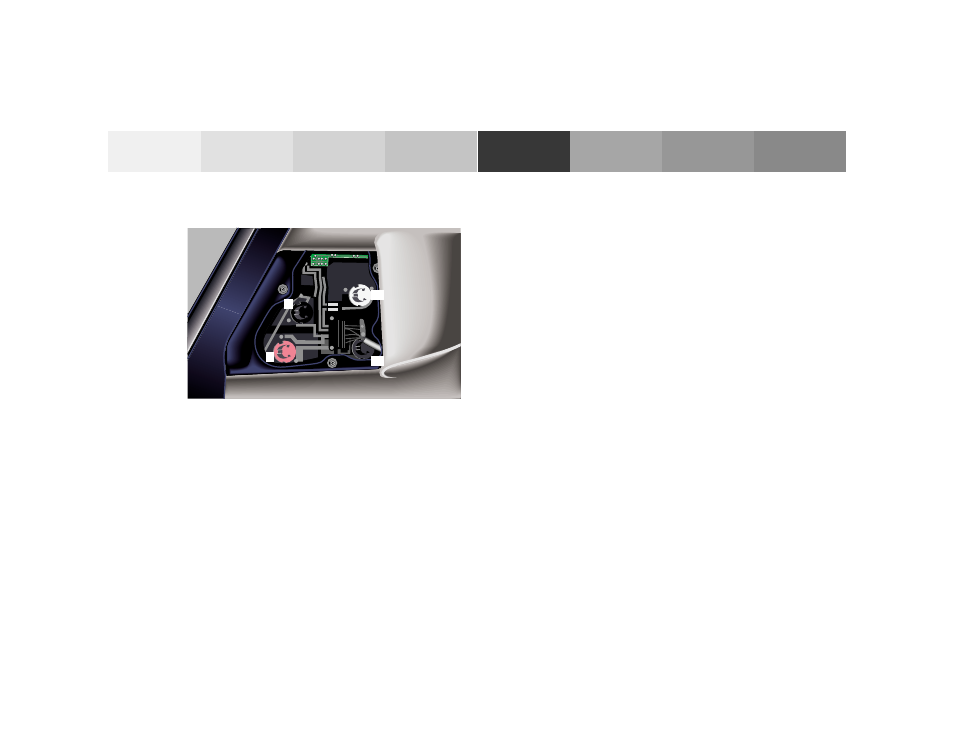

Taillamp assemblies
Open trunk lid.
Fold trim to the side.
Twist bulb socket counterclockwise and pull out. Push
bulb into socket, turn counterclockwise and remove.
Insert new bulb in socket, push in and twist clockwise.
Reinstall bulb socket.
Reinstall trim.
8 Black socket:
Backup lamp (21 W /32 cp bulb)
9 Red socket
Driver’s side:
Taillamp/parking lamp/rear fog lamp
(P 21/ 4W bulb)
passenger-side:
Taillamp/parking lamp (P 21/4W bulb)
10 Grey socket:
Taillamp/parking lamp/standing lamp/ side marker
(R 5W / 4 cp bulb)
11 White socket:
Turn signal lamp (1156 NA bulb [yellow])
P82.10-0917-26
9
8
11
10
