Miller Electric 8RC - Manual

Wire Feeder with
Remote Control
Issued Sept. 2007 • Index No. M/6.5
Processes
MIG (GMAW)
Flux Cored (FCAW)
Input Power 24 VAC, 7 A/10 A
Weight 8RC: 22.0 lb (9.9 kg)
12RC: 25.5 lb (11.6 kg)
Industrial Applications
Shipbuilding
Construction
Heavy Manufacturing
Rental
Quick
Specs
Wire feeder is warranted for 3 years, parts and labor.

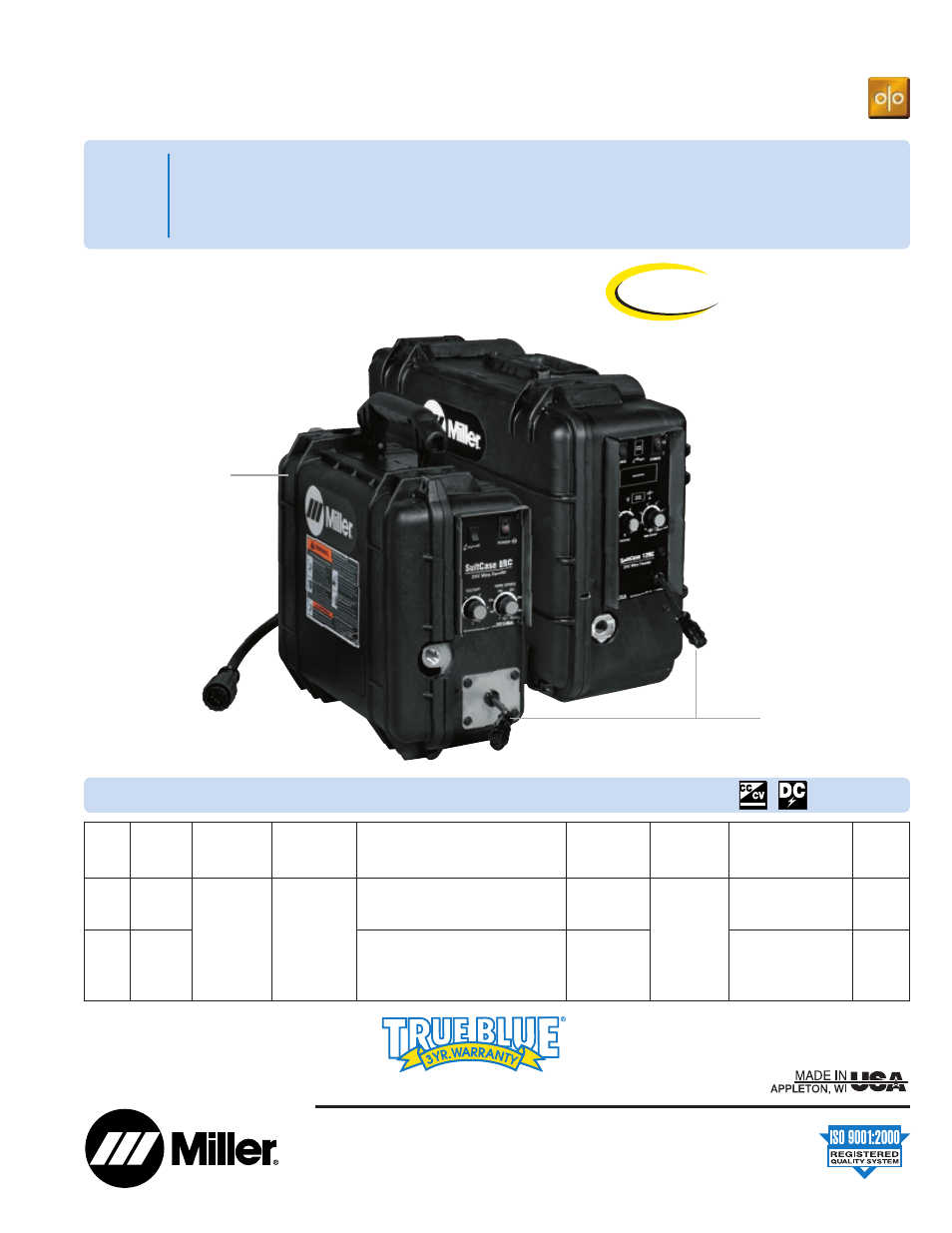

SuitCase
™
8RC and 12RC
Model
8RC
12RC
Wire Speed
75–700 IPM
(1.9–17.7
m/min)
Maximum
Spool Size
Capacity
8 in (203 mm)
14 lb (6.4 kg)
12 in
(305 mm)
Up to 44 lb
(20 kg)
Net
Weight
22 lb
(9.9 kg)
25.5 lb
(11.6 kg)
Dimensions
H: 14-1/2 in (368 mm)
W: 6-1/2 in (165 mm)
D: 15-5/8 in (397 mm)
H: 16 in (406 mm)
W: 7-1/4 in (184 mm)
D: 20 in (508 mm)
Input
Power
24 VAC,
7 A,
50/60 Hz
24 VAC,
10 A,
50/60 Hz
Electrode Wire Diameter Capacity
Solid Wire: .023– 5/64 in (0.6–2.0 mm)
Flux Cored: .030– 5/64 in (0.8–2.0 mm)
Solid Wire: .023– 5/64 in (0.6–2.0 mm)
Flux Cored: .030– 5/64 in (0.8–2.0 mm)
Welding
Power
Source Type
Constant
Voltage (CV)
Input Welding
Circuit Rating
500 A
at 100%
Duty Cycle
Miller Electric Mfg. Co.
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Web Site
www.MillerWelds.com
International Headquarters
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
The Power of Blue ® .
Standard gas solenoid
controlling gas flow.
Totally enclosed, impact-
resistant, flame-retardant
case provides strength
and durability, protecting
components and weld wire
from moisture, dust and
contaminants.
Remote voltage control — standard.
Quick-change
drive rolls are
easy to change —
no tools required.
Drive roll accessibility
makes it easy to install
wire, adjust tension and
change drive rolls.
Versatile feeders can
run wire diameters up to
5/64 in (2.0 mm).
Gas purge purges gas
line without feeding wire,
or energizing weld wire
with OCV.
Thermal overload
protection protects motor
and control circuit against
possible damage due to
overloading conditions,
or loose cable connections.
Digital meter option
available for wirefeed
speed or voltage display.
Improved trigger strain
relief
Component assembly
is easily removed for
servicing.
Specifications
(Subject to change without notice.)
Improved!
Updated front panels!
Improved trigger strain relief!
(Use with CC/CV,
DC Power Sources.)
