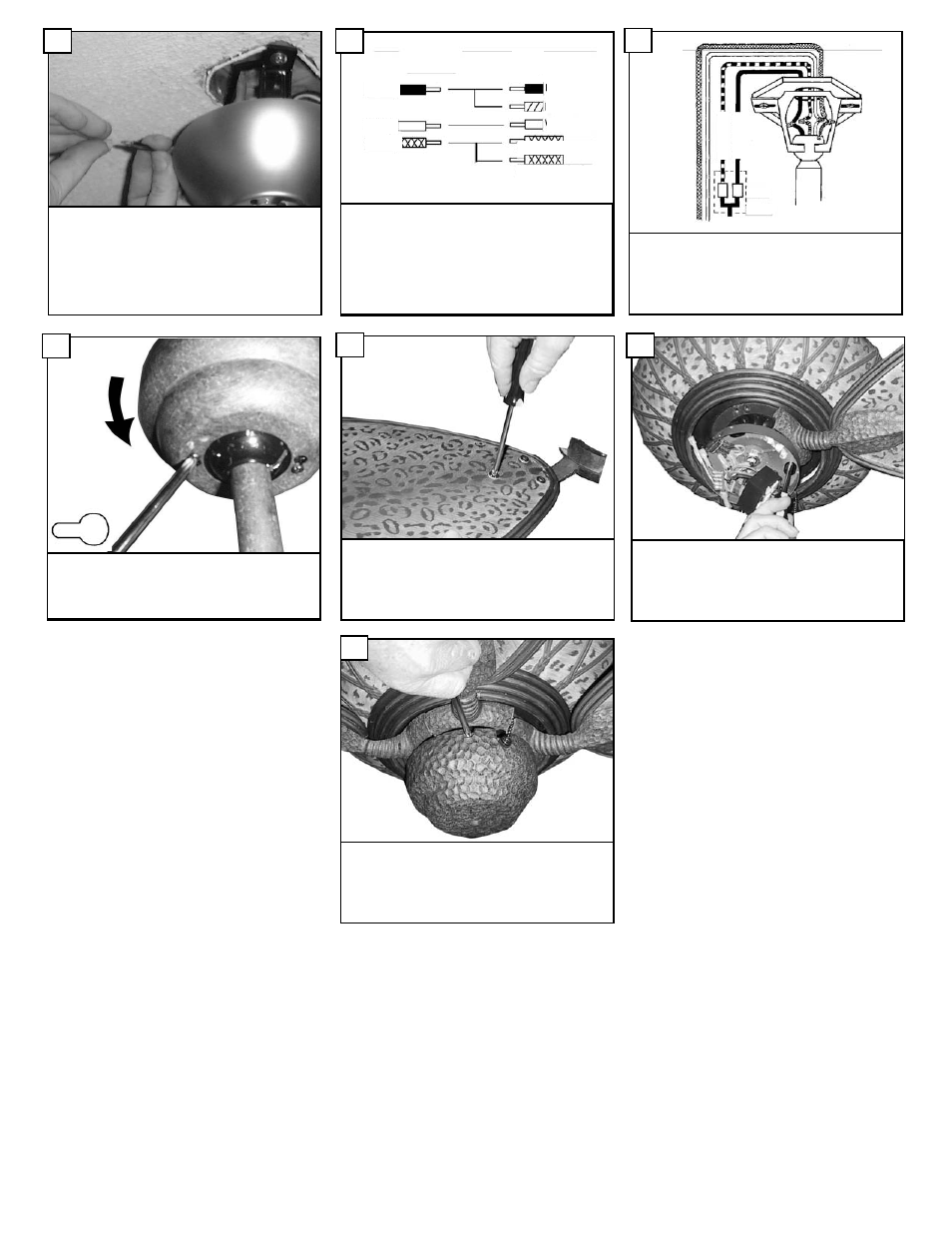

Place blade arms onto the other side of the
blade and aligning holes. Insert screws with
fabric washers through the holes and tighten
securely.
23
Check the motor for plastic shipping stabilizer
tabs, and remove them if they are present.
Attach blade assembly to motor by tighten
screws securely.
24
After attaching blades; install the switch hous-
ing with the three screws previously removed.
25
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
19
For pullchain controls, follow diagram above.
Make sure that all exposed wiring is secured
inside wire nuts. Note: Wires from house may
vary in color and may not include ground wire.
After wiring is complete, gently push wires into
junction box with wire nuts pointing upward.
Refer to point 3 of safety tips.
20
House Fan
Black
White
Green
Black
White
Green(downrod)
Green(Bracket)
Blue
For control of fan and optional light from wall
location, follow diagram above. NOTE: A profes-
sional electrician is recommended for this type
of installation.
21
Li
gh
t
Sw
it
ch
Fa
n
Sw
it
ch
Wall
Control
22
Lift Canopy to ceiling aligning the key hole slots
with the screws on the bottom of the Mounting
bracket. Rotate the canopy Counter Clockwise
to lock in place. Tighten the screws to secure
the Canopy. See inset for Keyhole shape
