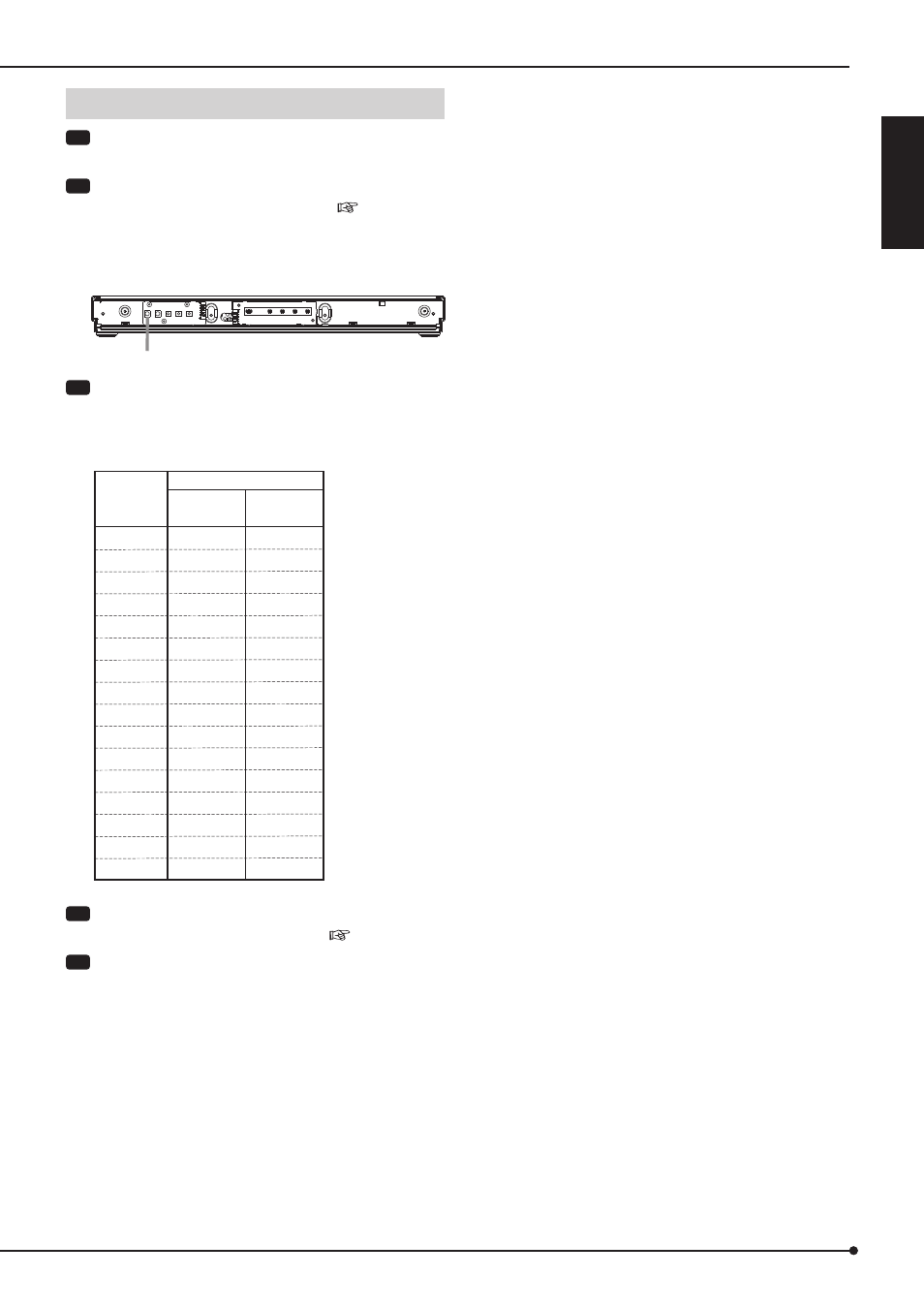

Setting the ID number of this unit
Step
1 Turn OFF the MAIN switch on the rear of this
unit.
Step
2 Remove the cover of this unit according to steps
1 to 3 of “Removing the HDD” on page 14.
• The ID number is set using the ID rotary switch
inside the cover.
ID rotary switch
Inside the front cover
Step
3 Set the ID rotary switch to the desired number.
• The ID number set in this step is displayed on the
digital recorder's menu screen that is used to register
the device.
ID
rotary switch
ID number
Spanning
operation
Mirroring
operation
ID00S
ID01S
ID02S
ID03S
ID04S
ID05S
ID06S
ID07S
ID08S
ID09S
ID10S
ID11S
ID12S
ID13S
ID14S
ID15S
ID00M
ID01M
ID02M
ID03M
ID04M
ID05M
ID06M
ID07M
ID08M
ID09M
ID10M
ID11M
ID12M
ID13M
ID14M
ID15M
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Step
4 Attach the cover of this unit according to steps 9
to 11 of “Attaching the HDD” on page 17.
Step
5 Turn ON the MAIN switch on the rear of this unit.
