95-7504 DASH DISASSEMBLY
MAZDA 3 2004-2009
A
CLOCK SET
LOAD
FM1/2
AM
CD
TAPE/M D
HOOK
B
REAR VIEW - DISPLAY TRIM PANEL
C
1
D isconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1

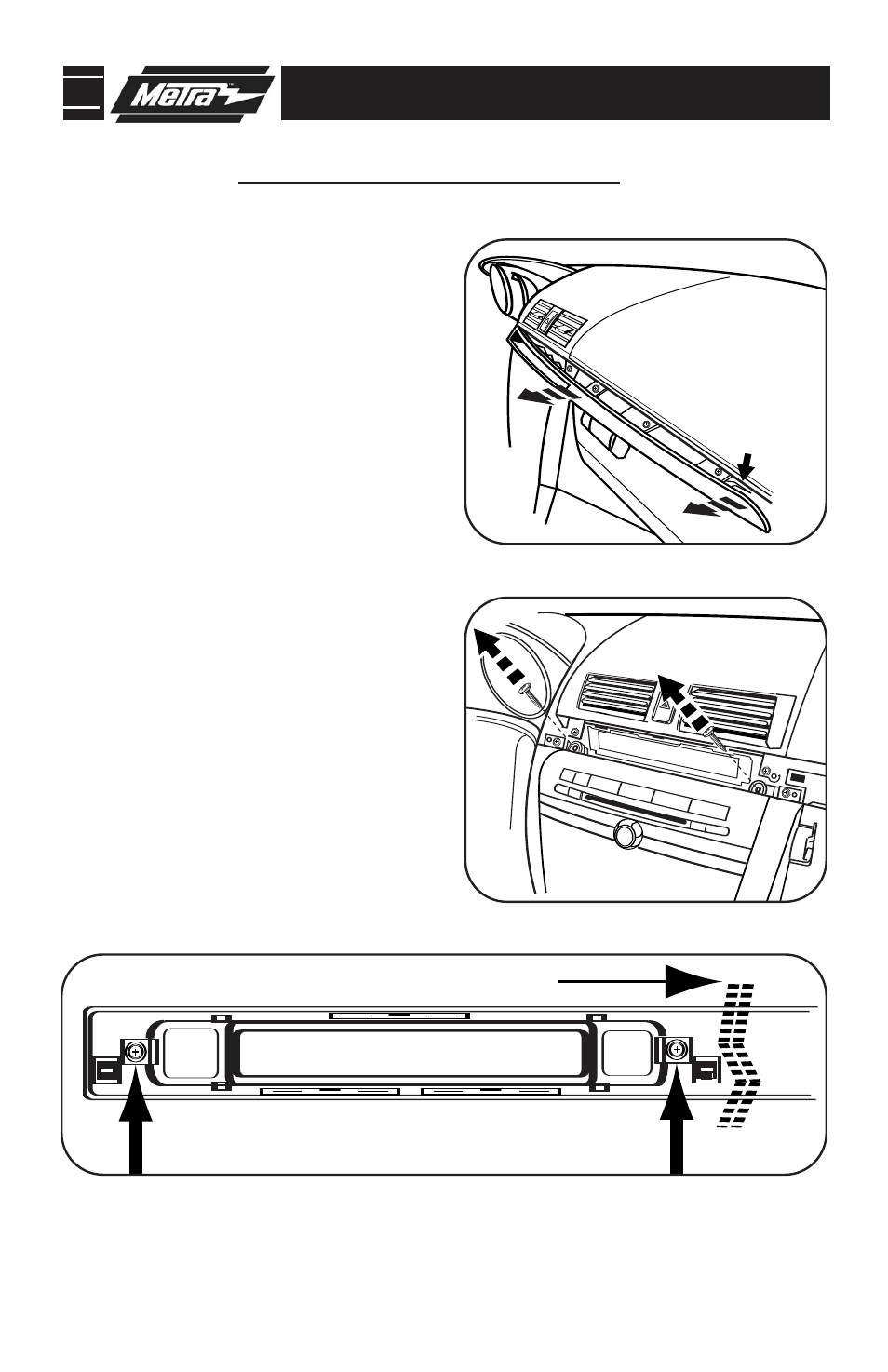

Unclip and remove display trim panel
above radio. Tip: Open glove box and
start in middle of panel working
towards drivers side first because last
connection on far passenger side is a
hook. (Figure A) 2
Remove (2) Phillips screws exposed
at top of radio then unclip and
remove radio. Note: Display is
attached to radio brackets and will be
removed at same time as radio.
(Figure B) 3
Remove (2) Phillips screws on back of
display trim panel securing display
trim then unclip and remove. (Figure C) 4
Continue to display/pocket assembly.
