Master Bilt ATMC-84DSS - Manual (Page 2)

NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
ATMC-D SERIES
AIR-THRU DUAL ACCESS MILK COOLERS
TECHNICAL SPECIFICATIONS
LISTINGS HOOKUP
BID SPECIFICATIONS
Item no. ATMC- _________DSS
Provide_______________( ) Air-Thru
Dual Access Milk Cooler(s), Master-Bilt
model no. ATMC-_______DSS.
Milk cooler to be constructed of stain-
less steel on both interior and exterior and
will be insulated with foamed-in-place
polyurethane. It will be equipped with
four swivel casters, two of which will be
locking. Epoxy-coated heavy-duty floor
1298-5/07-web
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
Via plug in, 8 foot long flexible
three wire 16/3 cord with molded
plug.
racks will also be standard as will an NSF-
listed drain and thermometer.
Doors to be insulated and will have
gaskets and chrome-plated hinges. In ad-
dition, doors will fold back and lock to
safely stay open during use and will fea-
ture key locks.
The refrigeration system will feature an
exclusive air-thru, self-contained design
and will have a condensate evaporator.
The system will be a modular type flush
mounted on side of cooler with all com-
ponents outside the milk storage compart-
ment. The refrigerant will be R-134a and the
operating temperature will be 38°F (3°C).
Cooler to have standard limited one year
compressor, 18 month labor and one year
limited parts warranty.
Cooler to be UL and C-UL listed and UL
EPH classified.
NEMA 5-15P
MODEL
DIMENSIONS
(in.)
DIMENSIONS
(mm)
VOLTS AMPS
UNIT
H.P.
NO. OF
FLOOR
RACKS
CAP.
CU. FT.
SHIP
CU. FT.
SHIP
WT.
(LB/KG) L D H* L D H*
ATMC-84DSS 47 34 1 /
8
37 1194 845 940 115 7.1 1/3 2 13.0 43.3 250/114
ATMC-124DSS 61 34 1 /
8
37 1549 845 940 115 7.1 1/3 3 19.9 55.1 300/136
ATMC-164DSS 75 34 1 /
8
37 1905 845 940 115 7.1 1/3 4 25.6 67.1 350/159
*Height includes casters.

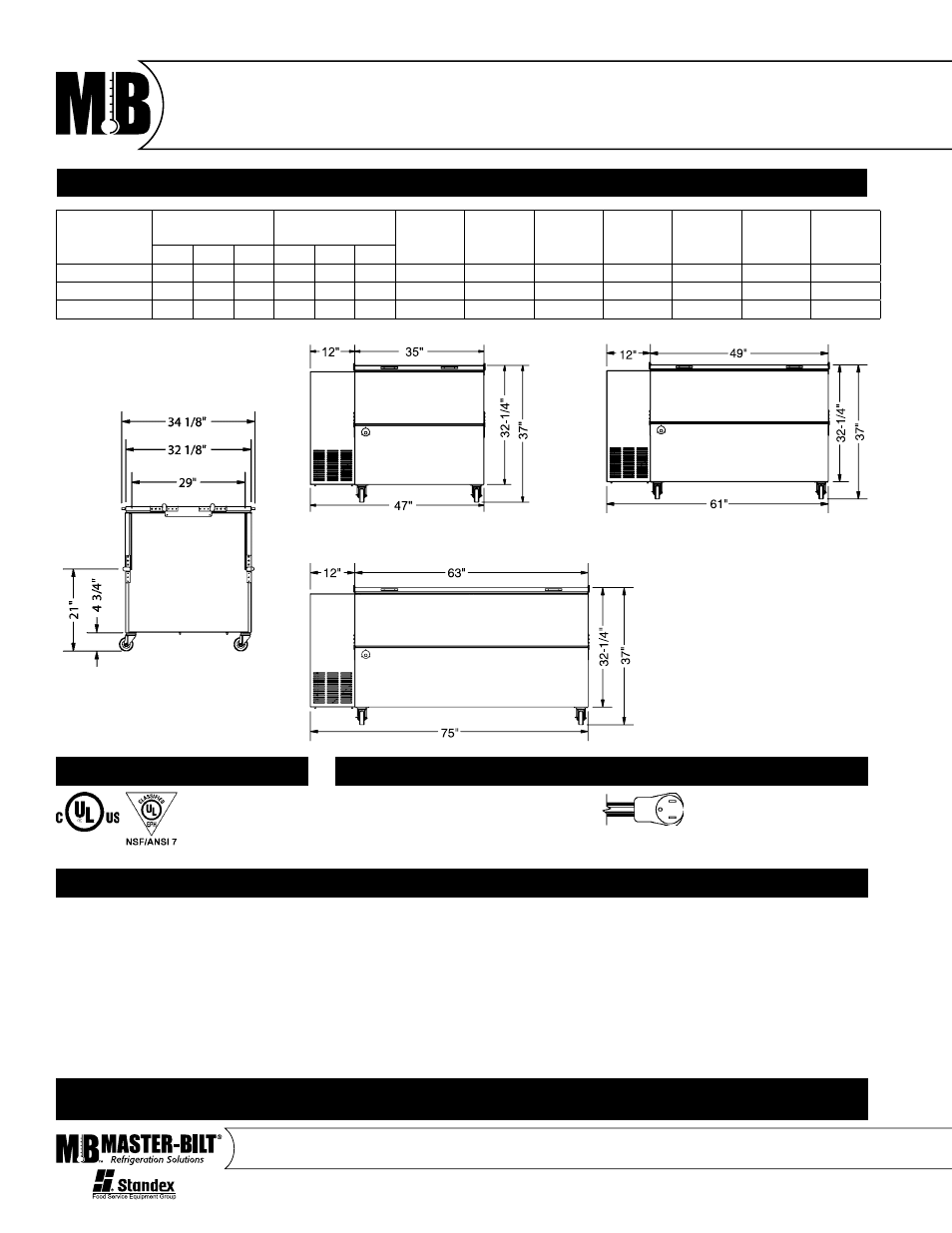

SIDE VIEW - ALL
ATMC-82D ELEVATION VIEW ATMC-122D ELEVATION VIEW
ATMC-162D ELEVATION VIEW
