53
S CANNER AND C ABLE T ERMINATIONS

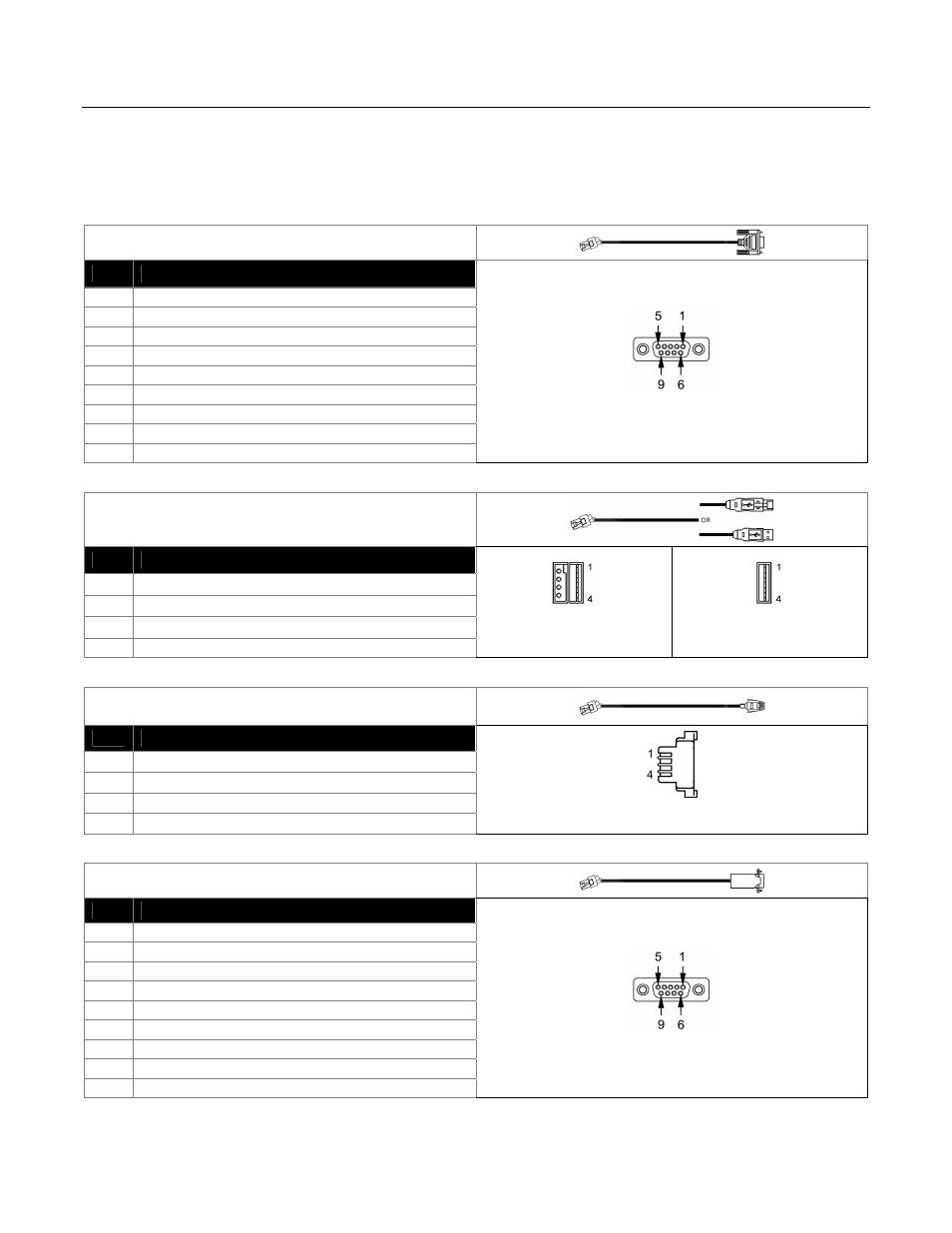

C ABLE C ONNECTOR C ONFIGURATIONS
The following cables are examples of some of the standard cables that may be shipped with the StratosH scanner.
Please keep in mind that every application is unique and the cables received with the StratosH may be custom cables that are
not shown below.
RS232 Interface Cable, MLPN 57-57000 x-N-3
Pin Function **
1 Shield Ground
2 RS232 TX Output
3 RS232 RX Input
4 DTR Input
5 Signal Ground
6 No Connect
7 CTS Input
8 RTS Output
9 No Connect
9-Pin D-Type Connector
Full Speed USB Cable,
MLPN 57-57200 x-N-3 OR
MLPN 57-57006 x-N-3
Pin Function **
1 PC+5V USB
2 Data -
3 Data +
4 Signal Ground
Locking, Type A
57-57200 x-N-3
Non-Locking, Type A
57-57006 x-N-3
RS485 S Cable, MLPN 57-57004 x-N-3
Pin Function **
1 Signal Ground
2 IBM A+
3 IBM B-
4 No Connect
4-Pin SDL
OCIA Cable, MLPN 57-57015 x-N-3
Pin Function **
1 Shield Ground
2 R Data
3 R Data Return
4 Clock Out
5 Signal Ground
6 Clock In Return
7 Clock Out Return
8 Clock In
9 No Connect
9-Pin D-Type Connector
S Applicable for IBM ® Host applications
** All signals referenced from the StratosH scanner. Specifications are subject to change without notice.
