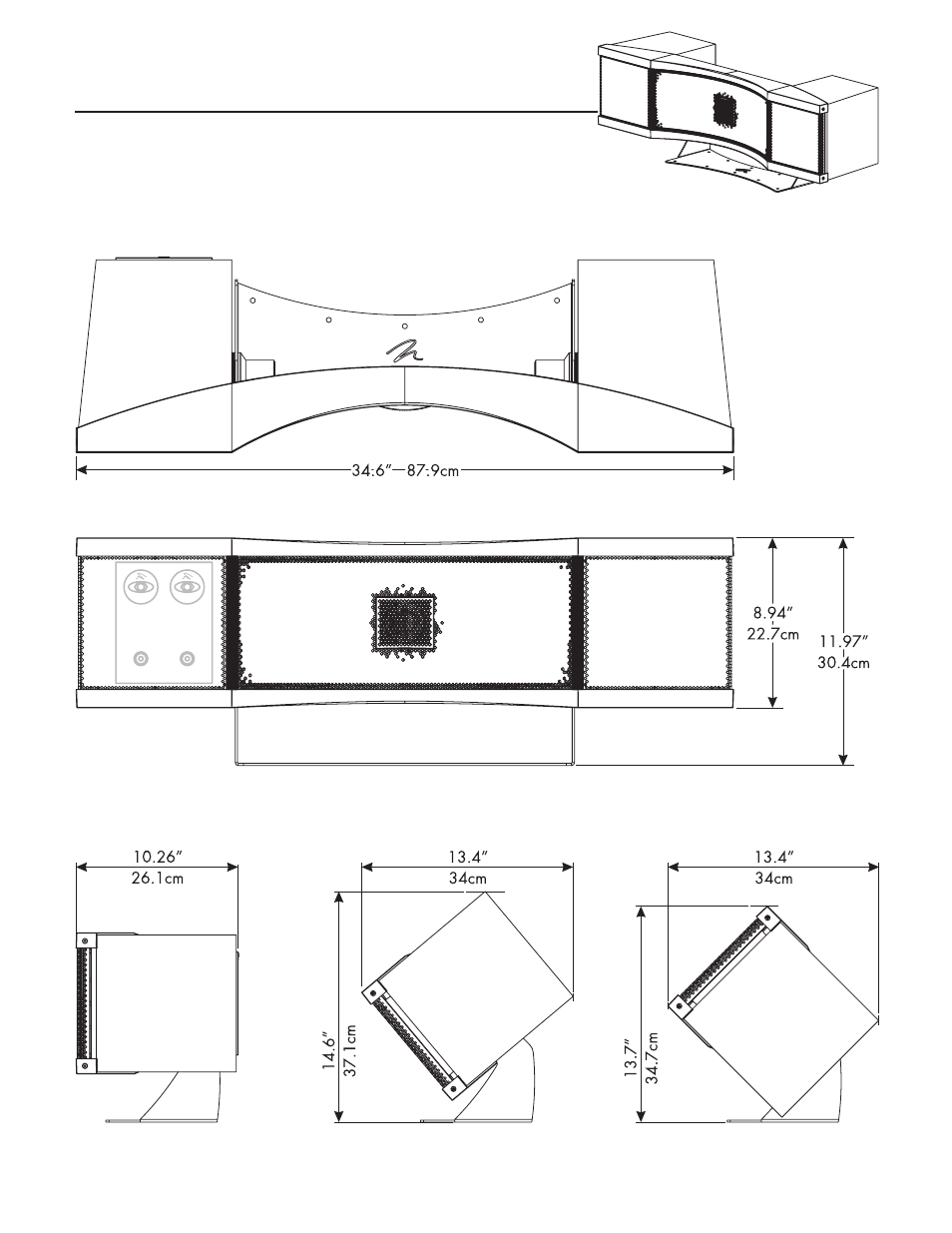

Dimensions: No Rotation
Max. Dimensions: Rotated Down
Max. Dimensions: Rotated Up
D
IMENSIONAL
D
RAWINGS
22 Dimensional Drawings
Plan View (Top)
Front Elevation
(no stand/bracket rotation)
Side Elevation
Dimensions: On Stand (stand/bracket beneath speaker)
AC &
Signal
