SECTION 4 - MAINTENANCE
V. KEY SPARE PARTS KIT - Available separately. See Figure 4-11.
1 1 36939 Kit, Digital Temperature Controller
2 1 27384-0008 Motor, Conveyor Drive
3 2 22450-0052 Brushes, Drive Motor
4 1 37337 Kit, Conveyor Speed Controller
5 1 27170-0263 Assembly, Pickup, Conveyor Drive
6 1 33984 Kit, Thermocouple
7 1 97525 Fan, Cooling
8 1 27381-0069 Motor, Blower, 1 HP
9 1 39530 Air Switch
10 1 35825 Kit, Ignition Module
11 1 38811 Assembly, Burner Blower/Motor
12 1 41647 Valve, Modulating Gas, 1/2"
13 1 31651 Amplifier, Modulating Valve
14 1 33983 High limit control module, 240V
Item Qty. Part No. Description Item Qty. Part No. Description

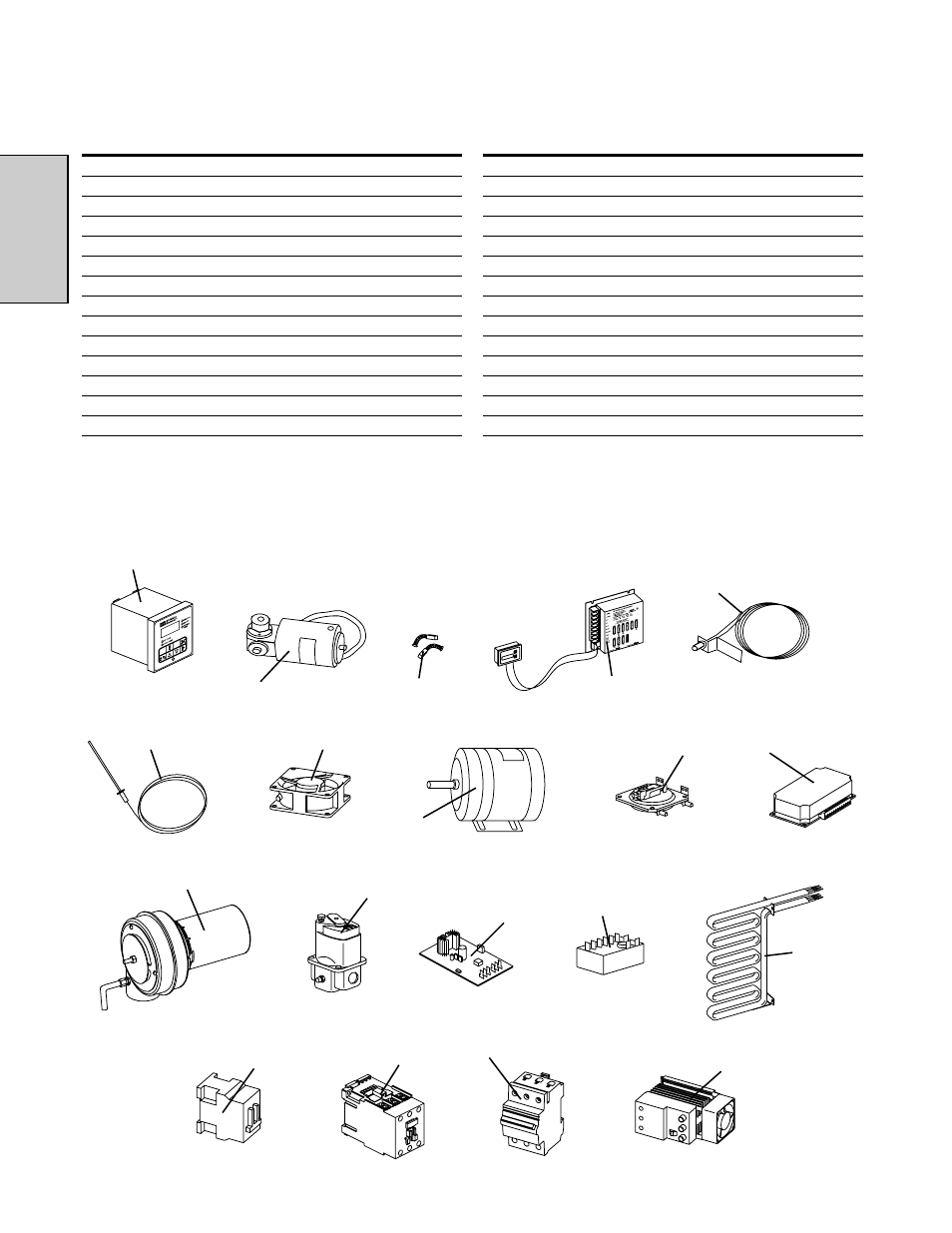

Fig. 4-11 - Key Spare Parts Kit
1
1 1 36939 Kit, Digital Temperature Controller
2 1 27384-0008 Motor, Conveyor Drive
3 2 22450-0052 Brushes, Drive Motor
4 1 37337 Kit, Conveyor Speed Controller
5 1 27170-0263 Assembly, Pickup, Conveyor Drive
6 1 33984 Kit, Thermocouple
7 1 97525 Fan, Cooling
8 1 27381-0069 Motor, Blower, 1 HP
14 1 33983 High limit control module, 240V
15 1 44526 Heating element, 380V
16 1 28041-0008 Contactor
17 1 44549 Contactor
18 1 35018 Circuit breaker block, 3-pole, 50A
19 1 44568 Controller
A. Gas Ovens B. Electric Ovens
2 3 4
5
6 7
8
9 10
11
12
13
14
15
16 17
18
19
