a 3 protective shields
to prevent scratches to the chimney
during installation.
b 1 vent collar
for use with 6" (150 mm) exhaust
ducting.
b 1 reducing collar
for use with 5" (125 mm) exhaust
ducting.
d Telescopic retaining plate to
secure the ventilation hood to the
wall.
e Installation kit for recirculation
mode
contains diverter, hose and hose
clips (optional accessory).

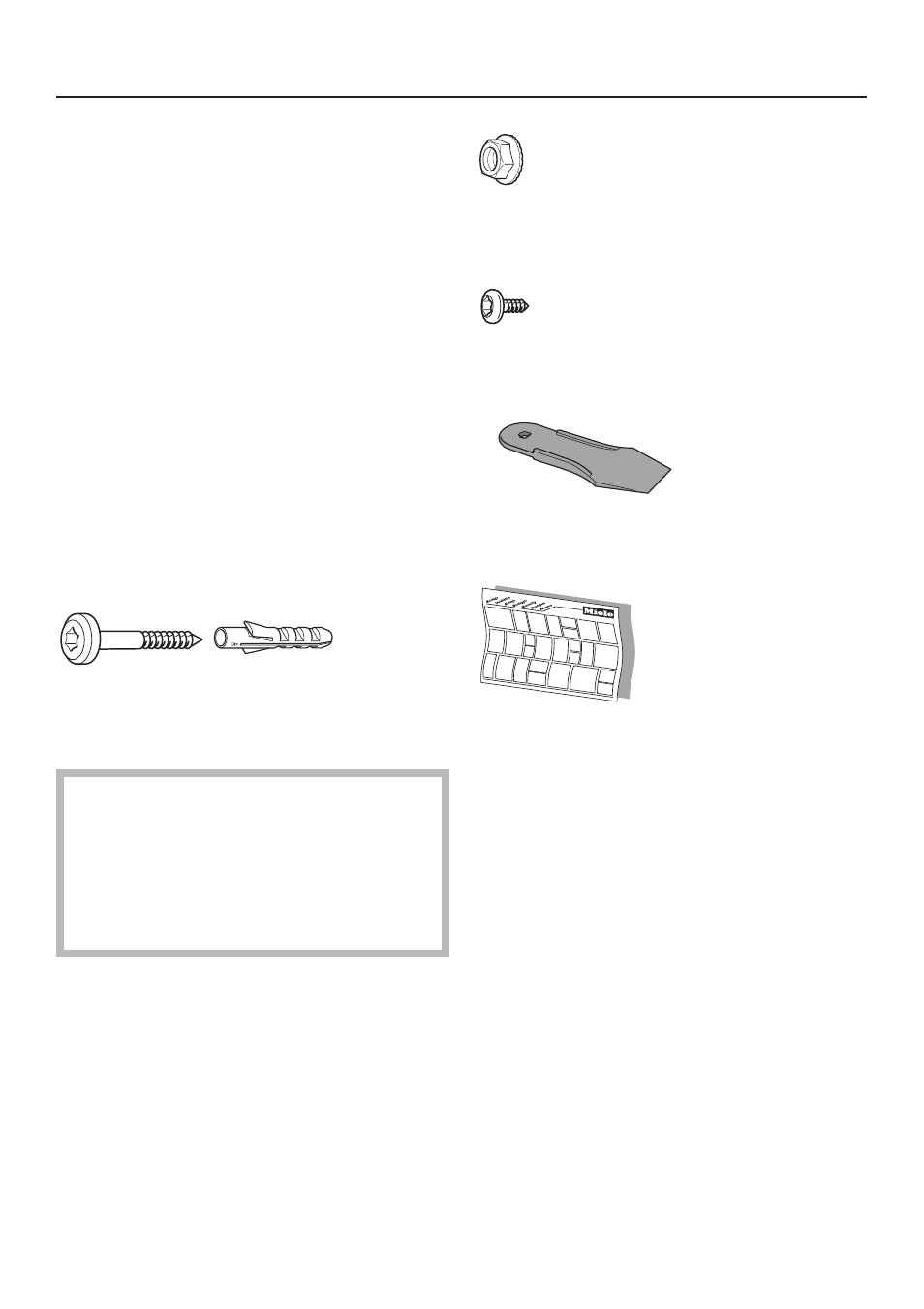

6 Screws 5 x 40 mm
(S8 wall anchors included in the
packaging are not for use in USA / CDN)
The screws and wall anchors are
suitable for solid brick walls.
For other wall constructions, use
appropriate materials.
Ensure that the wall can support the
weight.
2 M 6 locking nuts
for securing the motor assembly.
2 Screws 3.9 x 7.5 mm
for securing the chimney.
1 Lever
for dismantling the chimney.
