ST-1 Mini-Conveyor Toaster Operations Manual
3
INSTALLATION INSTRUCTIONS
Install the ST-1 in the most convenient location for ease of cleaning, maintenance and general operation. Avoid
installing in locations with drafts, close proximity to grease or vapor-producing appliances or other high ambient
heat equipment. Allow approximately 1” clearance on sides and back of unit for proper air circulation. Allow
sufficient overhead clearance for proper heat dissipation. This toaster must be level for proper operation and
comes equipped with 1” adjustable legs for this purpose.
Before operating this unit, be sure that the following two components are properly installed:
1. The reflector tray is installed below the lower heating elements before shipping. It merely slides under the
conveyor. NOTE: Proper toasting cannot be performed without reflector tray installed.
2. The toast receiving tray is packaged separately and must be installed before operating this unit. For front
delivery position, slide the receiving tray into the toaster cavity below the control panel, making sure the
lipped end is towards the back. Place the lipped end over the two (2) protruding pins located at the rear of
the toaster cavity. For rear delivery position, slide the receiving tray into the cavity from the back of the
toaster and place the lipped end over the 2 protruding pins closest to the front of the toaster (See Figure 1).
ELECTRICAL SPECIFICATIONS
Voltage
(Volts AC)
Amperage
(Amps)
Max. Power
(KW)
Frequency
(HZ)
Phase
Cord
(Attached)
Plug
(Attached)
120
14.8
1.7
50/60
1
3’
NEMA 5-15P
208
12.5
2.4
50/60
1
3’
NEMA 6-15P
220
9.6
2.1
50/60
1
3’
NEMA 6-15P
240
10.4
2.4
50/60
1
3’
NEMA 6-15P
*220
9.6
2.1
50/60
1
3’
None
*240
10.4
2.4
50/60
1
3’
None
The circuit on which the receptacle is installed must be of adequate wiring size and sufficient capacity to meet the requirements
indicated on the unit data plate and in accordance with the National Electrical Code and local electrical installation codes. * The
220V electrical information in the shaded area pertains to European models. The 240V electrical information in the shaded area
pertains to United Kingdom models.

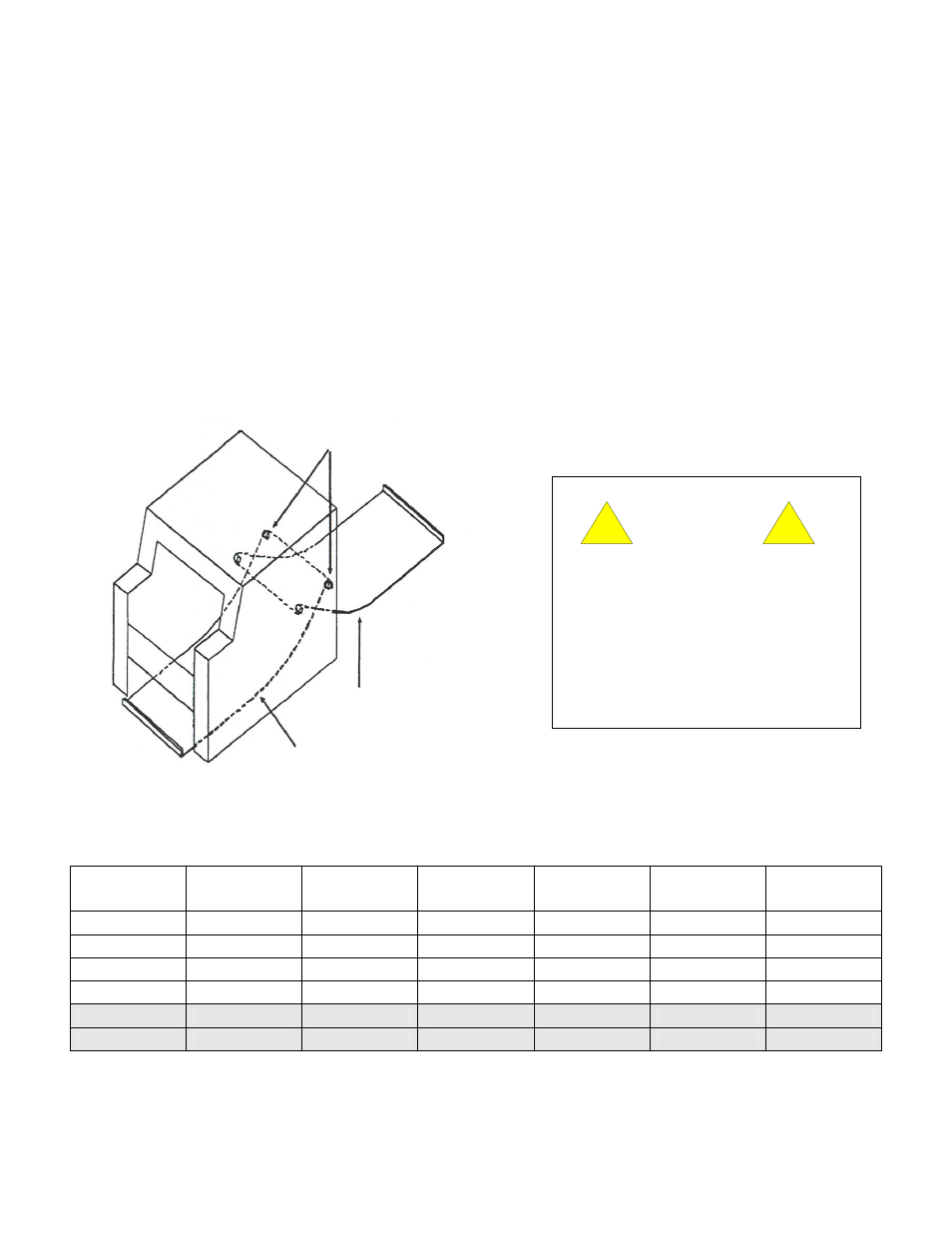

Use these two mounting pins
for front delivery position.
Toast receiving tray in
rear delivery position.
Toast receiving tray in
front delivery position.
This toaster must be plugged into the
proper voltage which is specified on
the data plate located on the back
panel of the toaster. Use of any
other voltage or altering of plug will
damage unit, void warranty and may
cause injury.
!
WARNING
!
