A308 CR Pre Instructions for Use Page 4 of 9
Issue 3: July 2002

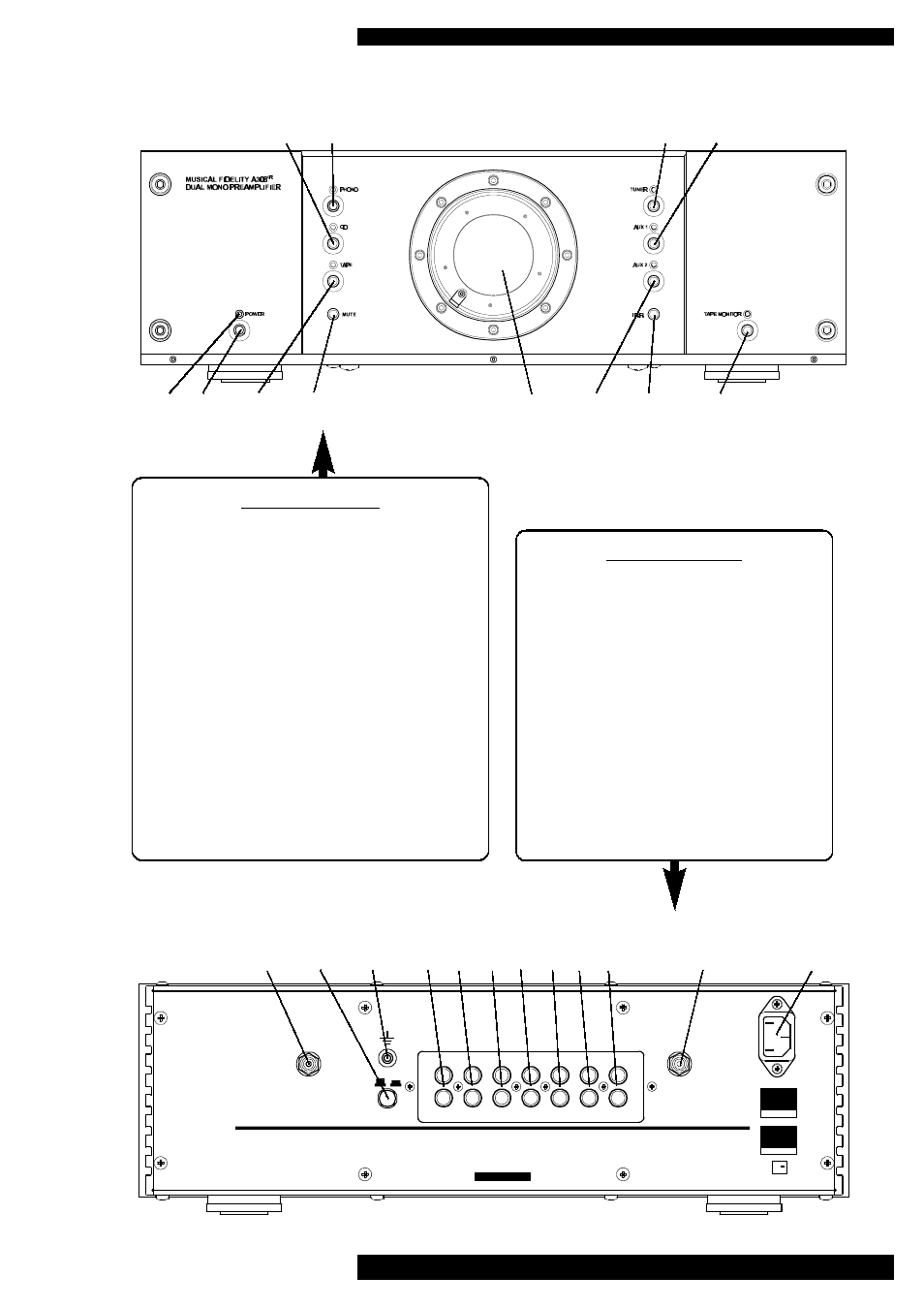

CONNECTIONS AND FACILITIES
MUSICAL FIDELITY
A308 DUAL MONO PREAMPLIFIER C R
MANUFACTURED IN ENGLAND BY MUSICAL FIDELITY
POWER
CONSUMPTION
20W
THIS APPLIANCE
MUST BE
EARTHED
IMPORTANT
50/60Hz
CAUTION
MOUNT UNIT ON SOLID SURFACE.
DO NOT REMOVE SCREWS OR COVERS
UNDER ANY CIRCUMSTANCES.
NO USER SERVICEABLE COMPONENTS INSIDE.
REFER SERVICING TO QUALIFIED ENGINEER.
SEE OWNERS MANUAL FOR FURTHER INFORMATION.
CC
MM MC
RIGHT OUTPUT LEFT OUTPUT PHONO CD TUNER AUX 1 AUX 2 TAPE TAPE REC
13 14 15 16 17 18 19 20 21 22 23 24
Front panel layout
1 Power on indicator LED ( blue )
2 POWER on/off switch
3 TAPE input select button and LED
4 Mute LED
5 CD input select button and LED
6 PHONO input select button and LED
7 TUNER input select button and LED
8 AUXILIARY 1 input select button
and LED
9 Volume control knob and LEDs
10 AUXILIARY 2 input select button
and LED
11
Infra-Red Receiver
12 TAPE MONITOR button and LED
Back panel layout
13 RIGHT output
14 Phono MM/MC selection switch
15 Phono earth connection
16 PHONO input
17 CD input
18 TUNER input
19 AUXILIARY 1 input
20 AUXILIARY 2 input
21 TAPE input
22 TAPE RECORD output
23 LEFT output
24 IEC mains inlet
1 2 3 4 9 10 11 12
5 6 7 8
