12 mount and connect the MOTONAV device

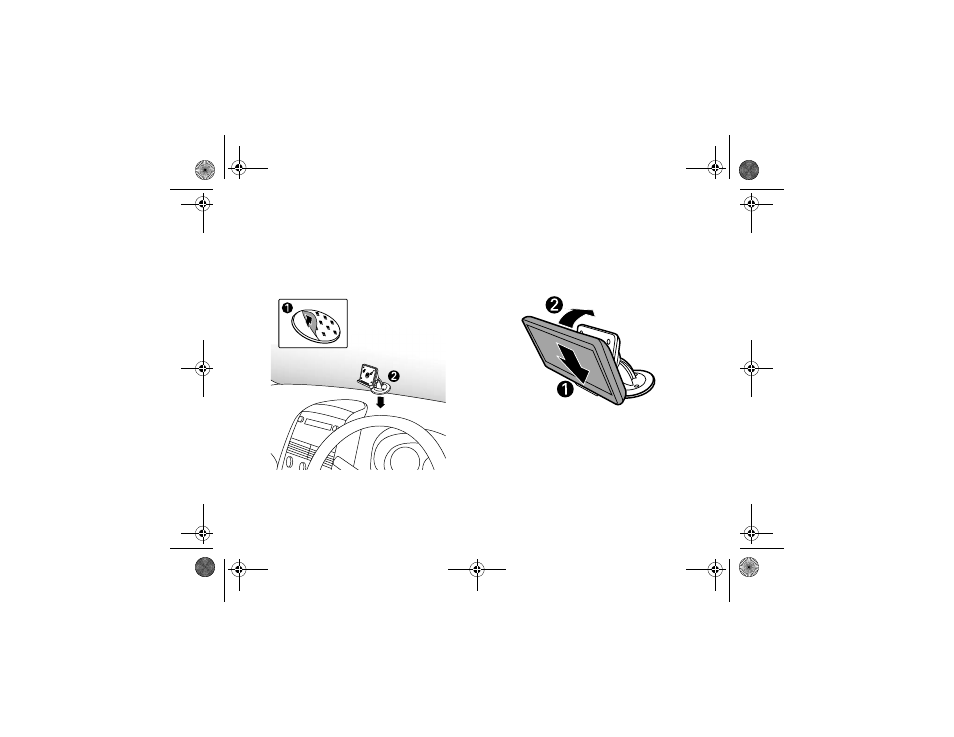

7 Peel tape from bottom of mounting arm and
attach to vehicle’s dashboard.
Note: Adhesive works best if it is left to cure
(without the constant weight of the MOTONAV
device) for about 24 hours.
8 Adjust the cradle orientation and then tighten the
mount using the wing nut on the back of the
cradle.
9 Seat MOTONAV device on the pins at the bottom
of the cradle.
10 Rotate the device back onto the cradle. Listen for
a small click when it latches.
