6A1 ENGINE (E - W) - Rocker Cover and Camshaft
11A-10-6
(5) Screw in the other adjusting screw until it comes into
contact with the valve (when the turning torque changes),
and then tighten the lock nut.
(6) Loosen the adjusting screw that was screwed in first
slightly (until the turning torque becomes almost zero).
Screw in the adjusting screw until it comes into contact
with the valve again (when the turning torque changes)
and tighten the lock nut.
(7) Remove the thickness gauge.

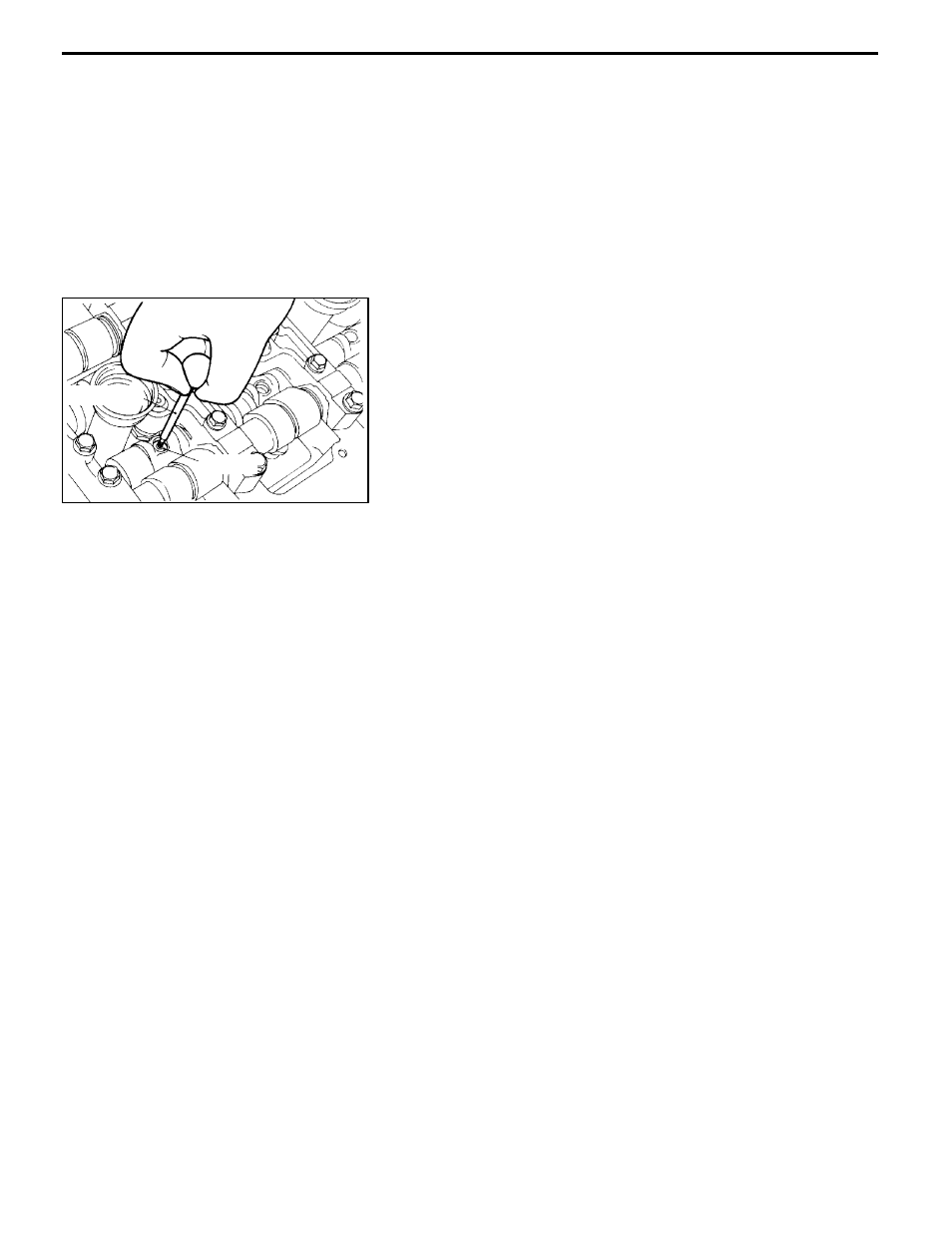

(8) Screw the special tool into the top of piston of the rocker
arm “H”, and pull up the tool to make sure that the piston
can be lifted smoothly by hand.
(9) Perform valve clearance adjustments for other cylinders
by turning every time the crankshaft through 120° (60°
in camshaft sprocket angle) and following the above steps
(2) through (8). Perform the adjustments in the following
order of cylinder number:
No. 2 ® No. 3 ® No. 4 ® No. 5 ® No. 6
PWEE9622
E
Feb. 1997 Mitsubishi Motors Corporation
6AE0286
Piston
MB991479
